Video Switch Multiplexer PCB - 4 Camera - DISCONTINUED

  • Video Switch Multiplexer PCB - 4 Camera - DISCONTINUED

Features and Specifications

  • Input Voltage: 7.5V - 20V*
  • Channels: 4 inputs to 1 output
  • Communication: TTL

NOTE: A shorting resistor can be attached to power the module from a 5V source.

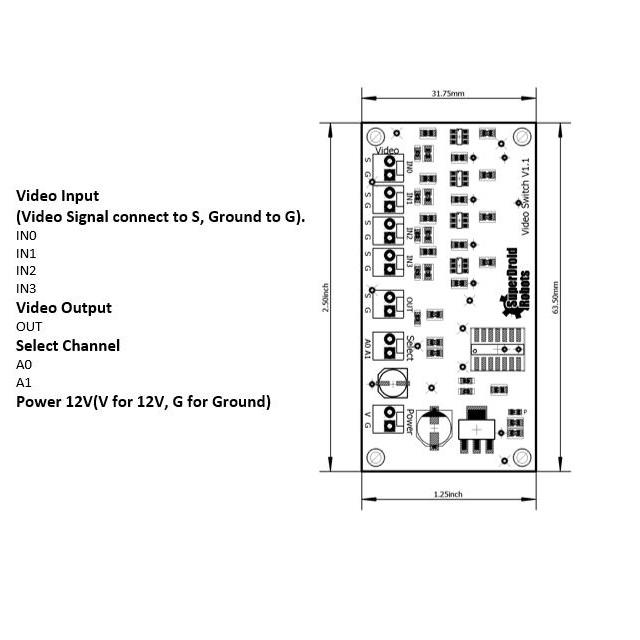

This video mux PCB module is based on Maxim Integrated's MAX4311 video mux. The module accepts up to four video inputs and can toggle between them using two 5V TTL signals.


Video Switch Multiplexer PCB - 4 Camera - DISCONTINUED

This product is unavailable.

Contact us if you have any questions.
