- Chassis: Custom Aluminum chassis made of 3/16" thick aluminum. Cut on our CNC Plasma and welded together to house all the components including the mount for the included snow plow
- Motors: (Qty 6) IG90 24VDC 127 RPM Gear Motor
- Axles: Chain coupled axles for greater off-road capability.
- Lighting: High power 80W head lights for maximum visibility.
- Batteries (Motors): (Qty 2) 12v 55 amp hour batteries in series for 24 volts. There is space for an additional 2 batteries for double the run time and more weight for traction, etc.
- Motor Controller: Sabertooth Dual 60A motor driver
- Remote Control: Spektrum DSMX DX6i Transmitter and Spektrum R9020 9-Channel DSMX X-Plus Receiver (Fail Safe)
Wheels, Shafts and Bearings:
- (Qty 6) 13" inch tiller tires
- (Qty 6) Custom steel shafts 1 inch in diameter
- (Qty 6) pillow block 1 inch ball bearings
- Snow Plow Attachment: 52" wide snowplow blade mounted to the front of the robot with an air cylinder for remotely lifting and lowering the blade. Tilt is manual, contact us if you want that to be remote too.
- 24 Volt Coil
- 12 Volt Coil
- (Qty 2) Battery Chargers
- BattleSwitch Radio Controlled 10A Relay
- Air Solenoid Valve
- Air compressor
- Pressure Switch, Air Fittings and tubing, valves, etc.
- Air Tank
Dimensions and weight:
- Weight: 393lbs
- Dimensions: 38 1/2" Wide (outside wheel to outside wheel) x 16" Tall x 63 1/2" Long (including blade)
- Dimensions (Snow Blade): 52" x 16"
This robot is built and ready to go but if you would like to customize it please Contact Us.
We can add additional batteries, chains for the wheels, cameras; we can even make it Wi-Fi so you can control it over the internet. It can be customized to include any features that you want.
- This robot is pre-built, please allow 1-2 business days to prep the robot for shipment.
- This item requires freight shipping. Freight shipping is not calculated by our shopping cart. We will contact you after placing the order to go over your options or you may Contact Us for a quote.
- Contact us if you need expedited delivery.
Sorry, this prebuilt robot has been sold! We have had lots of interest in this. Please contact us to get your's ordered for next winter! We can build it many different ways, smaller, stronger, faster, slower, etc. We can put a snowblower on it, etc. Less expensive, or more features, we can do that too! We specialize in custom robots and will be glad to work with you. We do everything from design, metal cutting, welding, fabrication, etc here in our NC USA facility.

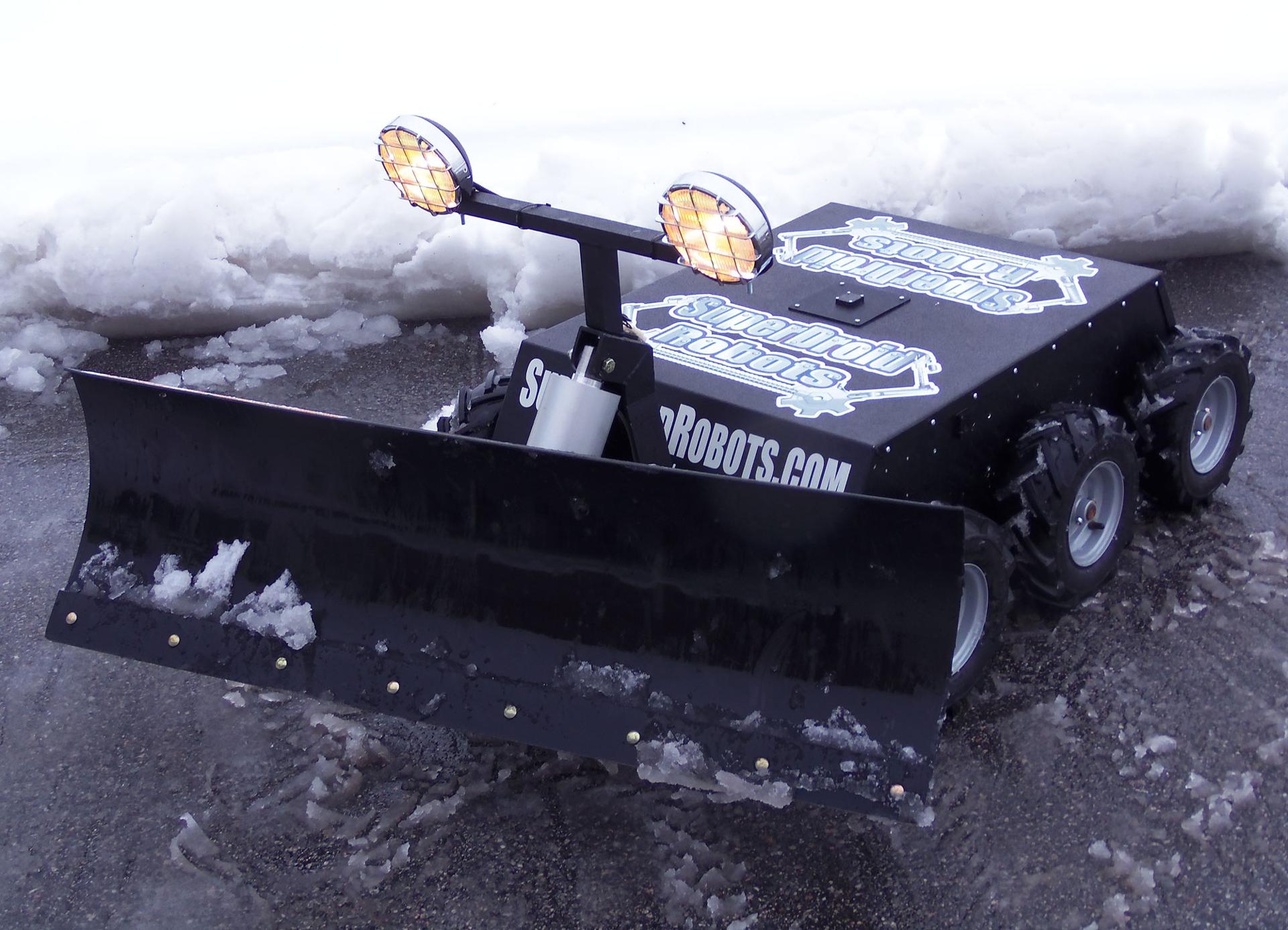

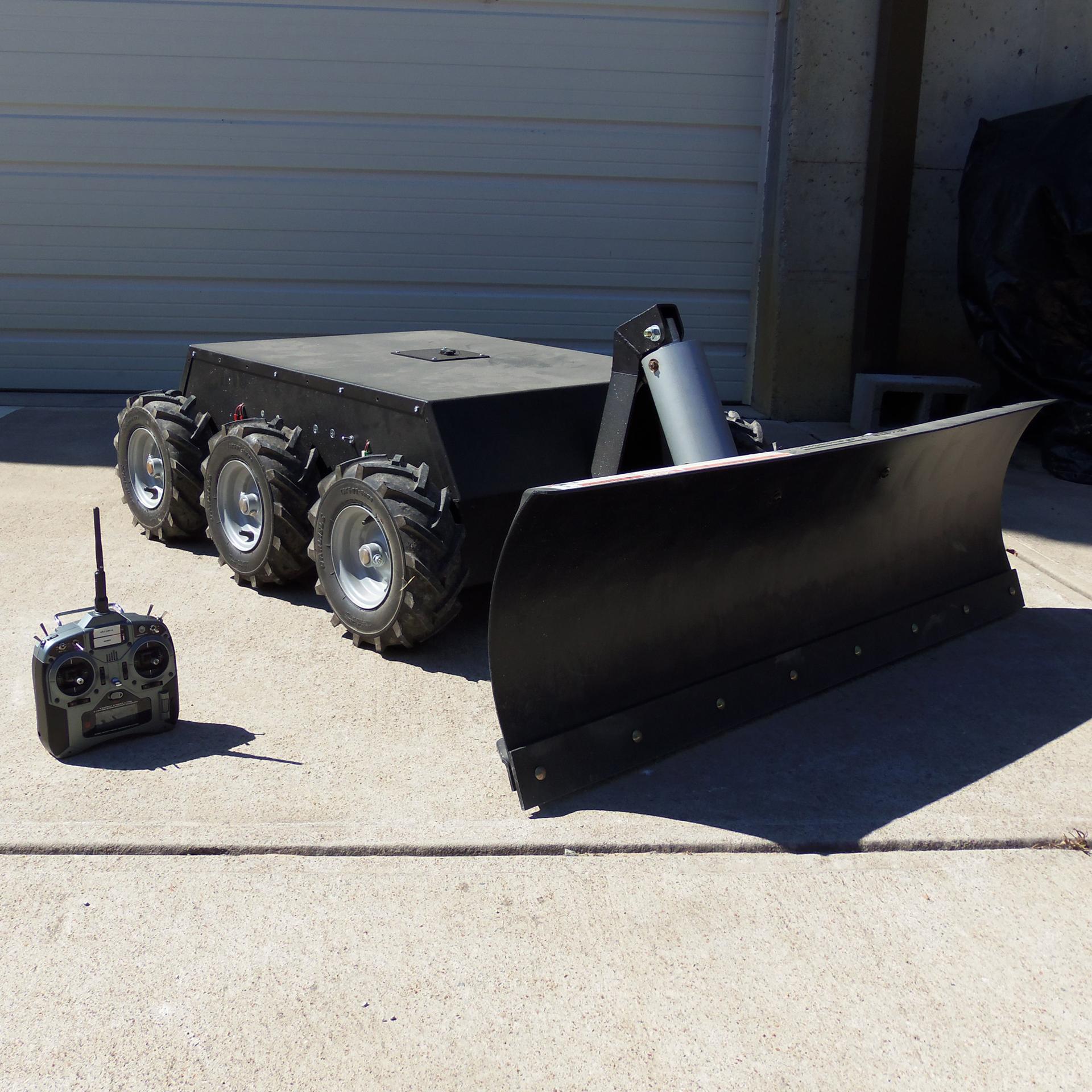

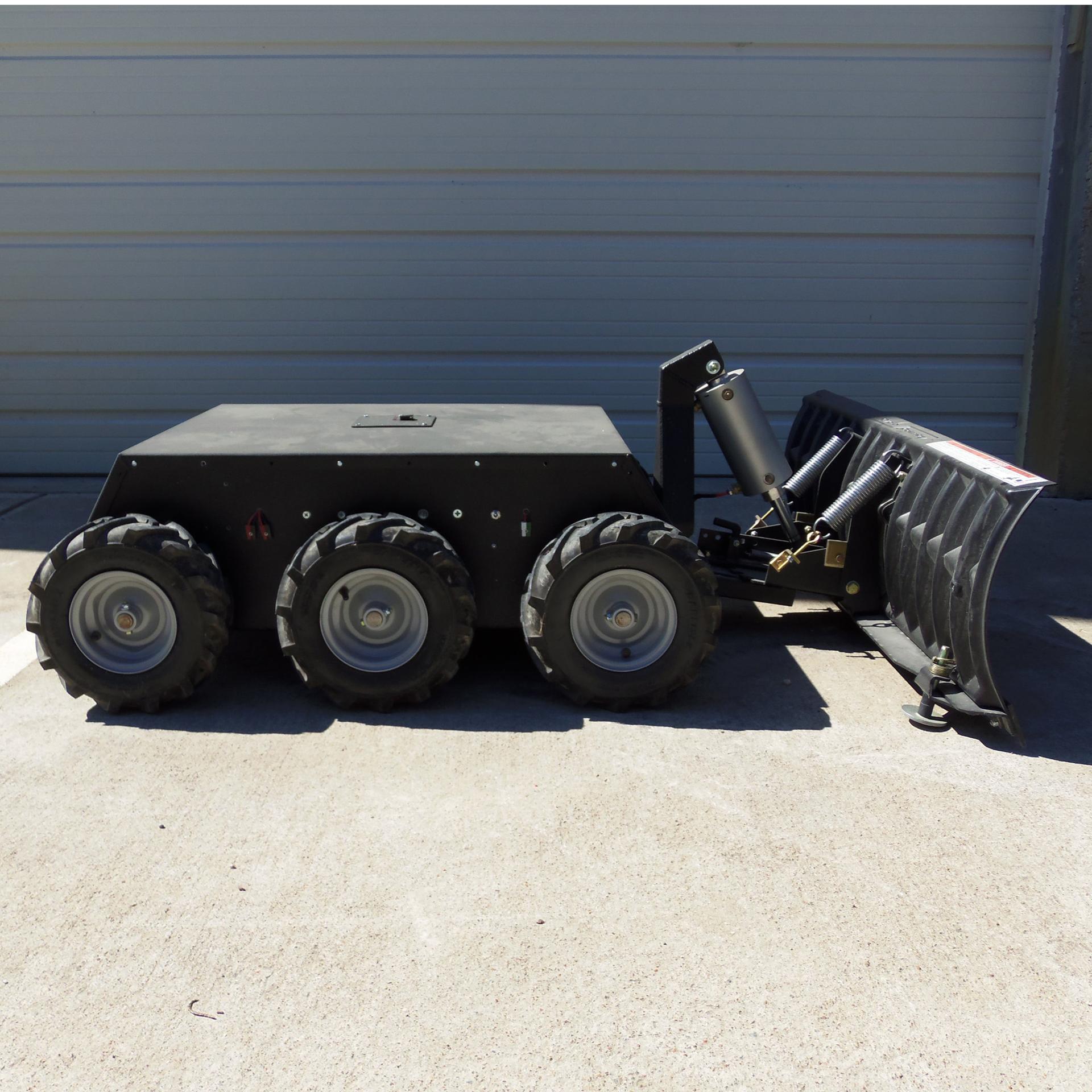

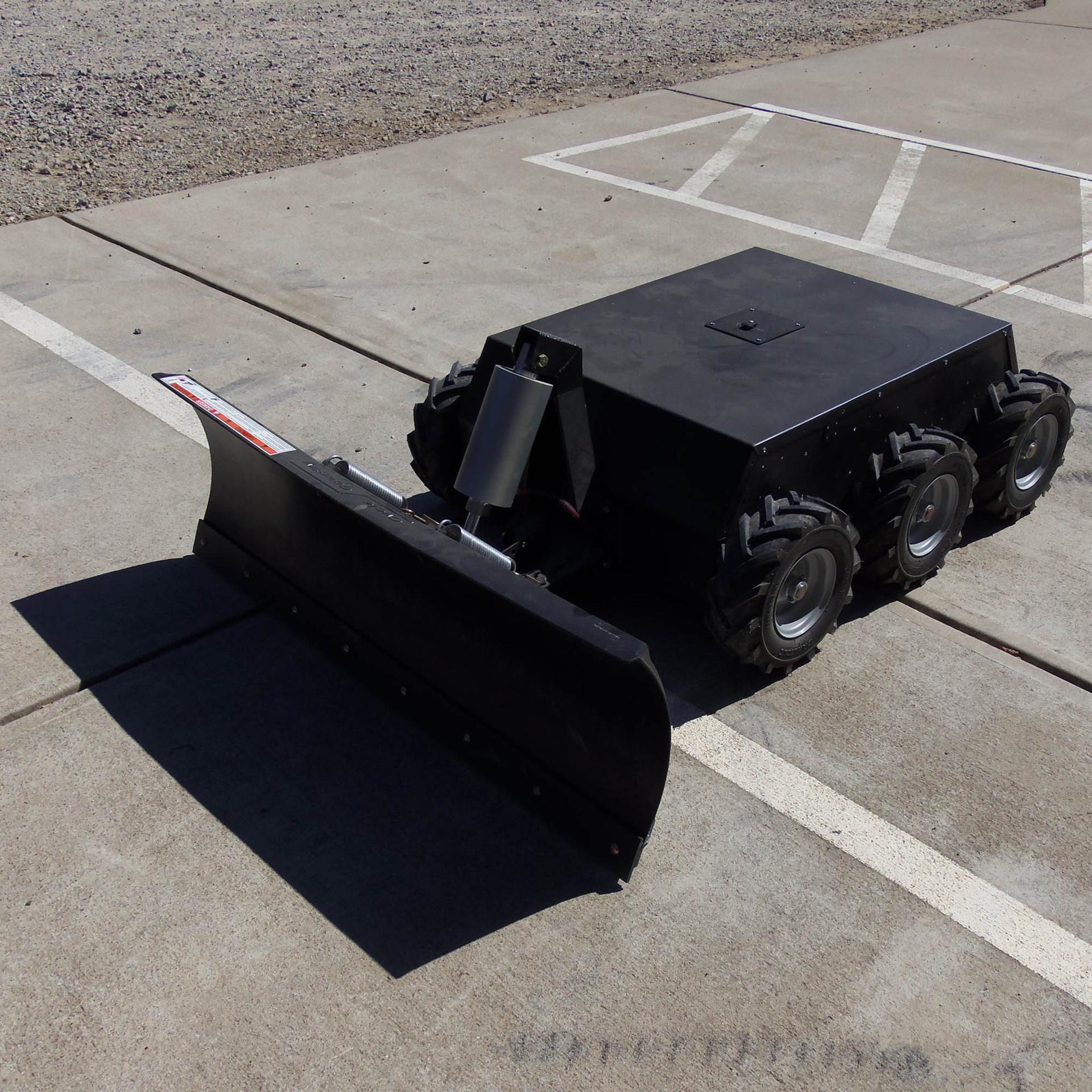

This is an SDR custom 6-wheel drive remote control robot. The power of this robot will allow you to plow your drive while you stay in the comfort of your home or business. Check out our video at the bottom of this page for a detailed discussion and demonstration of this custom robot!
CUSTOM RC 6WD Robot with Snow Plow - SOLD
- Product Code: TP-500-043
- Availability: Discontinued
