Features and Specifications

  • High Performance - 2 dBi
  • Flexible "Rubber Duck" antenna
  • RIGID RP-SMA Plug Connector
  • Optional Magnetic Mount Available

Applications

  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
  • Public Wireless Hotspot
  • Wireless Video Systems
  • Multipoint and Mobile Applications & Bluetooth®

Documentation and Support

This compact 2.4 GHz Omni-directional "Rubber-Duck" WiFi antenna provides broad coverage and 2 dBi gain. It is a coaxial sleeve design with an Omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs, Bluetooth® and other WLAN applications.

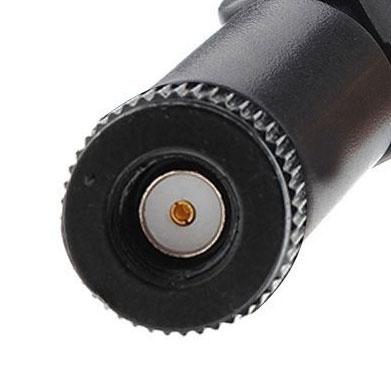

Only 3.13" long, this flexible antenna features a rigid reverse-polarity SMA plug connector for rigid upright installations on equipment. It is suitable as a replacement antenna for many access points and wireless equipment that feature reverse-polarity SMA connectors. The connector is crimped and soldered for excellent performance and low loss (Note this RF antenna is used as a "replacement" or "OEM" antenna rather than a "range extender" antenna). The antenna will achieve excellent range in most installations when the antenna is vertically positioned.

2.4 GHz and 5.8 GHz Dual Band RP-SMA 2dBi Antenna

  • Product Code: TE-206-001
  • Availability: 15 In stock
  • $7.07
