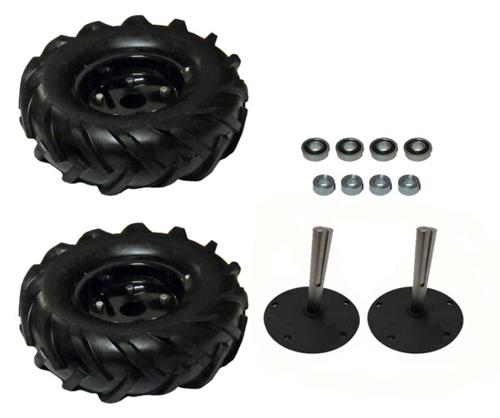

Features and Specifications
- (2) 13" Traction Lug Tires
- (2) ATR shafts
- (2) Steel Machine Key 3/16" x 3/16", 3/4" long
- (4) 5/8" Lock collars
- (4) 5/8 inch bearings
- (10) Bolts/nuts
- The tire does not have a load rating. It is a pneumatic wheel. We have put 125lbs on a 4WD robot using these wheels with no issue.
- Total Weight (2 wheels, shafts, collars, etc., as pictured): 2.5lbs per set.
Inflate tires before use! Underinflated tires can spin on the rim rupturing the tube inside.
Recommendations
This set is intended for our:
These will NOT work for our:
Delivery
These items are built to order. Please allow 1-2 days for shipment.

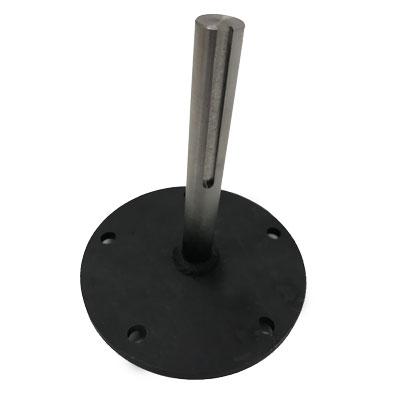

Sold as a pair, the custom machined shafts are 5/8" diameter steel with 3/16" keyway and steel hubs welded onto them to mate with the wheel's bolt pattern. Two sets will make up the parts to a 4WD robot.
ATR Heavy Duty IG52 Wheel and Shaft Set Pair - 13 inch Traction Lug
- Brand: SuperDroid Robots
- Product Code: TD-276-000
- Availability: Built to Order 0-1 Days
- This item does not qualify for free shipping
-
$148.50
