Compact 4WD All Terrain Robot Platform with 32mm motors
Item Name:
Compact 4WD All Terrain Robot Platform with 32mm motors
Item #:
TP-151-032
Price with Selected Options: (See 'Options' Below):
$564.46
Robot Ships in 1-3 Days
Quantity:

Product Image Gallery:

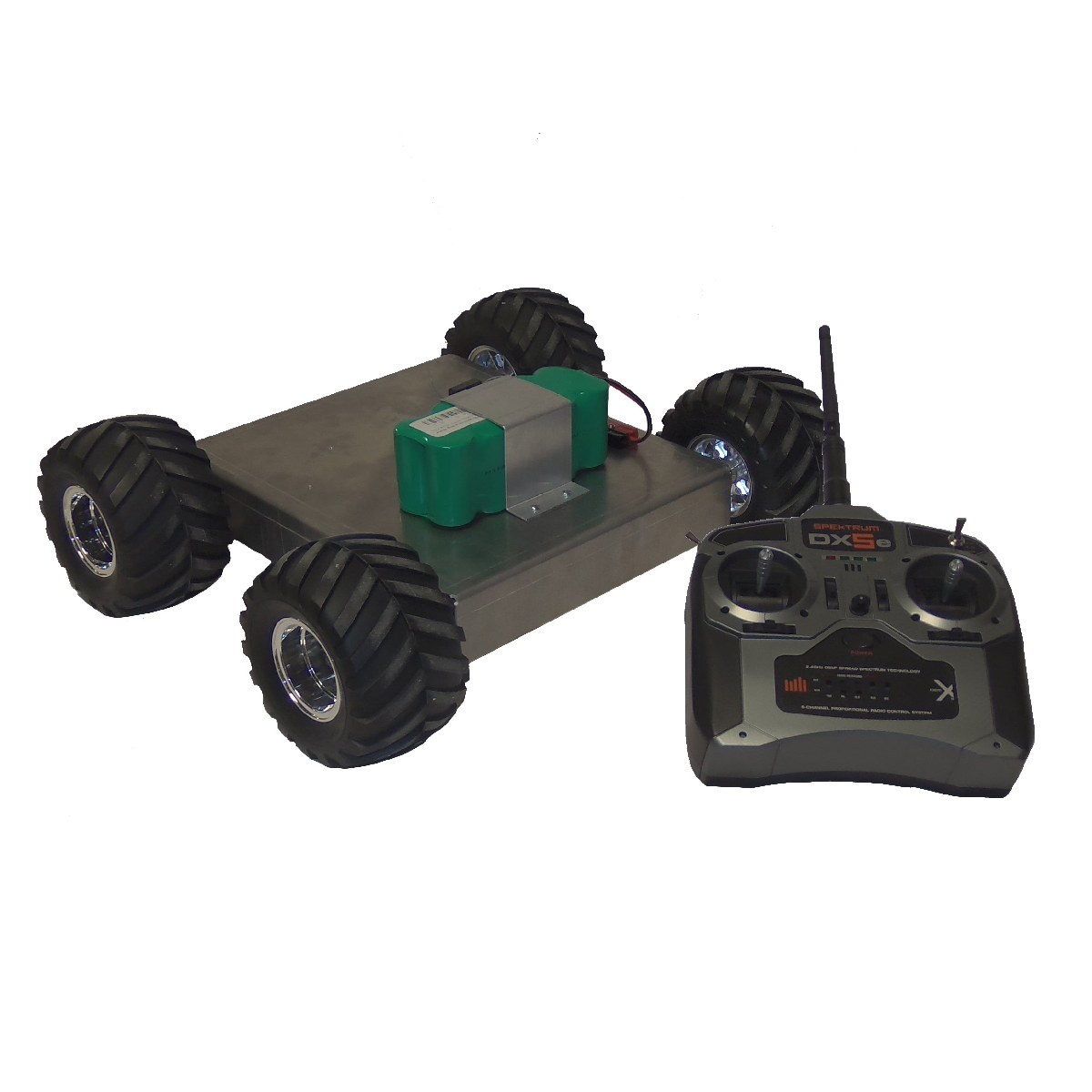

Compact 4WD All Terrain Robot Platform with 32mm motors

The image gallery displays robots built using this platform.

Description:

These All Terrain Robots (ATRs) are designed and fabricated in North Carolina USA and fully supported by SuperDroid Robots, an industry leader in robotics. It is a smaller version of our Standard ATRs, therefore it does not have the same clearance or capacity, but performs exceptionally well. The wheel axles are mounted directly to the motor output shafts. The motors allow this robot to go over most terrain, yet its size makes it very maneuverable indoors. The kit provides you with what you need to make a great All-Terrain robot.

The robot comes with a welded aluminum chassis, wheels and hubs, which directly couple to the IG32 gear motors. Each hub/wheel is driven by a planetary gear motor delivering smooth reliable power. The robot uses differential steering (movement is based on two separately driven wheels placed on either side of the robot body. It can thus change its direction by varying the relative rate of rotation of its wheels). See our ATR page for more details about our All Terrain Robots. If you need this robot customized beyond the provided options below, Contact us .

Standard Configuration:

  • Includes chassis, hardware, electronics, etc.
  • Four heavy duty planetary gear motors (one per axle/wheel). (Additional motor options are available including encoders.)
  • Qty 2 sets: 4 inch semi-pneumatic wheels with axles.
  • Handles 5lbs of additional payload in most terrains. (If additional load capacity is desired, higher torque gear motors are available as options. The semi-pneumatic wheels will also need to be foam filled.)
  • Variable speed and direction differental drive/steering.
  • The standard motors drive this robot up to 200 feet per minute (faster or slower motors are available as options).
  • 12V 4500hAhr NiMH battery providing a 1-4 hours of operation depending on use (different batteries can be selected in the options below).
  • Includes battery chargers.
  • This robot comes complete with a motor controller (additional motor controller options are available as options).
  • This robot includes a Spektrum remote control to wirelessly drive the robot. (additional controller method options available as options) .
  • The total weight of this configuration is ~7 lbs.
  • Unassembled (assembly can be selected as an option).

Available Options:

(Selected Below)

The standard items and options are listed below. They are listed as links and can be clicked to view further details. We offer many different motors, motor controllers, batteries, etc. so you can configure the robot to your exact needs. If you change to a different motor voltage, be sure you select the correct batteries and motor controllers. The weight of the robot, its capacity, speed, etc. depend on how the robot is configured. The item details of the options listed below will specify weights, sizes, etc. This robot platform is a skid steer robot (left and right wheels are slowed down, stopped or reversed to turn). Since it has to skid to steer, friction is the major contributing factor for sizing your components. The more the robot weighs, the harder to turn. The higher the friction coefficient (deep grass, carpet, etc.), the harder it is to turn. The lower RPM motors have lower speed, but more torque for easier turning. The default options listed below are what we recommend as a good starting point. Contact us if you need help selecting options or need custom configuration.

Documentation and Support:

Delivery:

  • This item usually ships within 1-3 days depending on volume.
  • Assembly adds a couple more days.
  • Need it faster? Contact us
Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

These are standard items that are required. They are checked and grayed out indicating that they are not optional and cannot be unchecked

These are the standard included items for this robot kit, please leave all of them selected unless you are sure you do not need them

Motor Option: Select the size motors you desire, you get 4 motors.

No motors

Battery Option: Select the battery for running the motors.

No Battery

Select this option if you want a customized battery mount(s) that will fit the battery(ies) you selected above.

No Battery Bracket
(Qty 1) Include Battery Bracket(s) (Add $25.00)

Select the Motor Controller Option. If using RC make sure the selected motor controller takes RC input.

No RC Motor Controller

RC Controller Option: Select the type of RC Controller you desire to control the robot. If controlling with a microcontroller, etc., then select no RC controller.

No RC Controller

Acrylic Cover Option: Select the upper deck option you prefer.

No Cover/Deck

Select this option if you want us to include an appropriate charging system with your selected robot batteries

No battery charging system
(Qty 1) Battery Charging system (Add $49.90)

Assembly of the robot chassis, motors, wheels, and wiring.

Unassembled
(Qty 1) Assemble Compact ATR Kit (Add $195.00)
An Asterisk '*' indicates that one or more options is Out of Stock!
Item Price
Price with Selected Options:
$564.46

 This Compact 4WD wheeled robot platform is equipped with 32mm motors, a motor controller, and Spektrum remote control. By default, the robot handles up to 5lbs of additional payload and travels 200 ft/min. This robot replaces TP-050-000 and TP-051-000.
