 Crawler 4WS 4x4 Compact Security Robot -DISCONTINUED
Item Details
Crawler 4WS 4x4 Compact Security Robot -DISCONTINUED
Item Name:
Crawler 4WS 4x4 Compact Security Robot -DISCONTINUED
Item #:
TP-600-350
Manufacturer:
SuperDroid Robots
Adjusted Price:
Availability:
We're sorry, this item is currently out of stock. Please contact us for availability.

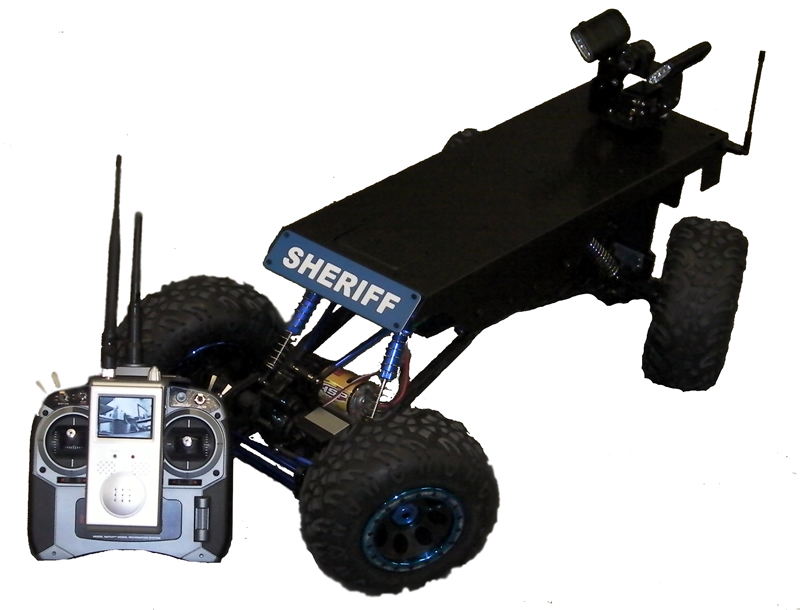

The image displays possible configurations of this robot. See description and options below to configure your robot.

Description:

The Crawler has been replaced with our MLT compact surveillance robot, TP-600-402.

Description:

This is a customized RC rock crawler that been modified to house a wireless color infra red camera on a 360 degree pan and tilt system. The robot provides a low cost platform that is ready to run complete with the vehicle, remote, and video system providing a quickly deployable surveillance robot that can navigate may different difficult terrains. Click Here for the Datasheet.

Included:

  • 4WD robot chassis with integrated pan and tilt camera system.
  • 4 Wheel steering for improved maneuverability.
  • Geared low for ~6mph high torque drive train with 4 wheel independent suspension (rock crawler style chassis). Speed is infinitely adjustable/controllable.
  • Two (2) powerful gear motors for driving and two (2) powerful servos for steering front and back axles.
  • Pan and Tilt System. 360+ degrees of rotation/pan and ~110 degrees of tilt. Integrated 7LED IR color camera. Optional LED flood lights can be mounted to pan and tilt and remotely operated.
  • Standard removable 2000mAhr 7.2V NiCad Pack for drive. Run time 0.5 to 2 hours depending on use. Upgraded/Spare 4700mAhr NiMH 7.3V pack available for 2x run time.
  • 11.1VDC 1800mAhr Li-Ion video power battery. Run time 3-4 hours continuous use
  • Total weight of fully assembled robot: ~12lbs
  • Total height (floor to top of roll cage): ~13 inches
  • Total width: ~15 inches (outer edges of tires)
  • Total length: ~26 inches (front edge of front tires to back of chassis)
  • 7" foam filled All-Terrain tires and rims.
  • Custom engraved front nameplate.
  • All electronics included.
  • Fully assembled and wired and tested.

Control Console Specifications:

  • Two versions available
  • Standard versions include the following:
    • 2.4GHz frequency spectrum control system (searches for best most reliable channel)
    • 900MHz video transmitter and receiver
    • Tested urban range approximately 500 feet (effective operation range for video and control with multiple building structures, wireless interference, etc. Concrete and steel walls will reduce range further)
    • Tested rural line of site range approximately 1000 feet
    • Color LCD for viewing video
    • Full range of speed control for drive motors.
    • Steering Control for 4 wheel steering.
    • Position control of camera pan and tilt
    • Extra channel(s) for lights or other custom options.
    • Includes rechargeable batteries for control console and video

(DX5e shown in picture, actual version is a DX6i)

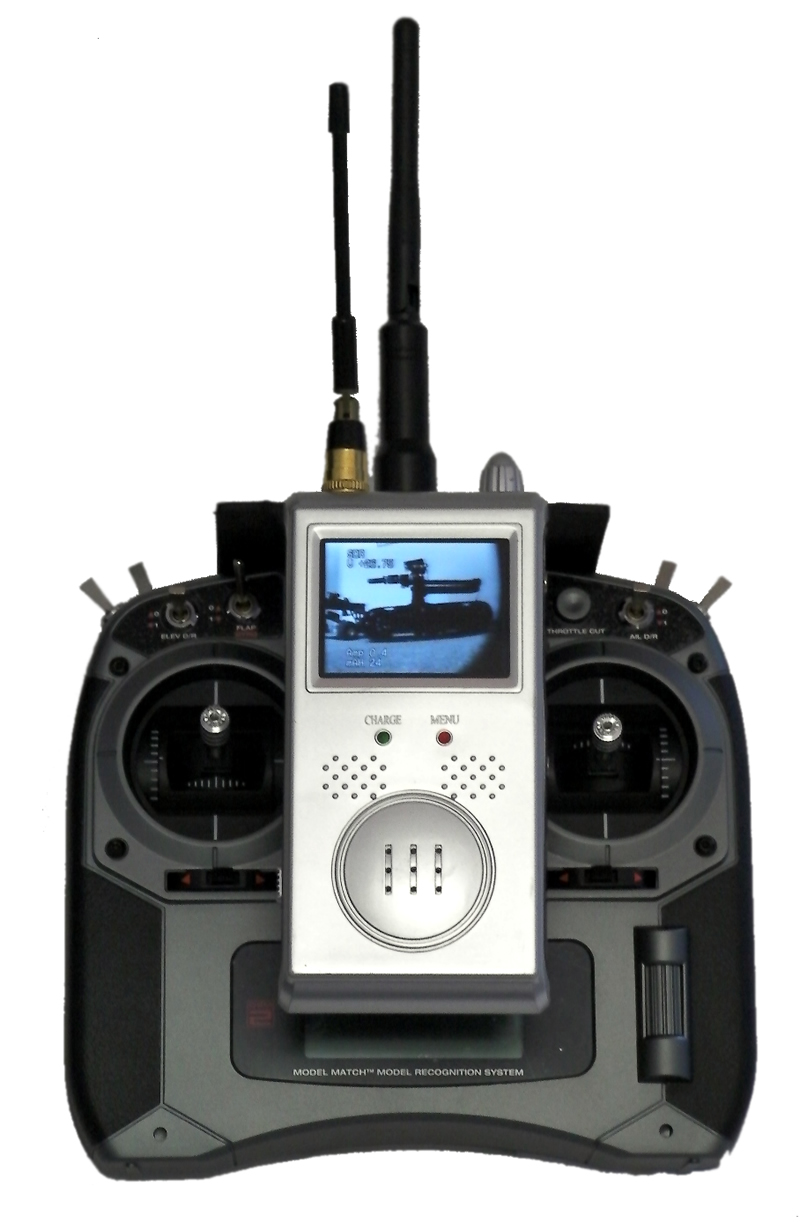

  • Spektrum Dx6i remote with custom CNC mounting bracket for holding 2.5” LCD video receiver.
  • Light weight and portable.
  • Fully assembled and tested.

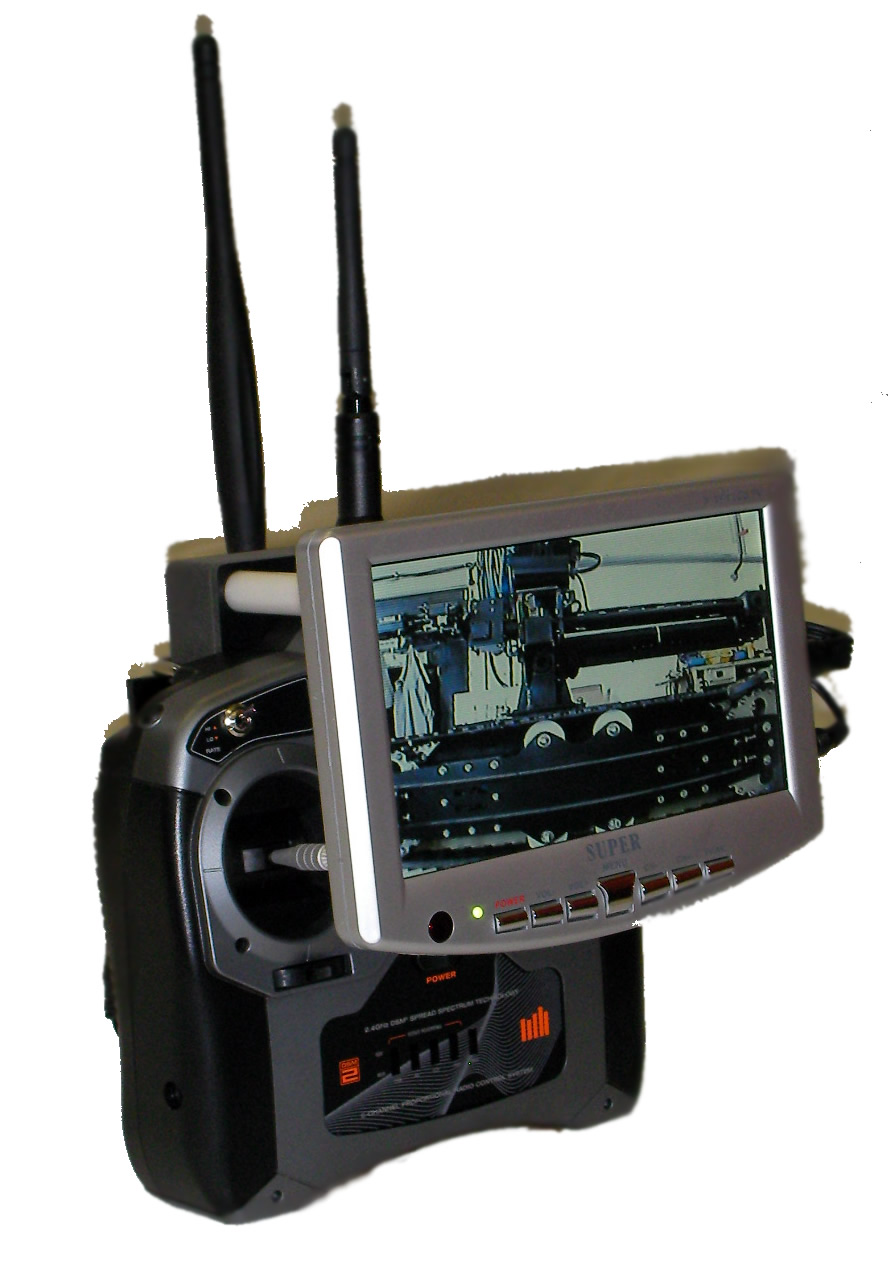

  • Spektrum Dx6i remote with custom water jet cut mounting bracket for holding battery, 7” LCD and video receiver.
  • Light weight and portable. Convenient single battery system with master power switch and charging port.
  • Fully assembled and tested.

Charging:

Available Options:

As pictured the Crawler has the optional paint, and remote LED lights.

  • Yagi Antenna: The Yagi Antenna is attached to the video receiver for better video reception. A mount is provided so it can be mounted to the handheld remote and/or it can be used with extra video receivers.
  • LED Lights: LED lights can be added to the pan and tilt system that can be remotely used to illuminate dark areas. The IR camera can see in total darkness up to 6m distance, the LED lights provide longer range viewing
  • Paint: The aluminum chassis cover and pan and tilt can be painted with a tough bed liner coating if desired.
  • Extra Video Receiver: An extra video receiver can be included. This option will allow other users to view operations. The video receiver must be within wireless range of the Crawler.
  • Spare Batteries: Spare batteries can be purchased with the robot
  • Upgrade to Fail Safe AR9000 Receiver and DX6i Package: This option provides longer range control (2.4GHz by using a long range high grade AR9000 receiver with the DX6i radio.
  • Upgrade 2.5" LCD Receiver to include SD card: This option upgrades the standard 2.5” LCD to include a SD compatible receiver so the Crawlers video feed can be recorded.
  • Upgrade to handheld remote with 7 inch LCD. Discussed above

Delivery:

  • This robot is built to order based on the options selected below. Please allow 1-3 weeks for shipment.
  • Actual delivery may vary based on workload, contact us for a more accurate delivery time.
  • Contact us if you need expedited delivery.

Video:

Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

These are the standard included items for this robot kit, please leave all of them selected unless you are sure you do not need them

Assembled Crawler Chassis as shown
Complete Assembly and Testing

Specify text to be displayed on front nameplate.

Nameplate Text (20 characters Max)

Choose the Control Console Option you want to control your robot and view the video feed.

DX6i with 2.5 inch LCD video receiver
DX6i with 2.5 inch LCD video recording receiver (Add $77.00)
DX6i with upgraded 7" LCD and video receiver (Add $1,120.60)

This option includes LED Lights mounted on the camera system with power and controls.

No Lights
LED lighting to camera pan and tilt with RC switch (Add $206.00)

If you wish to upgrade the drive battery for longer run time select the upgraded battery below.

Standard 2000mAhr NiMH Battery

If desired the 2.4GHz receiver for the controls can be upgraded.

Standard 2.4GHz Data Receiver

Select this option if you wish to have a high gain antenna added to the video receiver for longer range reception.

Standard Antenna
Yagi High Gain Antenna and Extension Cable (Add $148.75)

Select if you wish to have the robot painted.

Unpainted Aluminum
Paint Aluminum Chassis and Pan and Tilt (Add $79.99)

Select if you wish for the robot to be shipped in a standard box or if you want it shipped in a foam lined Pelican Case

Standard Shipping Box
Pelican Storage and Shipping Case with Foam (Add $369.00)
An Asterisk '*' indicates that one or more options is Out of Stock!
Item Price
Adjusted Price
$2,269.00

 The Crawler has been replaced with our MLT, TP-600-402. The MLT is a compact surveillance robot.
