Description:

Ometer's H700-0 is a high quality 3-axis Hall Effect joystick with a rubber boot. Spring return to center. Each Axis is attached to a hall effect sensor providing very precise, smooth, repeatable operations. 0-5V output for each axis, with 2.5V for center. The 3rd axis is a twist knob with a spring return to center.

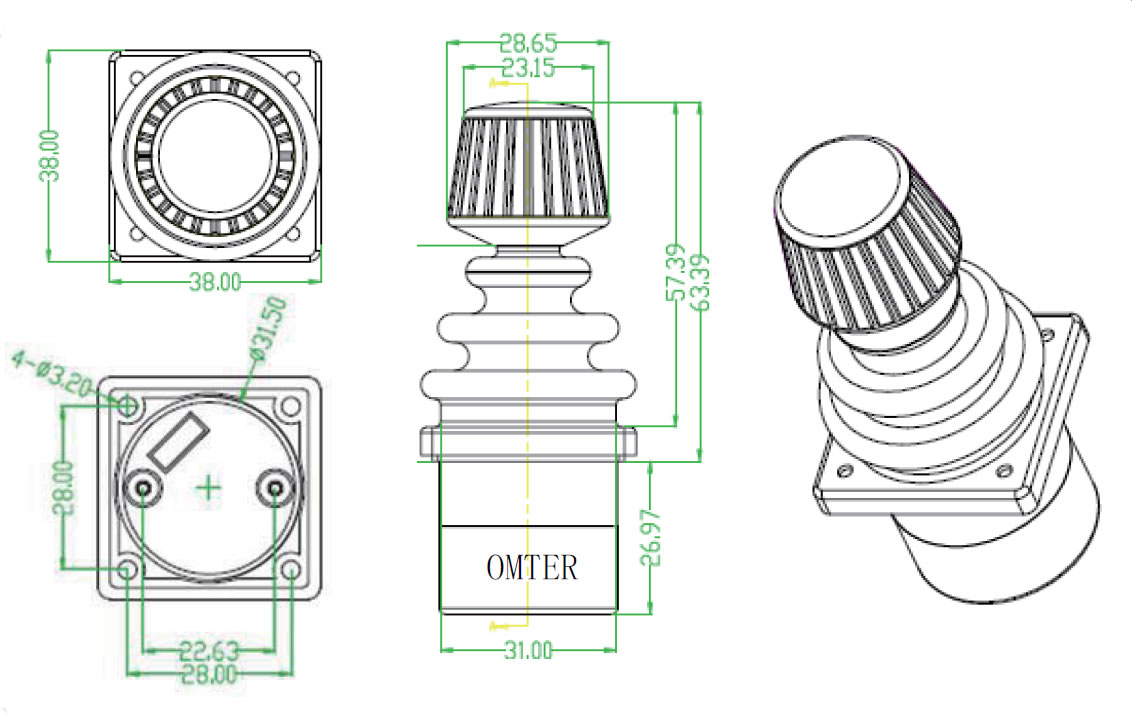

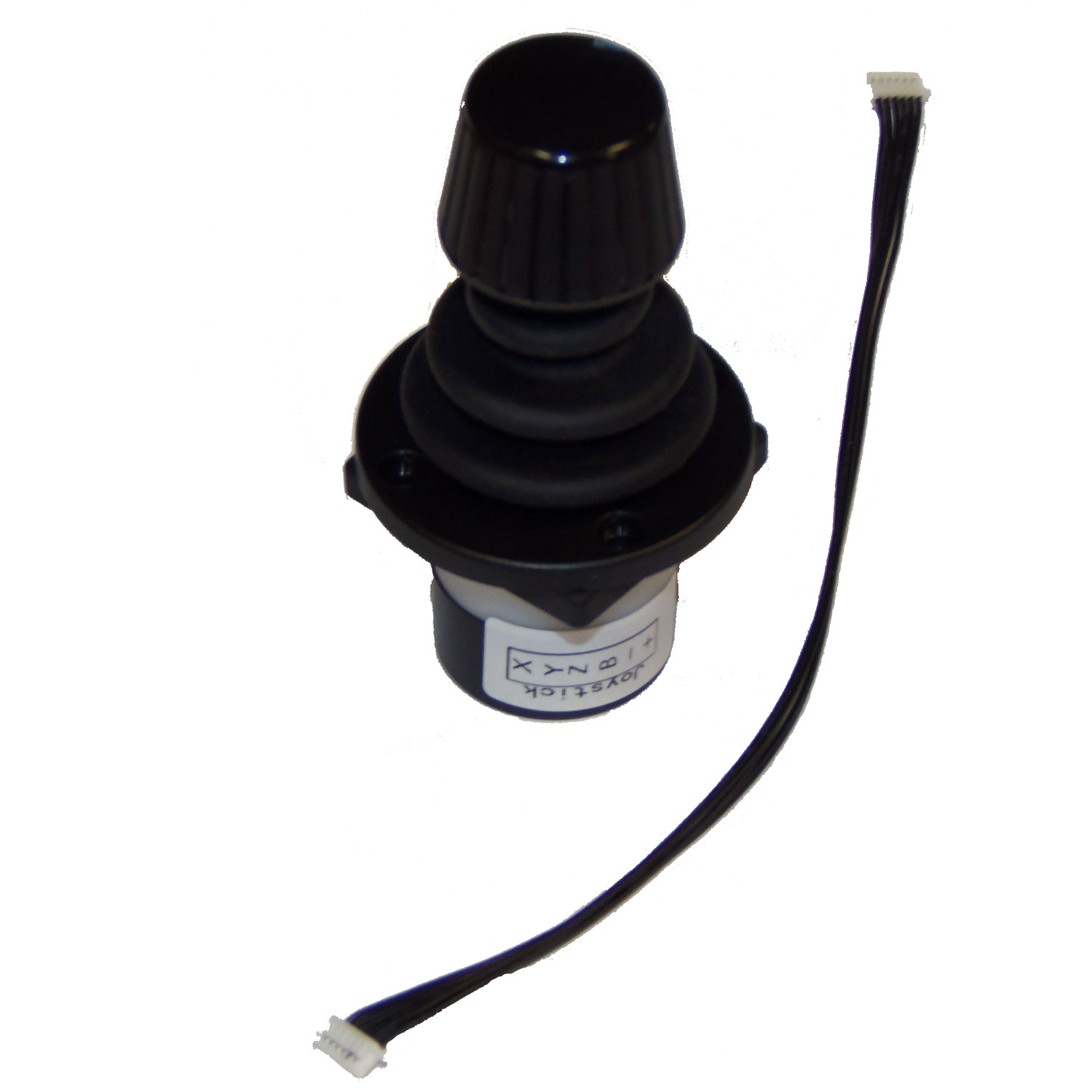

The supplied plug as shown in the picture plugs into the bottom of the joystick. The joystick pins are labeled. 5VDC must be supplied for operation. Proper hook up of the wires is essential or the joystick will be damaged and not covered under warranty.

This joystick is a non-contact joystick with a long life time. It applies hall effect sensors, handling is soft and easy. Very clean output is suitable for applications where high accuracy and precision is required.

Features and Specifications:

• Sensor Type: Hall-Effect
• Axis: 3
• Return: Spring based
• Rating: IP65
• Operating Voltage: 5V
• Output Voltage Range: 0-5V
• Output Tolerance: ±2%
• Supply Current: 10mA
• Output Current: 2mA
• Leads: 200mm AWG28, PTFE insulated

Documentation and Support

• See PDF Specification sheet
