Description:

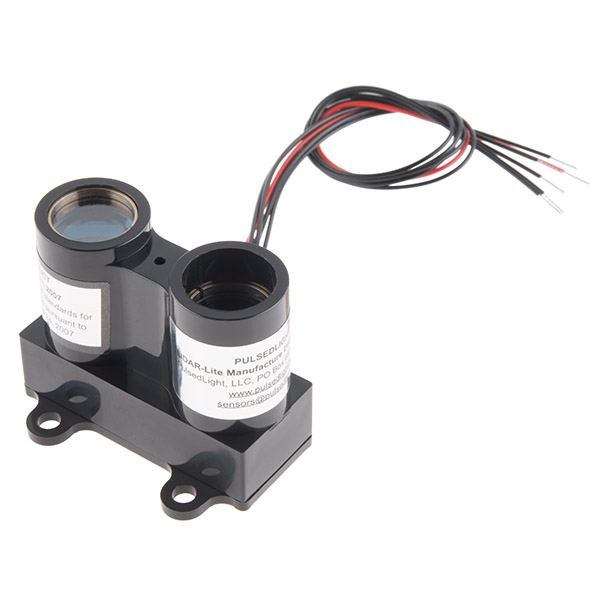

The LIDAR Lite is a compact high performance optical distance measurement sensor from PulsedLight. This sensor is ideal for autonomous applications were accuracy is needed. This LiDAR can measure distances from zero to more than 40 meters. It offers the highest performance available in a single bean ranging sensor in its class. The simple PWM and I2C interfaces make it easy to integrate into your next project.

CLASS 1 LASER PRODUCT CLASSIFIED EN/IEC 60825-1 2007. Complies with US FDA performance standards for laser products execpt for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. System contains no user servicable components. Repair or service of the system is only to be handled by factory-trained technicians. No Service by the user is allowed.

Features:

• Interface: I2C or PWM
• Range: 0-40m
• Accuracy: +/- 0.025m
• Operating Voltage: 4.7 - 5.5VDC
• Average Current: 100mA
• Acquisition Time: 0.02 sec
• Rep Rate: 1-100Hz

Documentation and Support

• Datasheet
• Operating Manual
• Technology Brief
• Sample Code
