Description:

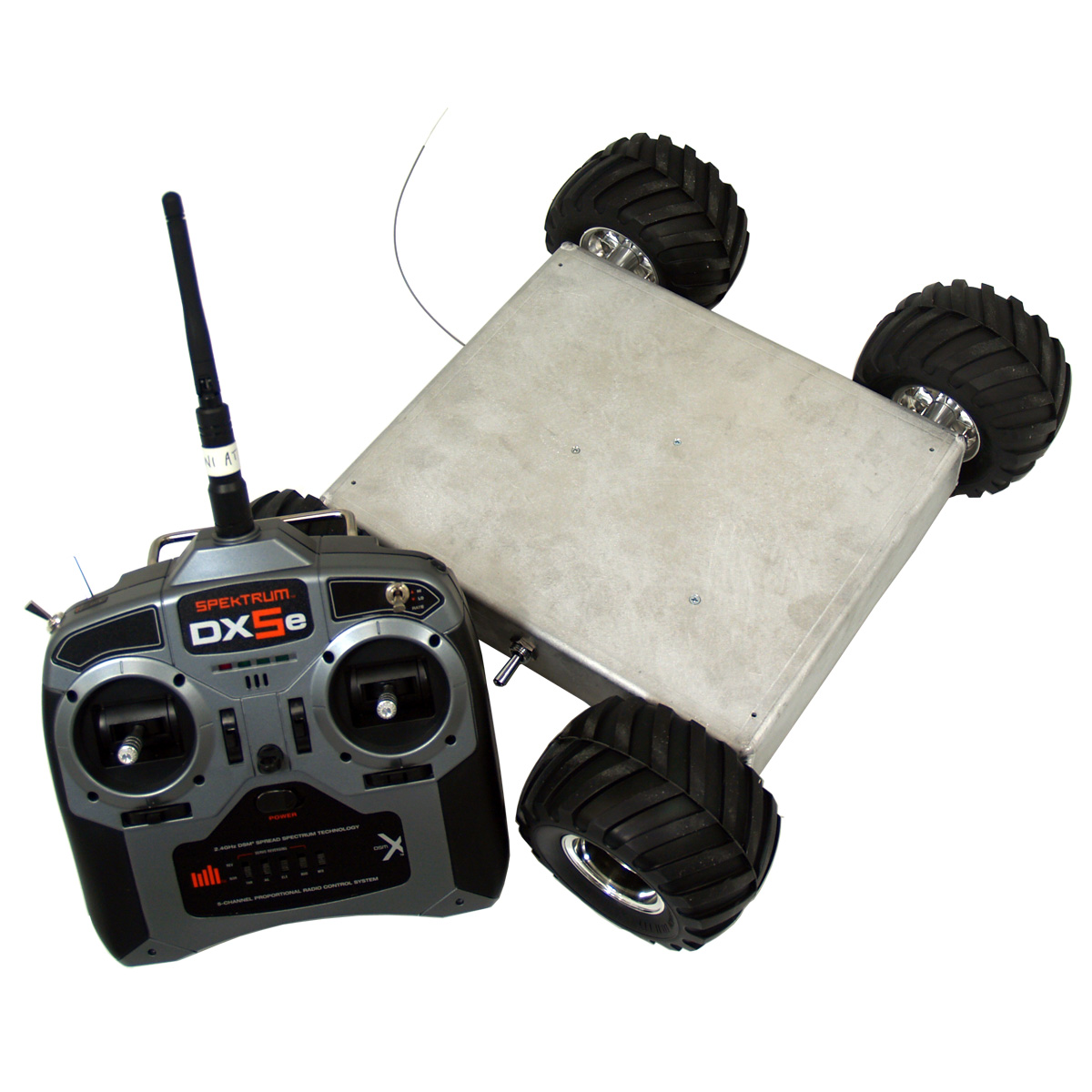

This is a prebuilt RC All Terrain Robot Kit that has all the main features to get you going. Ready to ship, fully assembled and ready to run. The robot is configured as listed below. If you desire a custom configuration please follow this link and select the options at the bottom of the page. If you require further customization, please fill out our custom robot request form.

This is a smaller version of our Standard ATR, therefore it does not have the same clearance or capacity, but performs exceptionally well. The wheel axles are mounted directly to the motor output shafts. The motors allow this robot to go over most terrain, yet its size makes it very maneuverable indoors.

The robot comes with a welded aluminum chassis, wheels and hubs, which directly couple to the IG32 gear motors. Each hub/wheel is driven by a planetary gear motor delivering smooth reliable power. The robot uses differential steering (movement is based on two separately driven wheels placed on either side of the robot body. It can thus change its direction by varying the relative rate of rotation of its wheels). See our ATR page for more details about our All Terrain Robots. If you need this robot customized, Contact us.

Pre-Built Configuration:

• Includes chassis, hardware, electronics, etc.
• Four IG32 12VDC 197 RPM gear motors (one per axle/wheel).
• Qty 2 sets: 4 inch semi-pneumatic wheels with axles.
• Variable speed and direction differential drive/steering.
• 11.1V 2200mAh batteries providing up to an hour of operation depending on use.
• Includes battery chargers.
• This robot comes complete with a motor controller.
• This robot includes a Spektrum remote control to wirelessly drive the robot.
• This Robot comes assembled and ready to run.
• Specifications of this configuration:
  • Axle Mount: Direct Mount (DM) - the axles are mounted directly to the motor shaft
  • Speed: 232 ft/min
  • Dimensions (LxWxH): 12" x 13.5" x 4" (wheel height).
  • Weight: 7.5lbs.
  • Capacity: Payload of approximately 4.5lbs.

Documentation and Support:

• Click here to view a CAD drawing of this robot.
• Watch the videos of this robot being built!

Delivery:

• This robot is pre-built, please allow 1-2 business days to prep the robot for shipment.
• Contact us if you need expedited delivery.
