Description:

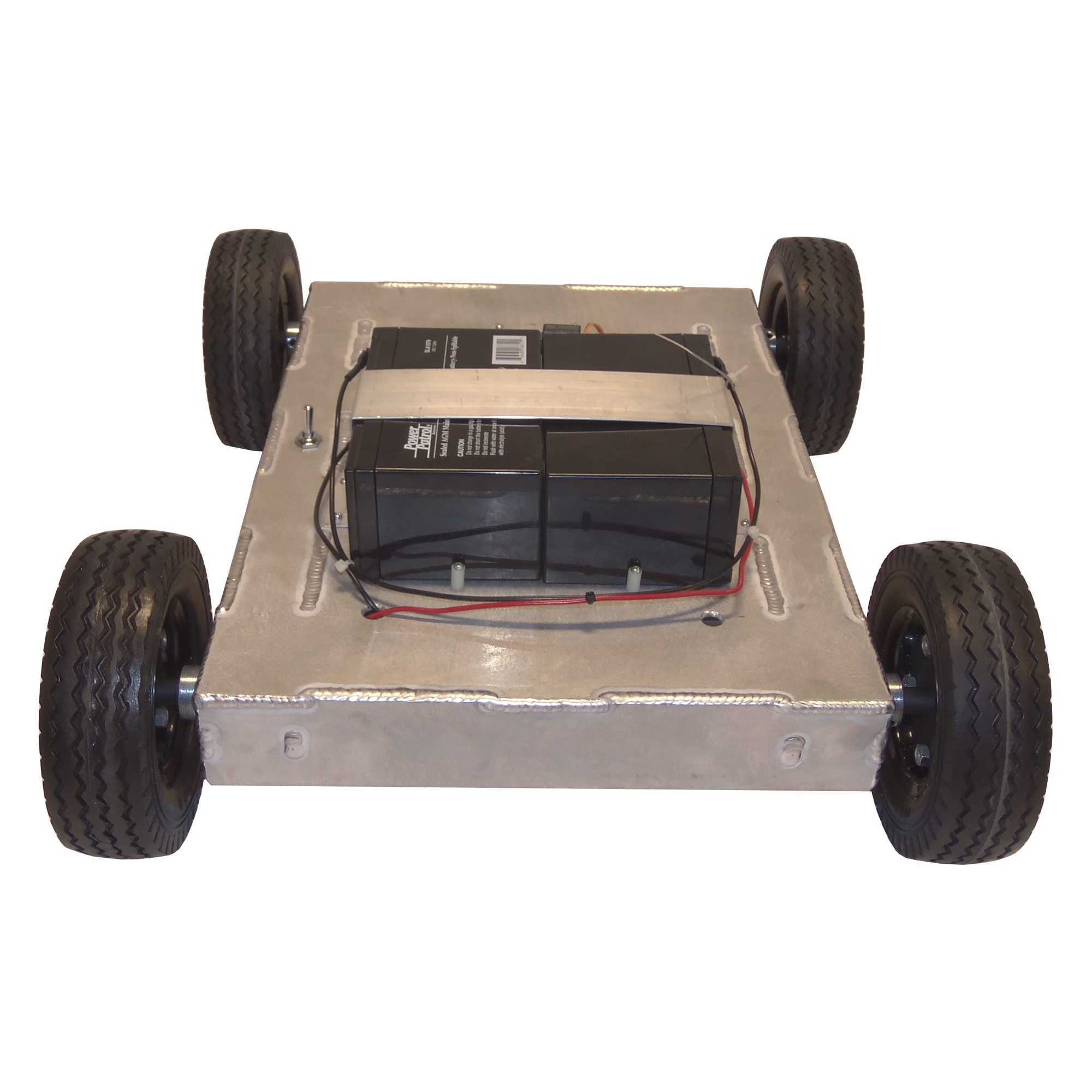

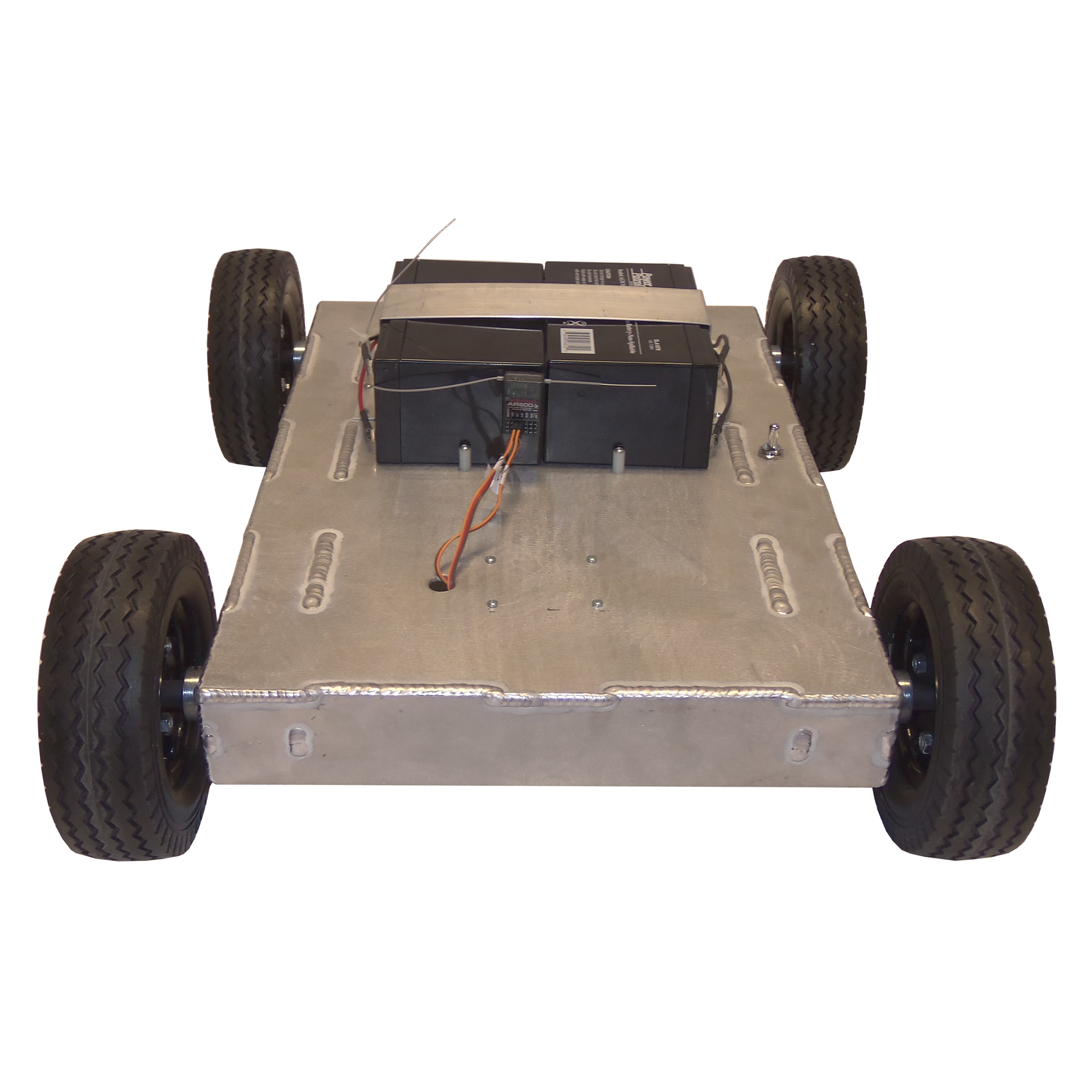

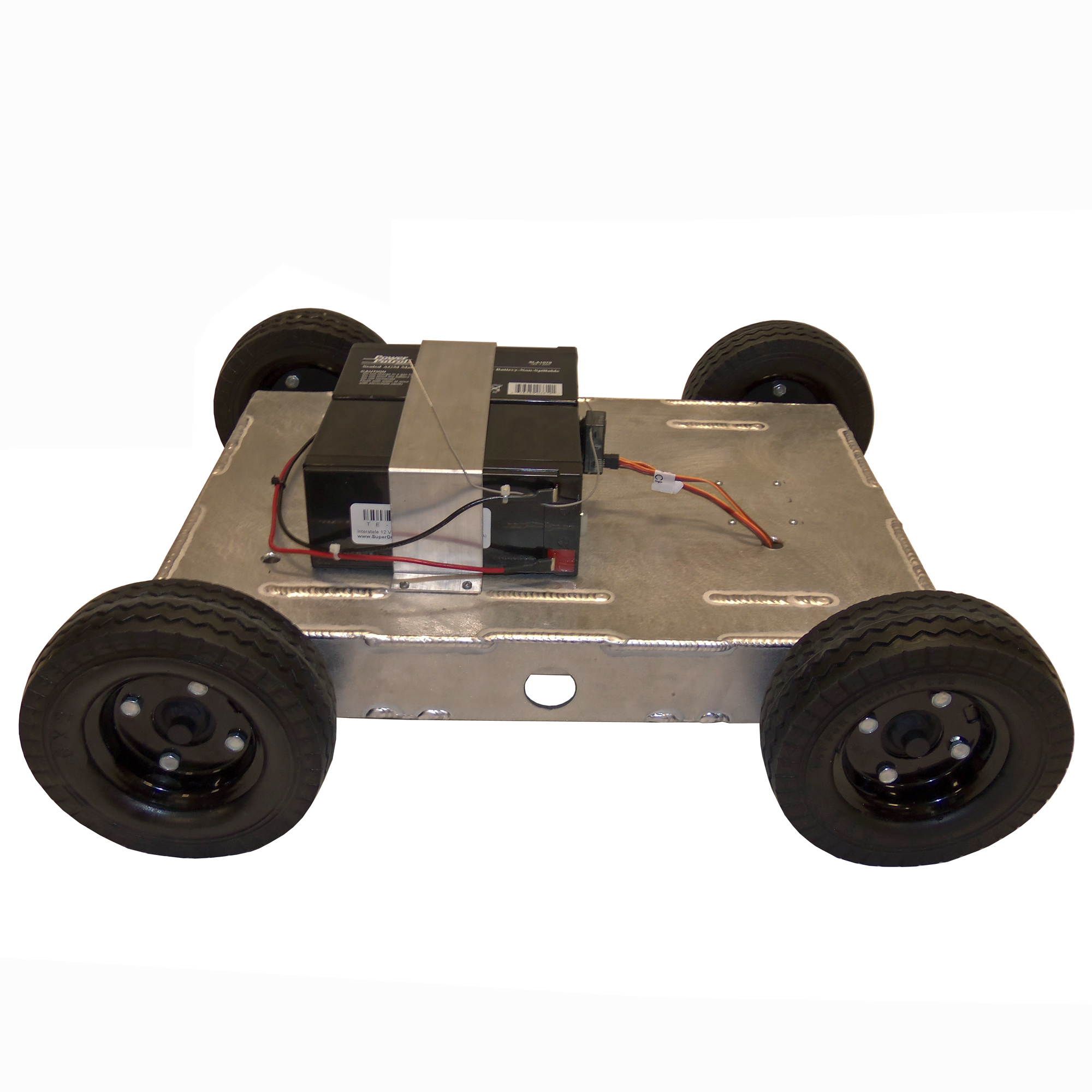

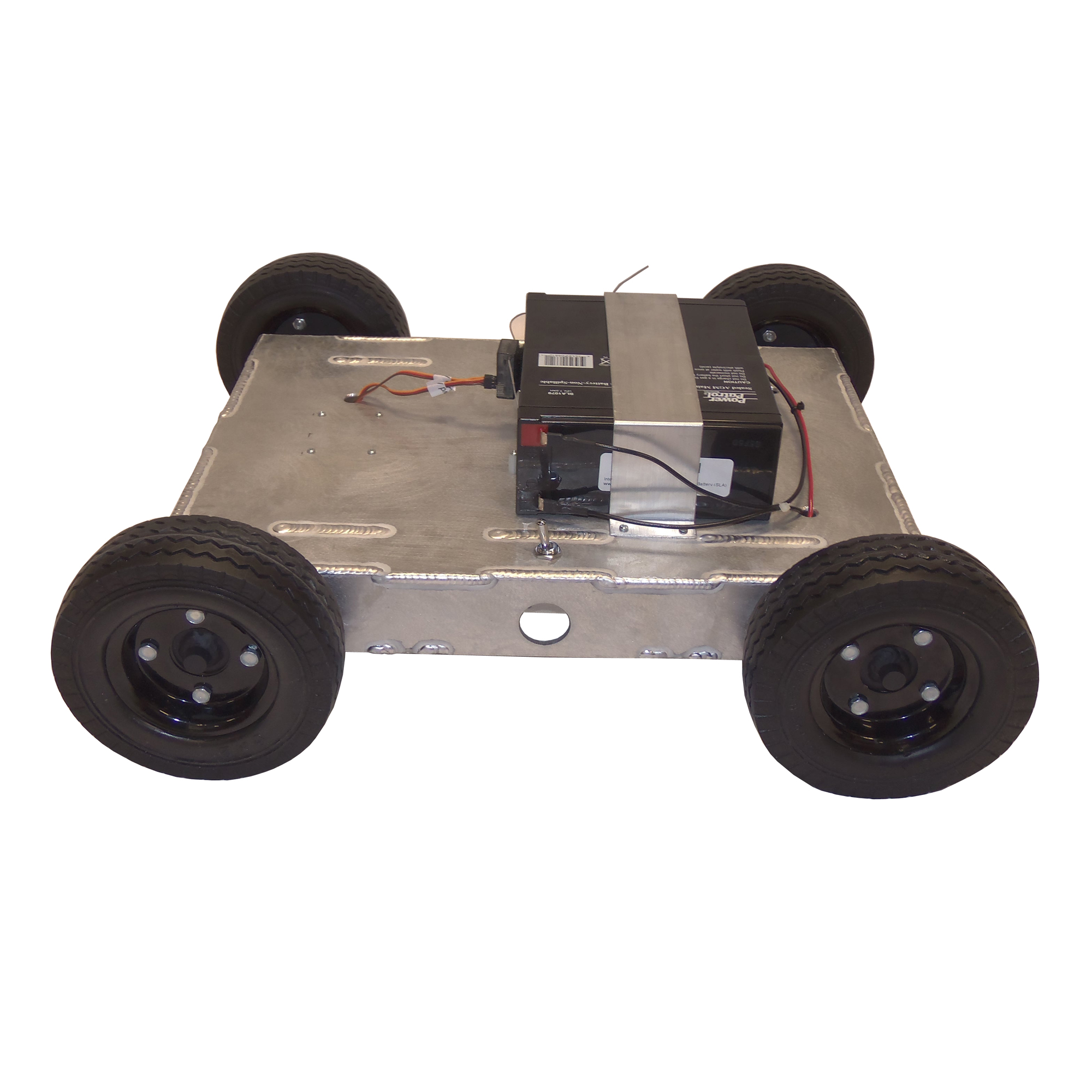

This is a prebuilt RC All Terrain Robot Kit that has all the main features to get you going. Ready to ship, fully assembled and ready to run. The robot is configured as listed below. If you desire a custom configuration please follow this link and select the options at the bottom of the page. If you require further customization, please fill out our custom robot request form.

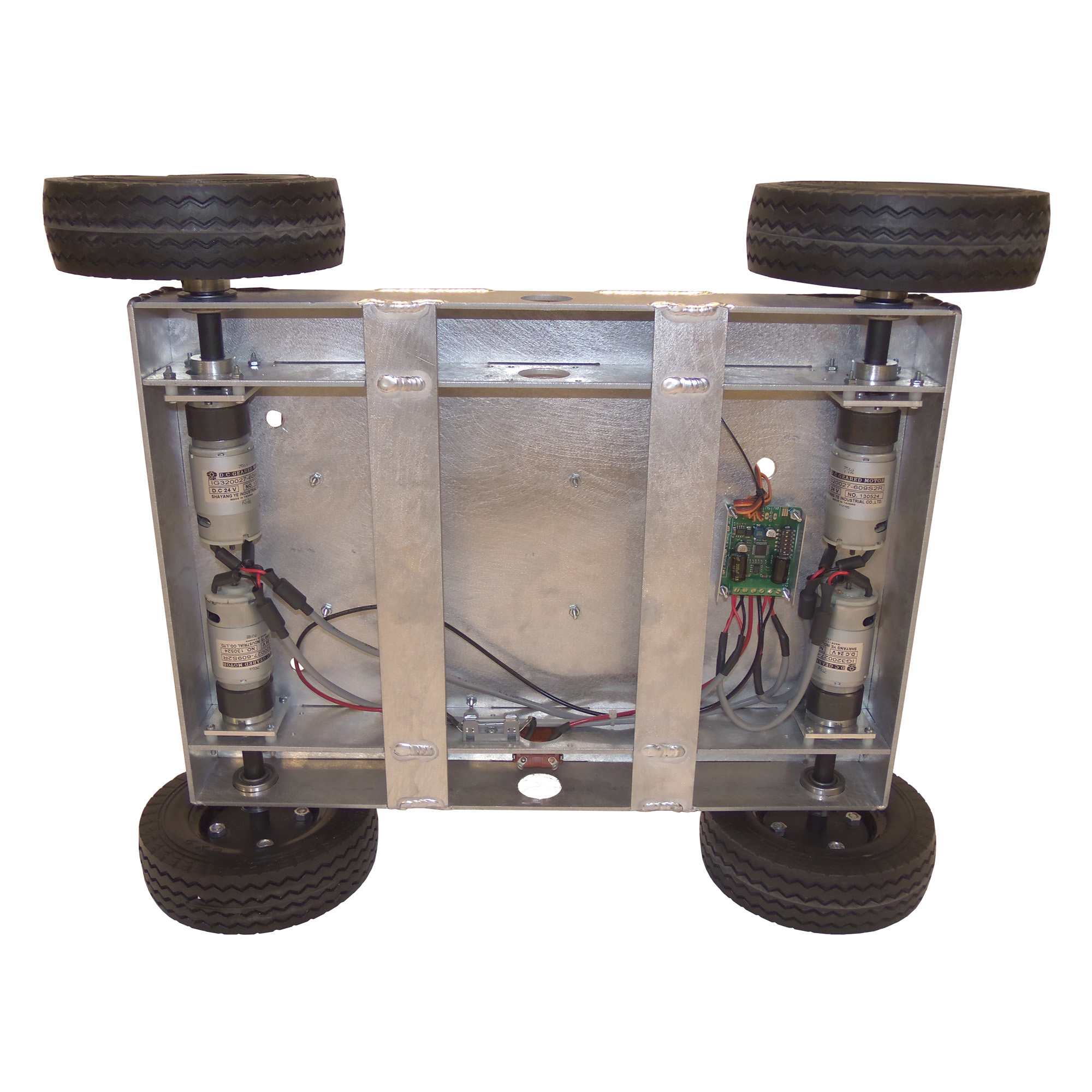

The chassis is a rigid gusseted aluminum frame that is precisely fabricated using state of the art CNC equipment. The wheels are mounted on solid steel axles which are supported by ball bearings. Each axle/wheel is driven by a planetary gear motor delivering smooth reliable power. The robot uses differential steering (movement is based on two separately driven wheels placed on either side of the robot body. It can thus change its direction by varying the relative rate of rotation of its wheels). See our ATR page for more details about our All Terrain Robots. If you need this robot customized beyond the provided options below, Contact us .

Pre-Built Configuration:

• Includes chassis, hardware, electronics, etc.
• Four heavy duty planetary gear motors (one per axle/wheel).
• 6 inch solid foam core wheels with solid steel axles and ball bearing supports.
• Variable speed and direction differential drive/steering.
• 24V SLA batteries and 7Ahrs of capacity providing a 2-4 hours of operation depending on use.
• Includes battery chargers.
• This robot comes complete with a motor controller.

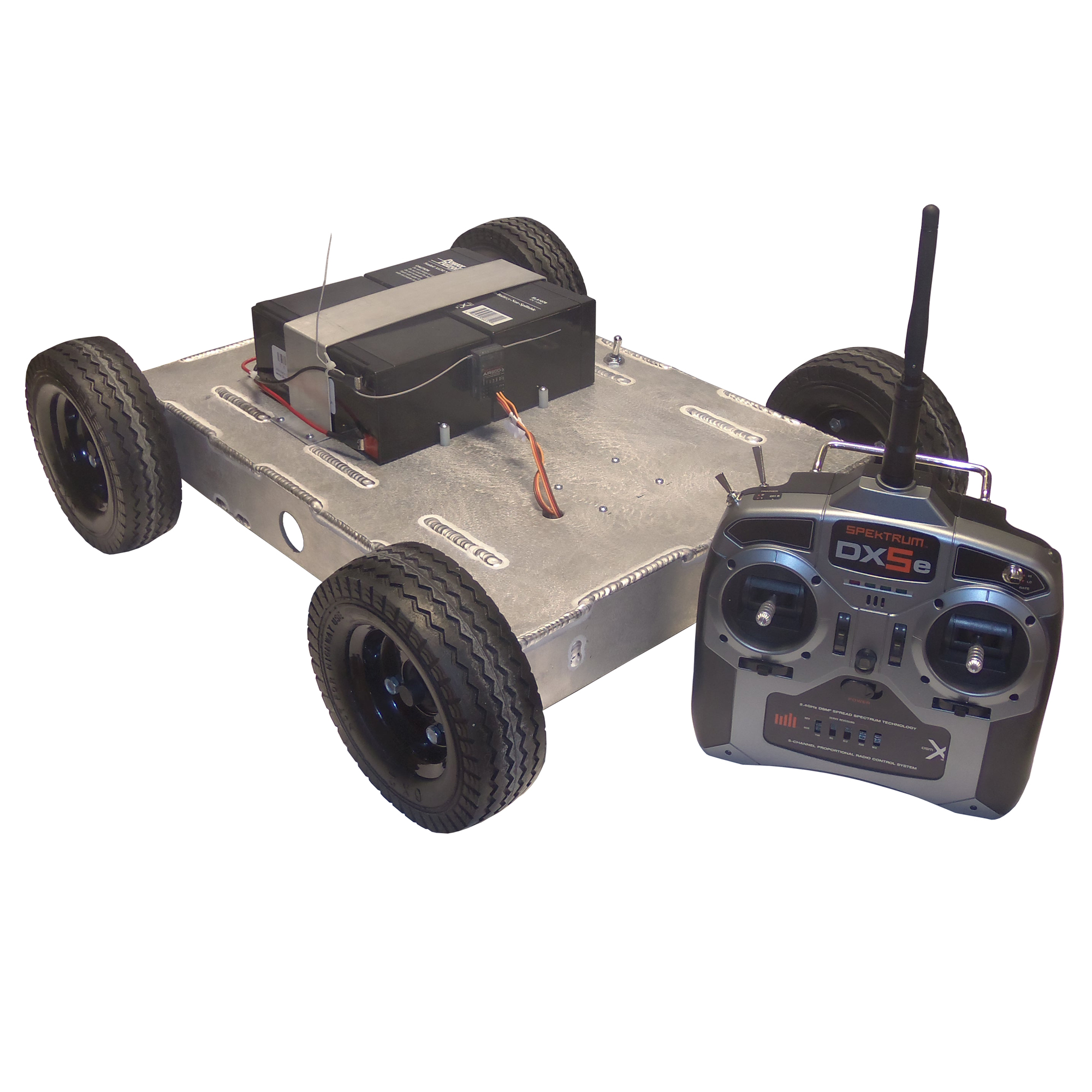

• This robot includes a Spektrum remote control to wirelessly drive the robot.
• This robot is completely assembled.
• Specifications of this prebuilt configuration:
  • Axle Mount: Single Bearing (SB) - the axles are mounted to the motors and one sealed ball bearing.
  • Speed: 300 ft/min
  • Dimensions (LxWxH): 20.5" x 17.25" x 6"
  • Weight: 26lbs.
  • Capacity: Payload of approximately 15lbs.

Documentation and Support:

• All-Terrain-Robot (ATR) Wheeled Robot Support Page
• Click here to view a CAD drawing of this robot.
• Watch the video of this robot being built!

Delivery:

• This robot is pre-built, please allow 1-2 business days to prep the robot for shipment.
• Contact us if you need expedited delivery.

Video:

The videos below show how the standard ATRs perform in a variety of situations.
