Description:

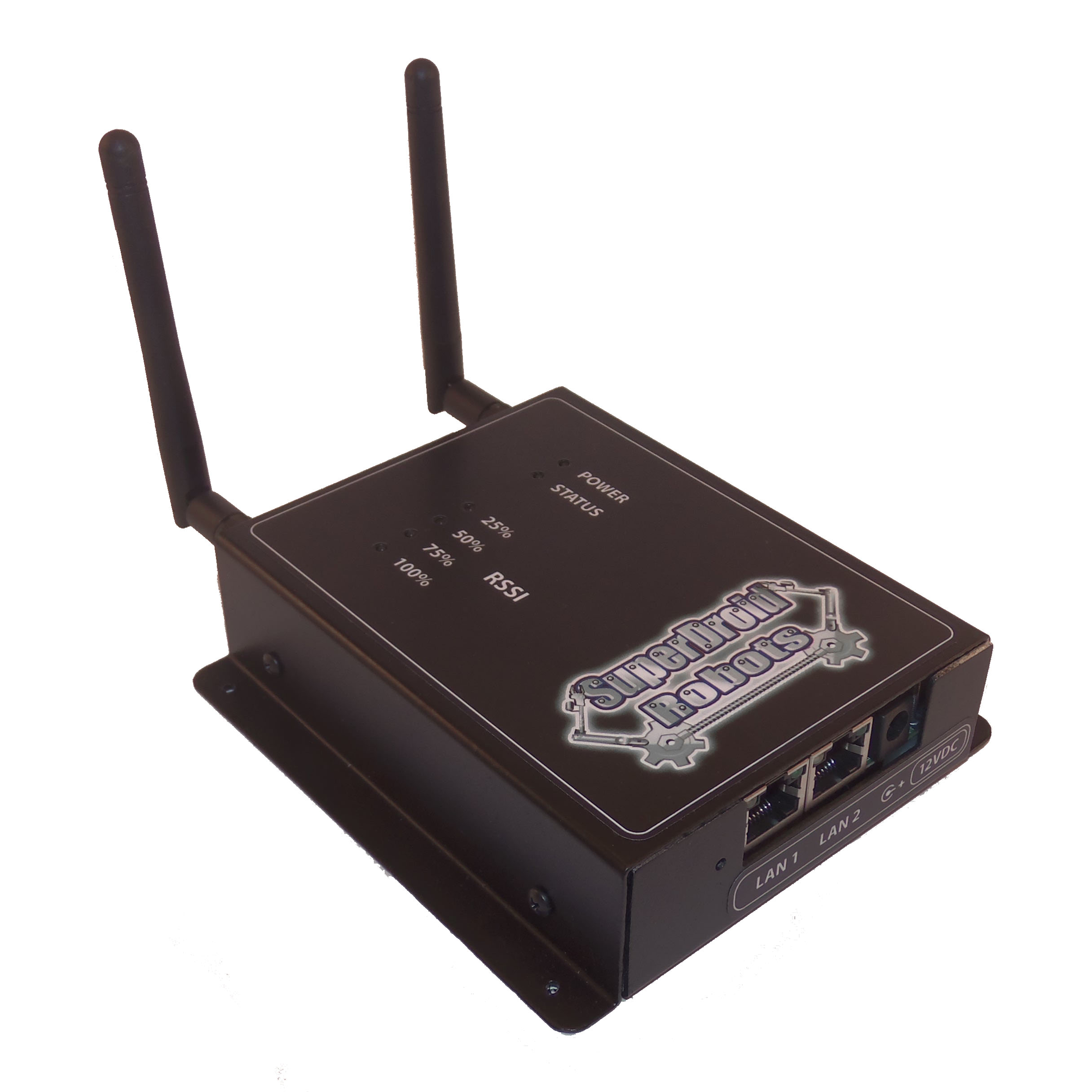

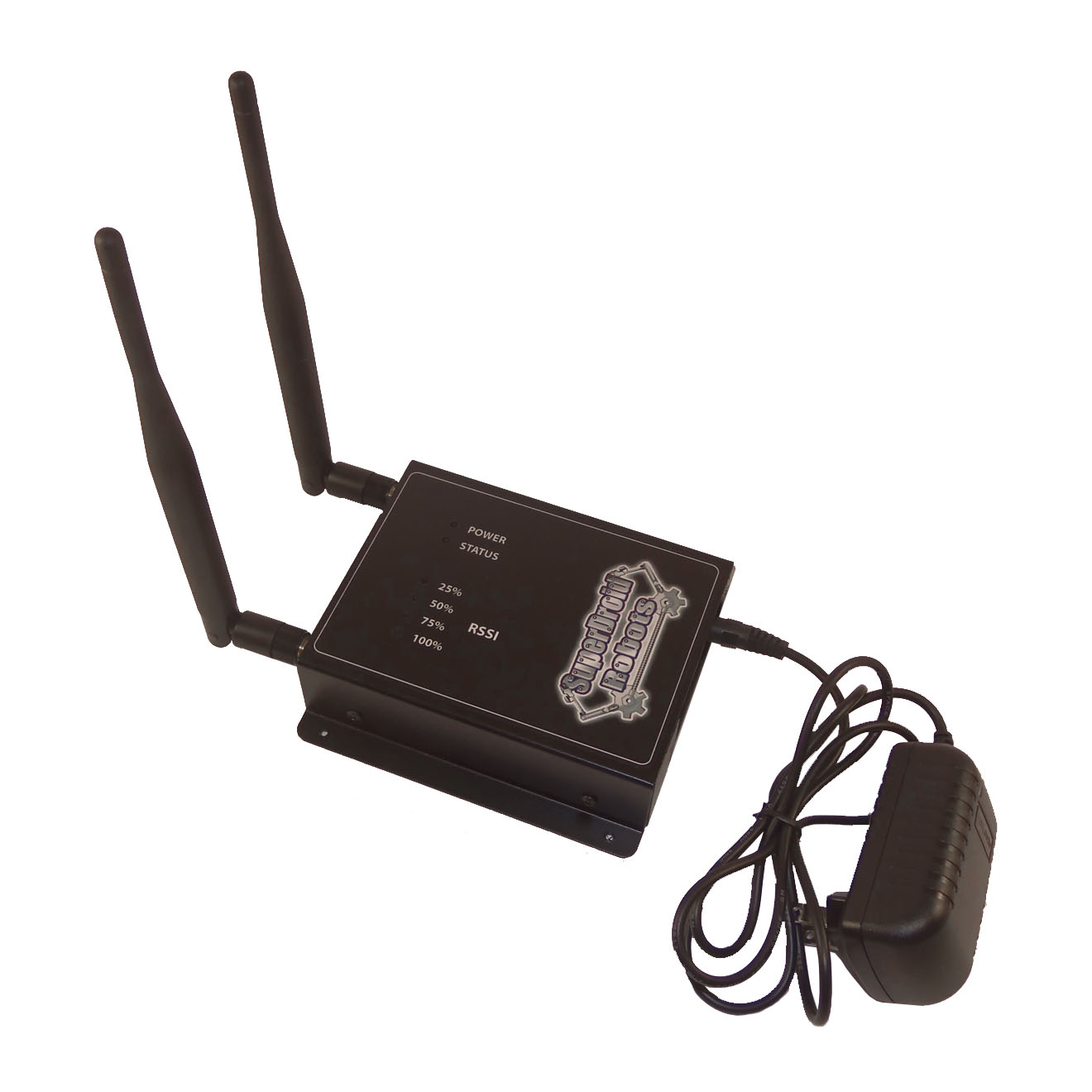

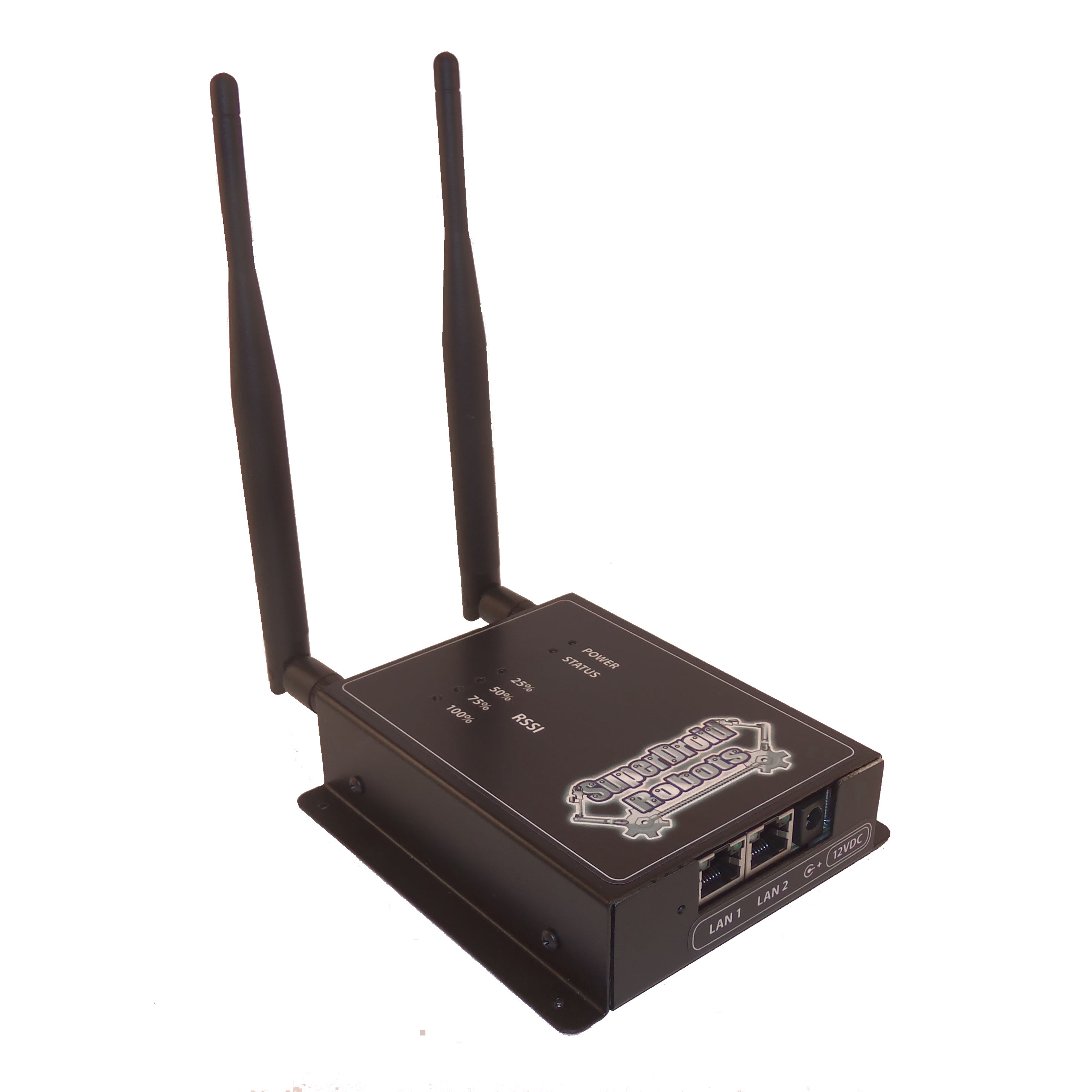

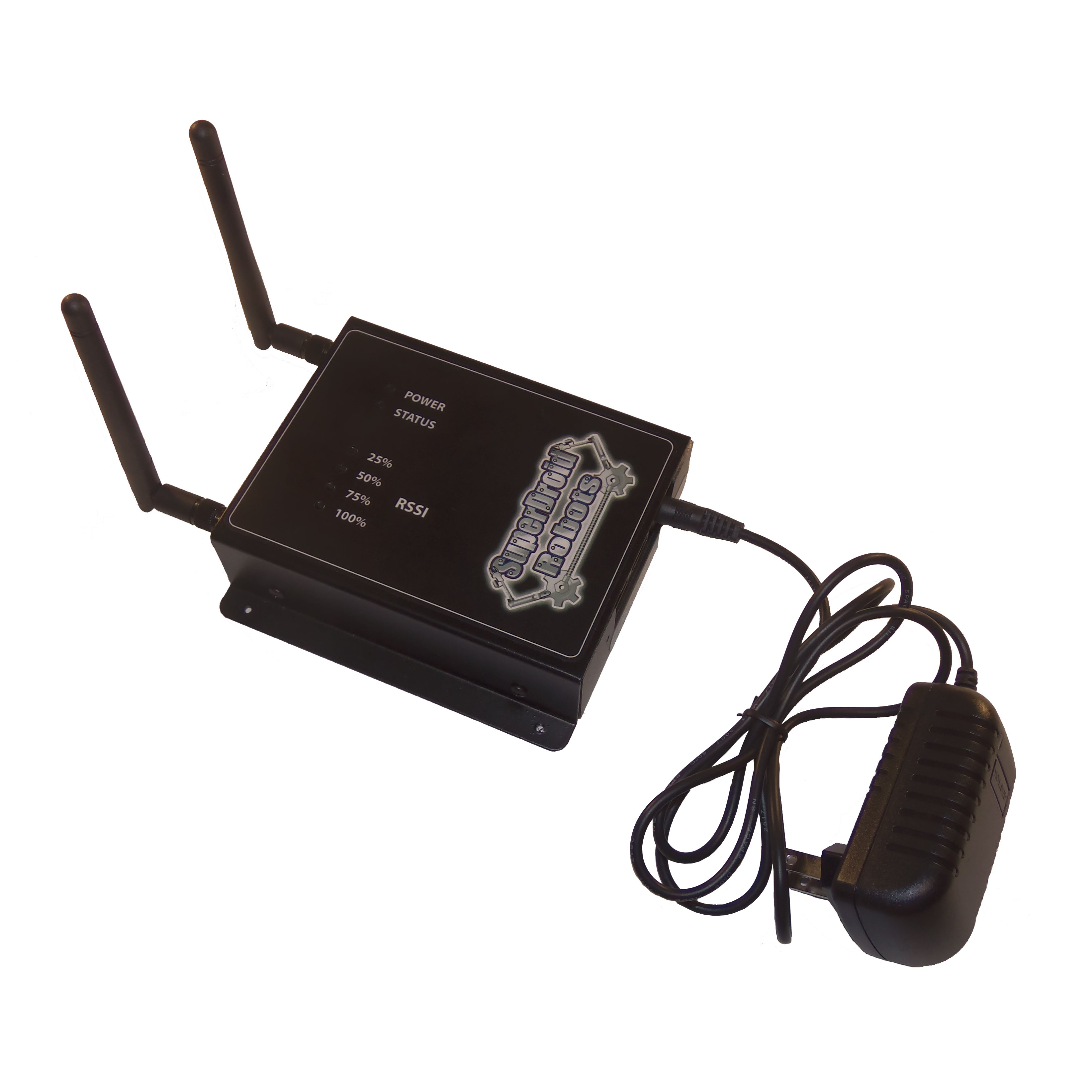

Developed by Ktron Wireless and packaged by SuperDroid Robots, this Wireless Ethernet Bridge was specifically designed for mobile robotic applications such as UGVs (Unmanned Ground Vehicles) and UAVs (Unmanned Arial Vehicles). The radio is 2.4GHz and 5.8GHz dual band and user configurable to best suit your applications. Field tested in our own robots, this bridge is capable of reliable line-of-sight control at a half mile range. For best results, elevate the antennas off the ground and antenna directions should be staggered.

If you need even more range, this radio is capable of being setup as a mesh network. Additional radios can be placed near the limits of your range to significantly increase the operating area of your UGV or UAV. Up to six radios may be used in a single mesh network. This makes the radio perfect for rapid deployment of multiple UGVs and UAVs.

The user configurable frequency settings are filtered by country. Simply select your country and you will be able to choose from the approved channels in your area. Depending on your application the radio can be configured to the 2.4 GHz and 5.8 GHz frequency bands. The individual radios can be disabled in the settings if desired.

Features and Specifications:

• Dual 2.4GHz and 5.8GHz radios @ 100mW power.
• User selectable compliance with FCC and CRTC approved radio.
• User Selectable channel(s). Auto frequency selection based on best frequency.
  • 2.4GHz range (depending on configuration settings and country selection): 2312MHz to 2502MHz.
  • 5.8GHz range (depending on configuration settings and country selection): 4920MHz to 6085MHz.
• Selectable Bandwidth 5MHz to 20/40MHz.
• Configurable Wireless Encryption.
• MIMO - multiple-input and multiple-output technology for better performance.
• Developed specifically for UGV and UAV applications to offer superior range and reliability.
• Mesh network capabilities to multiply your operating area.
• User configurable frequency and IP settings.
• Mesh Network Support. User Selectable modes, Access Point, Bridge, Repeater, etc.
• Tested at 0.5 miles line-of-sight on the ground, elevated antennas greatly extend the range.
• RSSI Signal Strength LEDs.
• (Qty 2) Ethernet ports.
• 12VDC operating voltage.
• Dimensions: 4.5” x 5” x 1.5”

Documentation and Support:

• Technical Drawing

Delivery:

• This item is built and configured to order. Usually ships within 1-3 days depending on volume.
