These gear motors are made with steel gears (not plastic or sintered metal). They run great and we've tested them extensively on our All-Terrain-Robots and Vectoring Robots. We sampled many other manufactures and the gears would strip or the windings would burn up, we had no failures with these.
We recommend controlling the motors with one of our motor speed controllers. See our motor controller support page for more information. We also recommend you use our wiring kit to wire your motors to control the electronic noise generated from any DC motor. See our motor wiring support page for more information.
The table below lists its characteristics. The images below show current and torque curves and dimensions. These motors have a stall torque of about 25 kgf-cm! They utilize a 1:27 gear reduction. The gear motor is 24VDC.
| Reduction Ratio |
Rated Torque |
Rated Speed |
Rated Current |
No Load Speed |
No Load Current |
| |
kgf-cm |
rpm |
mA |
rpm |
mA |
| 1:19 |
3.6 |
265 |
<900mA |
312 |
<450mA |
| Click on images for larger views |
 |
 |
 |

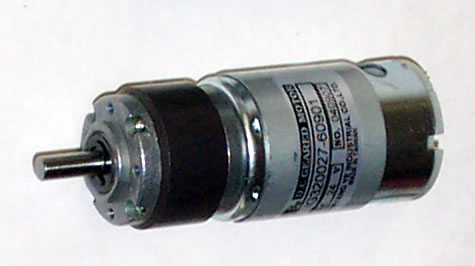

| Gear Motor |

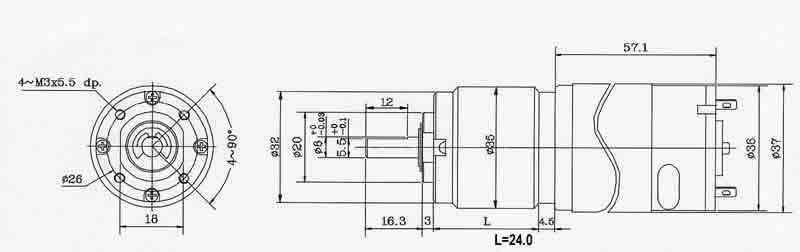

Dimensions |

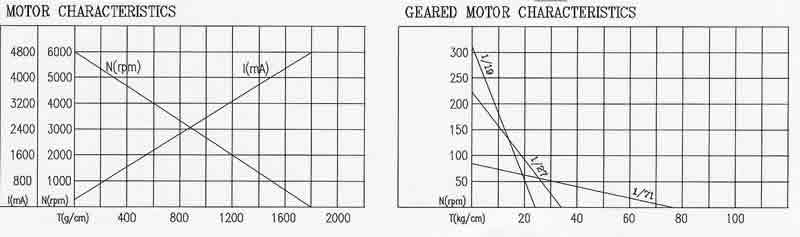

Torque/Current Curves |
For Conversion of the toque values, follow this link
