Patrol your property and checkup on things. Control these robots through your local Wi-Fi Network via your desktop, laptop, or tablet computer. SuperDroid Robots provides a custom control package that makes controlling the robot easy.
Category List
4WD WiFi Controlled Mobile Robot - IG42
Item Details
4WD WiFi Controlled Mobile Robot - IG42
Item Name:
4WD WiFi Controlled Mobile Robot - IG42
Item #:
TP-600-151
Manufacturer:
SuperDroid Robots
Adjusted Price:
Availability:
Built to Order: 2-4 Weeks
Quantity:

Product Image Gallery:

The image gallery displays possible configurations of this robot. See description and options below to configure your robot.

If assembly is chosen as an option below, this item will not qualify for free shipping.

Description:

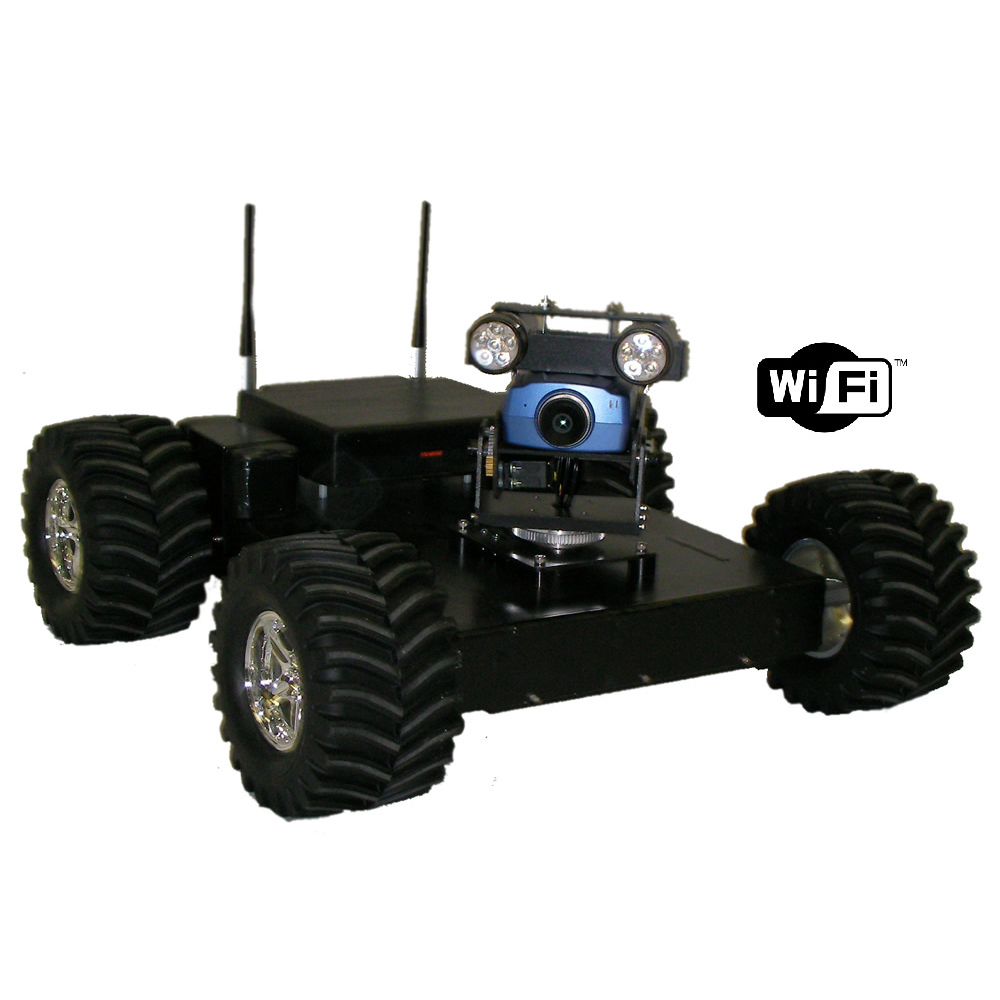

This is SuperDroid Robot's Wi-Fi All Terrain Robot, programmed and fully assembled. The robot is 4WD and is controlled from a PC over a Wi-Fi connection. Equipped with an IP camera mounted on a 360 degree pan and tilt system, it provides you with unparalleled vision.

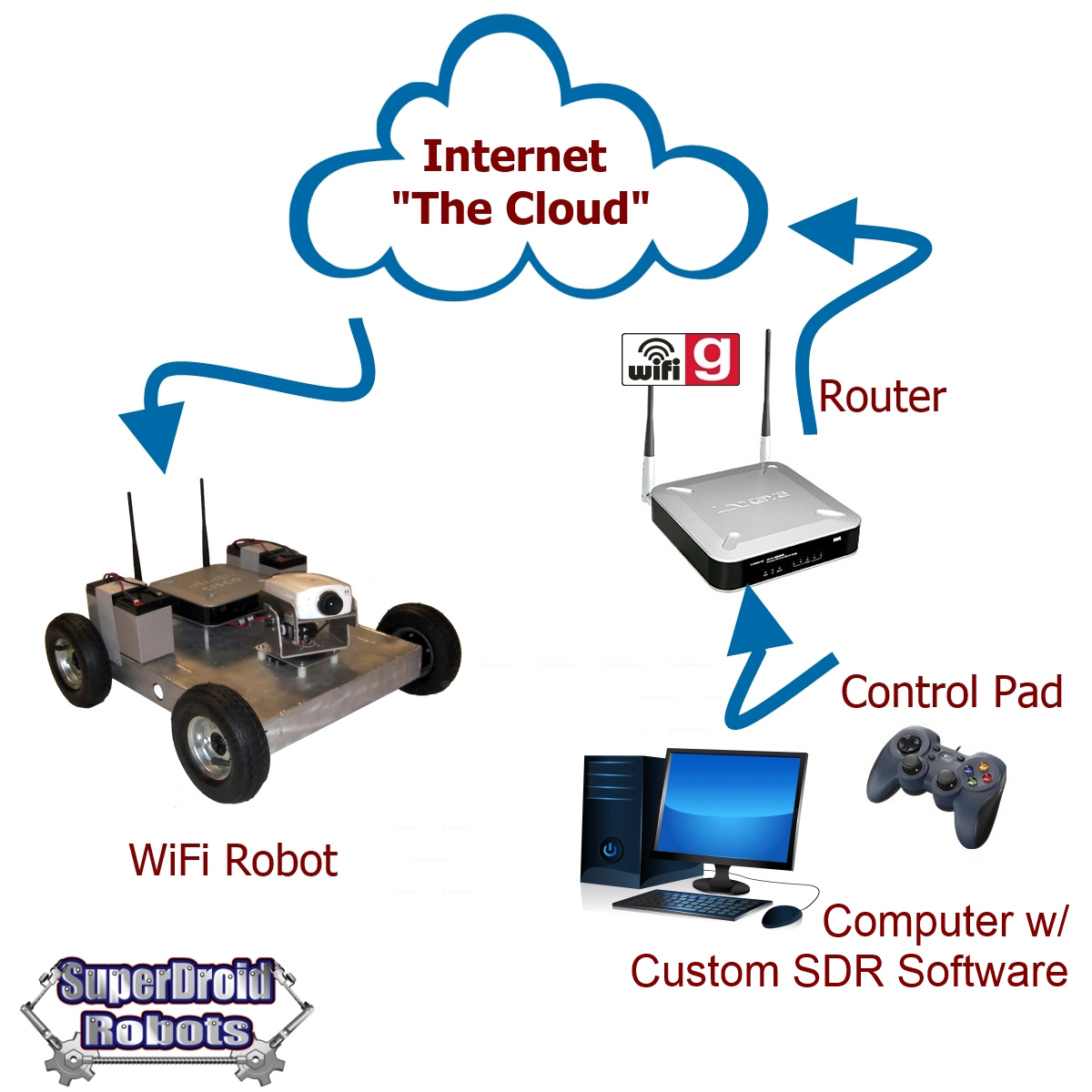

The Wi-Fi controlled IG42 ATR includes the complete robot, program, gamepad controller so you can drive the robot right out of the box. Thanks to the on-board wireless bridge, the robot can be configured to work from anywhere that has internet access with your program.

The robot itself is an extremely rugged well-built. This isn’t your ordinary WiFi robot. The wheels are axle mounted and are supported using sealed ball bearings. The motors are powerful, and it will move quickly and easily on most terrains. The rugged frame is made of 1/8" thick aluminum and hand welded.

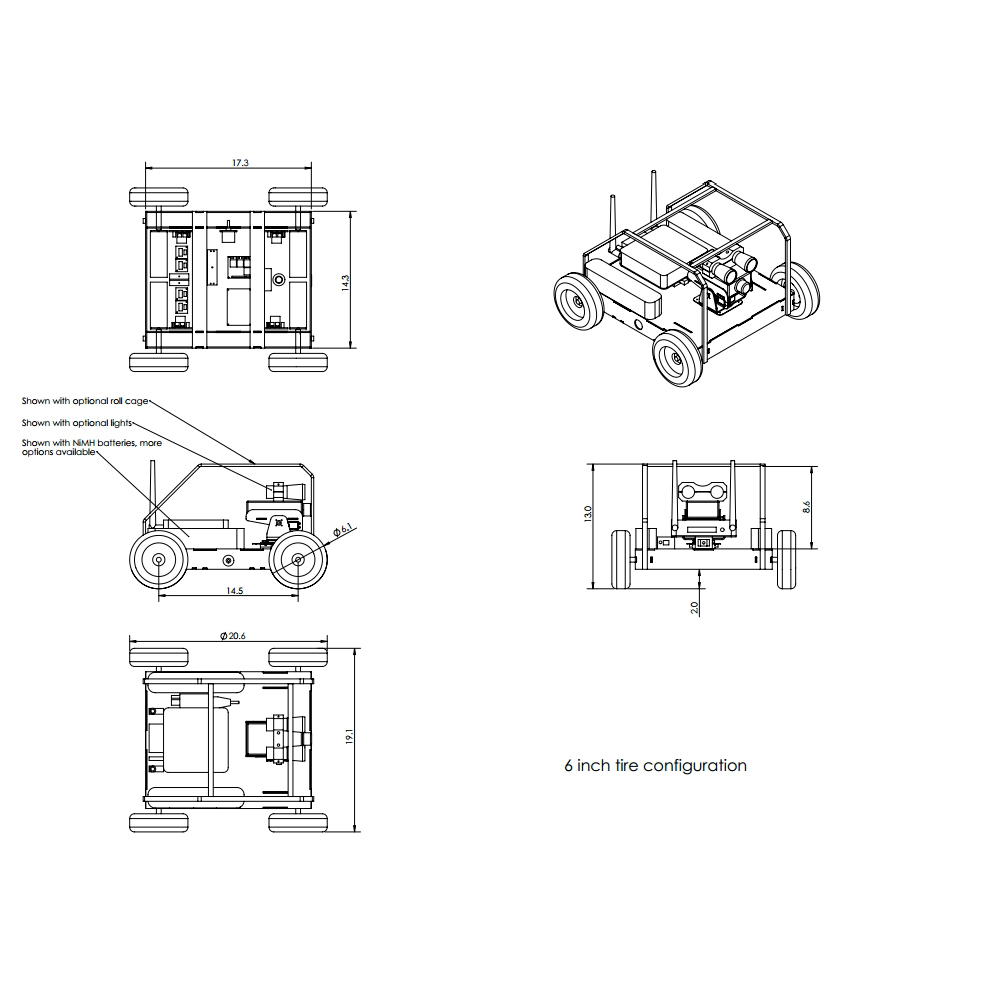

Outfitted with 6” pneumatic tires provides 2” of ground clearance. A total width (including wheels) is ~19.1" and the total length is ~20.6". The robot weighs about 30lbs and an additional 15lbs of payload in most terrains. The standard motors drive this robot up to 300 feet per minute. Powered by two 12V 7,000 mAhr SLA batteries provides 1.5 to 5 hours of use on a single charge, depending on use.

Applications:

  • Remote Monitoring - Compact, lightweight and fast you can control this robot from anwhere
  • Flexibility - Thanks to open aluminum chassis, it's quick and easy to attach or remove items. This makes the robot versitile for any task

Standard Configuration:

This robot comes with the recommended and most popular set up. By changing, adding or removing features at the bottom of this page you can configure the robot to suit your needs and budget.

Available Options:

(Selected Below)
  • Encoder Option: The motors can be upgraded to have encoders. The control board and software will be upgraded to read the encoder data so you can monitor how far the robot has traveled.
  • Wheel Options: You can select different style wheels if desired.
  • Battery Options: We offer many battery options. The more amp hours, the longer the run time will be.
  • Sandblast and Paint the Robot Chassis: This upgrade will include sandblasting and painting the robot chassis. The chassis is wire brushed aluminum as a standard item, which will not rust. If you select this option we will sandblast the chassis and aluminum parts and paint them.
  • LED lights: This option includes two LED lights mounted on the top of the camera. The lights will follow the camera with the pan and tilt. The lights will be wired to a control relay that is part of the Wi-Fi Custom Control Interface Package.
  • Zoom Camera: Upgrade the camera with a 27X Optical Zoom Camera, controls, and video server. The zoom camera will still be on a pan and tilt mount very similar to the pan and tilt for the IP Camera. The pan and tilt will be controllable via the SDR Wi-Fi control interface (same as the standard camera) and the zoom functions will also be added.
  • 2-Way Audio: This option will include a camera upgrade to allow 2-way audio and speakers mounted on the robot.

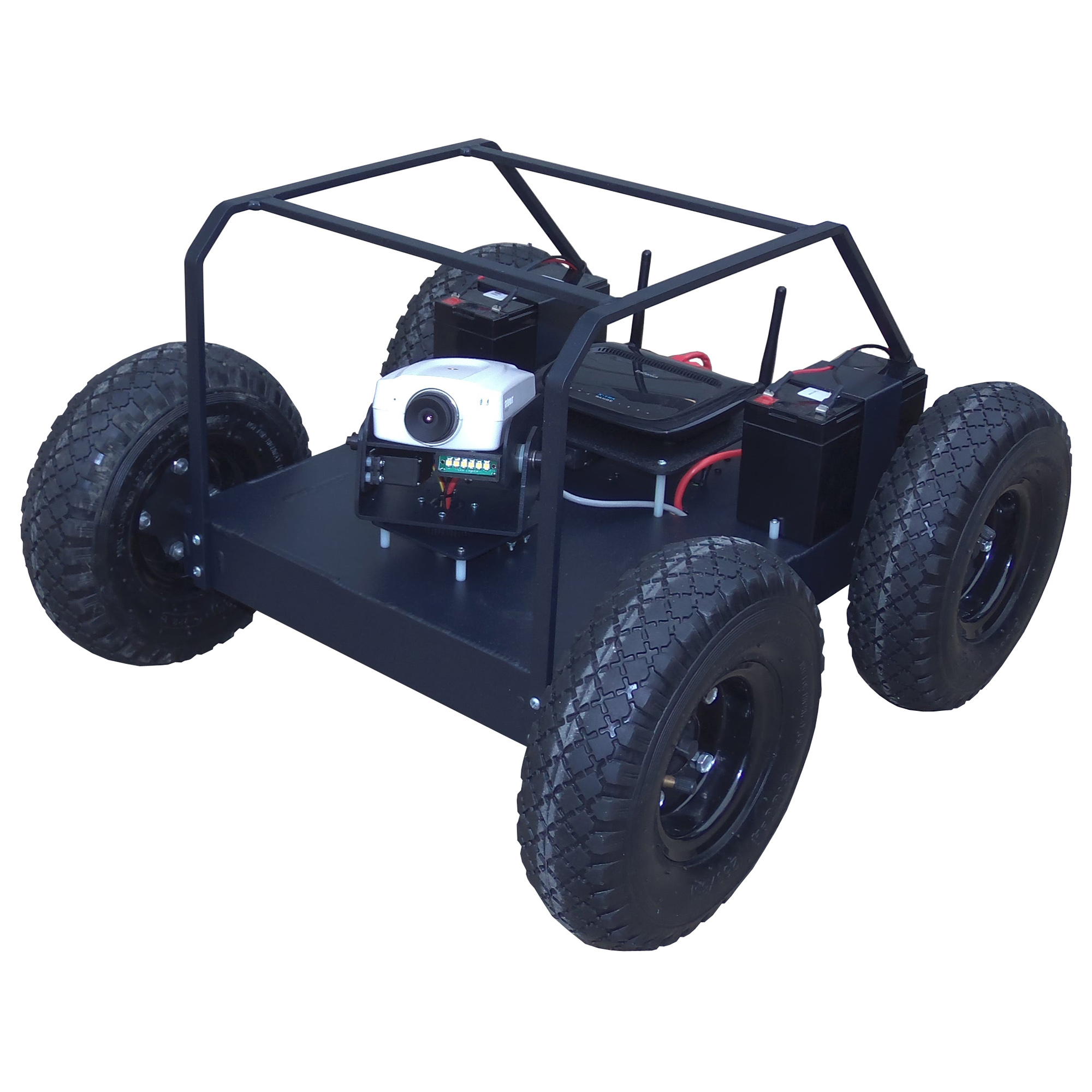

  • Roll Cage: The Roll Cage upgrade will include a roll cage and top cover mounted to the robot. The roll cage will protect the camera in the event of a roll over.

Contact us if you would like a custom configuration of this robot.

Documentation and Support:

Delivery:

  • This robot is built to order based on the options selected below. Please allow 2-4 weeks for shipment.
  • Actual delivery may vary based on workload, contact us for a more accurate delivery time.
  • Note that if Assembly is selected, this order does not qualify for free shipping.
  • Contact us if you need expedited delivery.

Video:

Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

This option upgrades the motors and controllers so encoder data can be displayed. See above for details.

Standard Motors
Upgrade Motors to Add Front Encoders (Add $490.00)

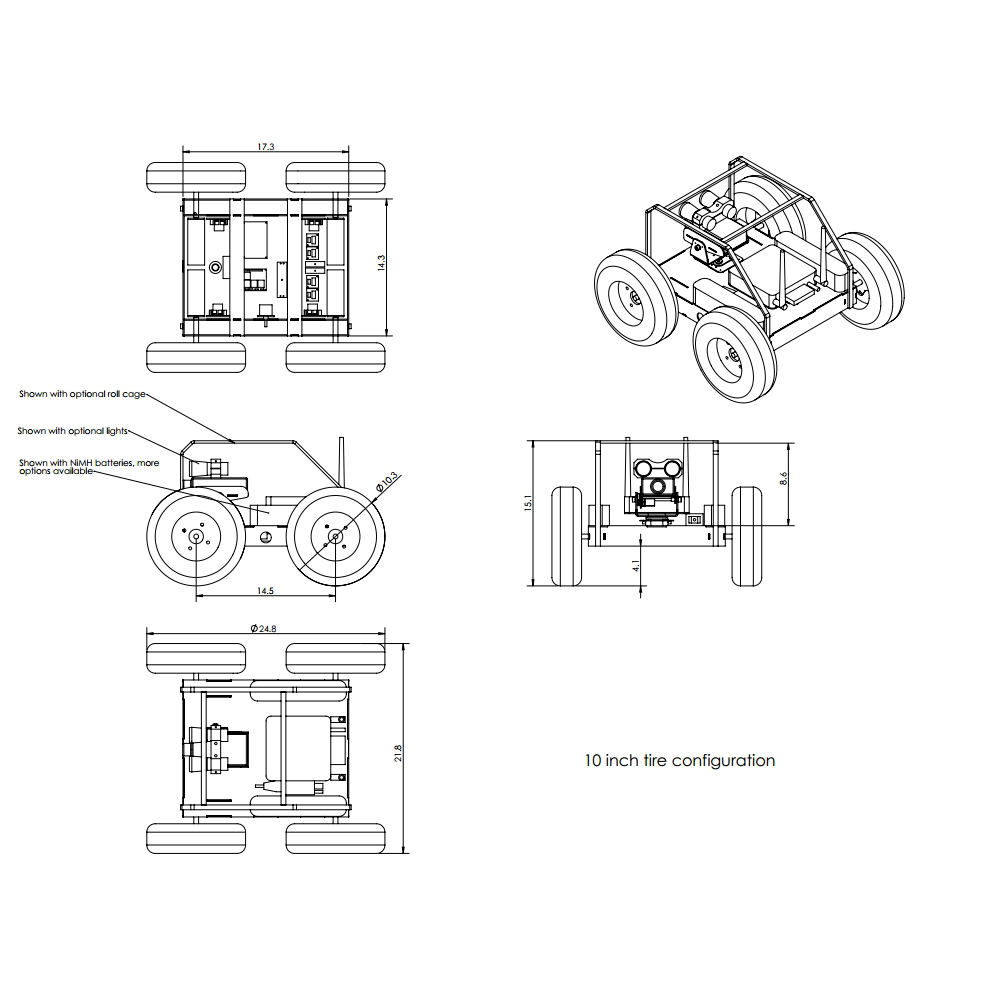

Select the desired wheels and shafts. This robot will fit 6" and 10" tires. It can also be equipped with 4" Omni Wheels.

Select the batteries you wish to use for your robot. See above for details.

Select this option if you want us to include appropriate charging system with you selected robot batteries

No Charger
Battery Charging system (Add $49.90)

Choose this option if you wish for us to sandblast and paint the robot chassis.

Standard Aluminum Finish
Sandblast and Paint ATR Chassis (Add $253.13)

This option includes LED Lights mounted on the camera system with power and controls.

No Lights
Add LED lights to Camera System (Add $112.00)

Select the Camera Option desired. All options come with Pan and Tilt.

Standard IP Camera
Upgrade to 27X Optical Zoom Camera with controls (Add $324.00)

The standard Wi-Fi package is audio from the robot back to the PC. Add the option for 2-way audio if you desire speakers and a 2-way IP camera installed on the robot.

Standard 1-Way IP Camera
Speakers and 2-Way Audio IP Camera (Add $159.00)

Select this option if you wish us to add a roll cage to the robot.

Item Price
Adjusted Price
$3,537.15




This is our larger IG42 motor WiFi robot kit programmed and fully assembled. The robot is 4WD and is controlled from a PC using a WiFi connection. The robot also has an IP camera mounted on a pan and tilt system so you can see where you are going.
