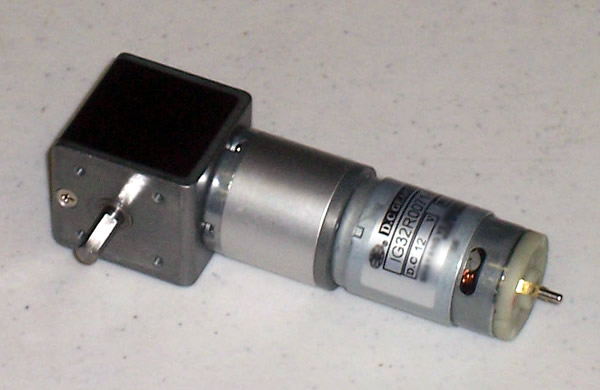

IG32 Right Angle 12VDC 060 RPM Gear Motor

Category
32mm Gear Motors
These Planetary Gearboxes are nominally 32mm in diameter with permanent magnet reversible DC motors. We carry 12VDC and 24VDC motors and range from 8 to 265 RPM. Several right angle gearboxes. Several motors have encoders.
Category List
• Specials
Specials
 IG32 Right Angle 12VDC 060 RPM Gear Motor
Item Details
IG32 Right Angle 12VDC 060 RPM Gear Motor
Item Name:
IG32 Right Angle 12VDC 060 RPM Gear Motor
Item #:
TD-035-060
Your Price:
$45.10
In Stock!
Quantity:

Product Image Gallery:
IG32 Right Angle 12VDC 060 RPM Gear Motor

Overview

  • Brushed permanent magnet DC motor
  • Variable speed and reversible
  • Planetary Gear Box followed by a right angle gear box
  • Final drive stages are steel gears (not plastic or sintered metal)
  • Tested extensively on our All-Terrain-Robots

Specifications

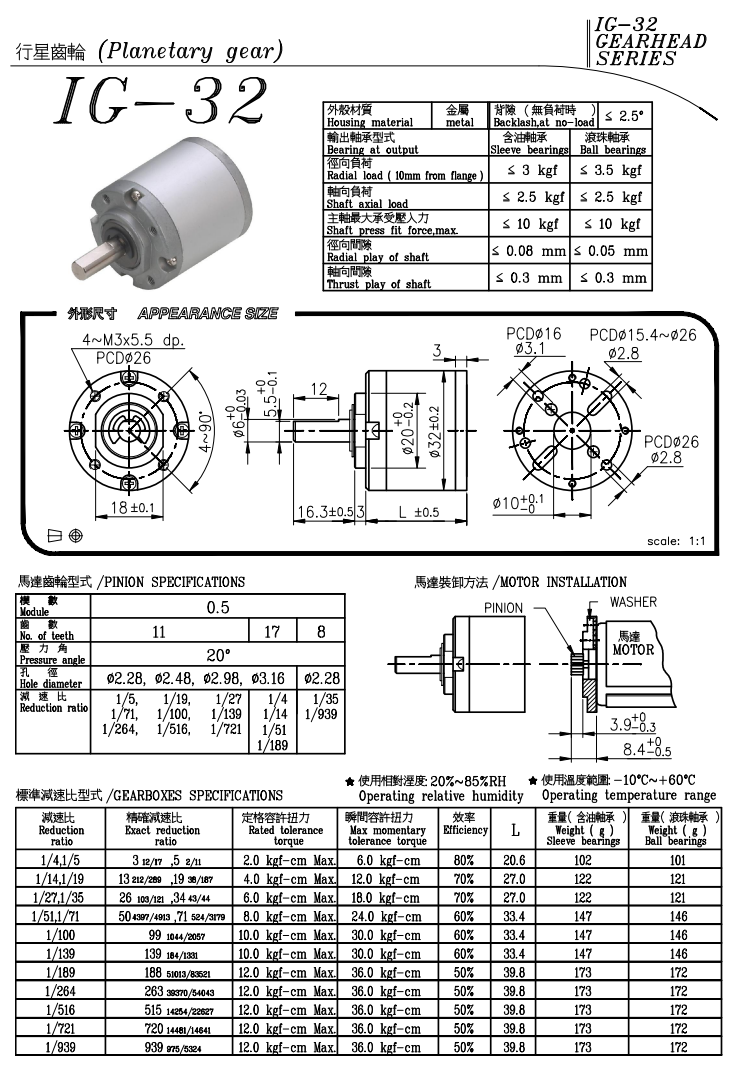

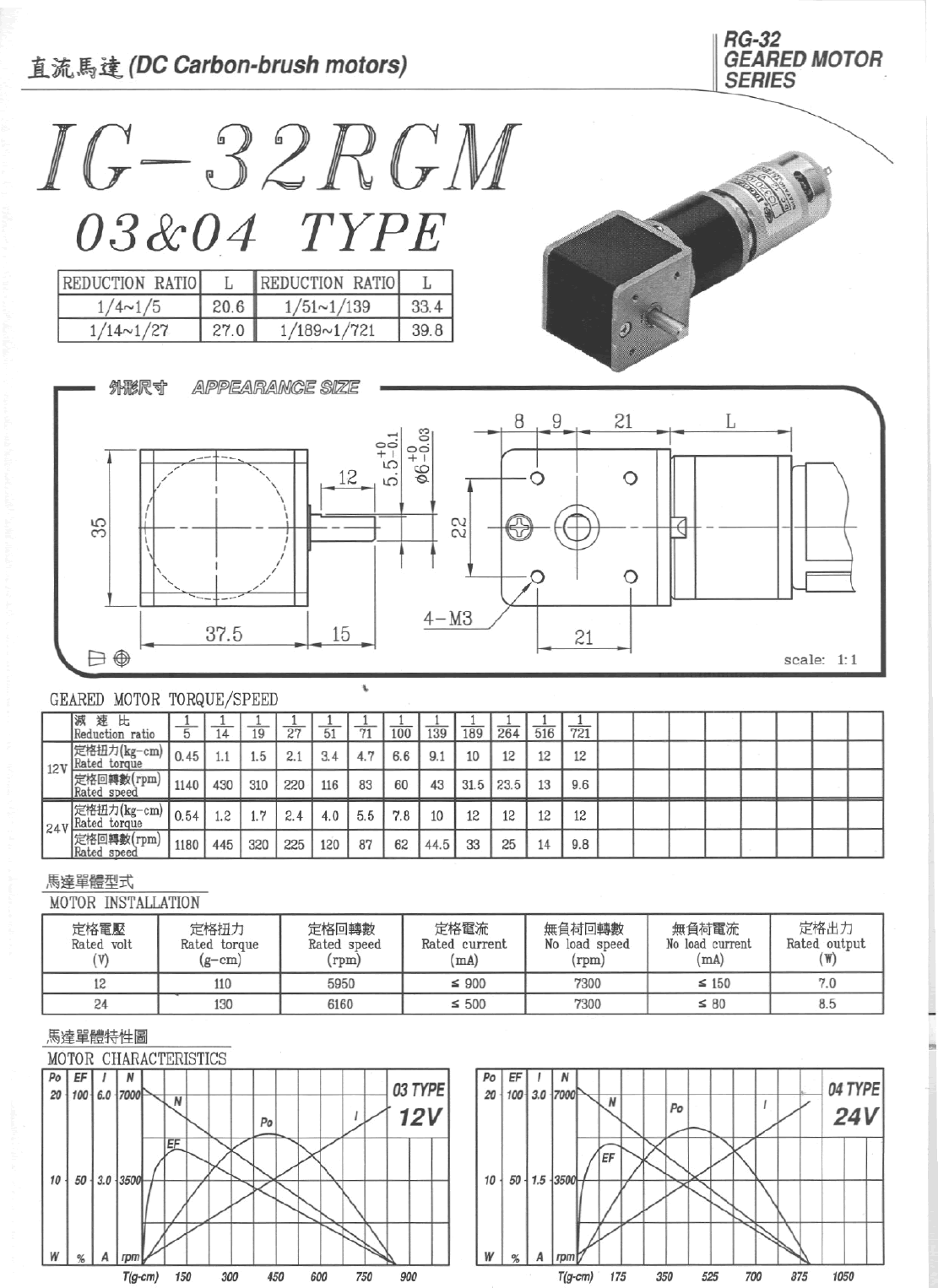

These specifications are listed with the "rated" values (these are the values where the motor runs at peak efficiency). The motors can deliver considerably more than their rated values, refer to datasheet images for more information.

  • 12VDC
  • Reduction Ratio: 1:100
  • Right Angle Spiral Bevel Gearbox (reversable and allows backdrive): 1:1
  • Rated Torque: 5.4 kgf-cm
  • Rated Speed: 60 RPM
  • No Load Current: < 150mA

For conversion of the toque values, follow this link

Recommendations

We recommend controlling the motors with one of our motor speed controllers. See our motor controller support page for more information. We also recommend you use our wiring kit to wire your motors. The hookup kit will help suppress the electronic noise generated from any DC motor. See our motor wiring support page for more information.


 These right angle gearmotors have a rated speed of 60 RPM and a gear reduction of 1:100. They work great on our robots as well as your own applications. These geared motors serve as excellent robot motors, but work great for other uses.
