This is a rugged frame made of 3/16" thick aluminum to accept our IG90 gear motors. The aluminum is all laser cut and CNC bent for an exact fit-up.
The IG90 ATR frame is 14" wide x 36" long. The sides are 2" high (bottom edge to top surface). As configured with 13" tiller tires shaft and wheel sets it has a ground clearance of about 5" and total width (wheel edge to wheel edge) of about 24". The length of chassis is about 41" (wheel edge to wheel edge). The overall height is just the wheel diameter of 13".
- (Qty 1) Custom ATR welded aluminum base for 90mm motors.
- (Qty 3) ATR Standard Wheel and Shaft Set Pair - 13 inch tiller
- (Qty 2) IG90 24VDC 127 RPM Gear Motor - TD-069-127
- (Qty 1) Spektrum DSMX DX6i Transmitter with AR6210 Receiver - TE-113-006
- (Qty 1) Sabertooth Dual 60A motor driver - TE-091-260
- (Qty 2) UB12350 SLA 12V, 35Ah battery
- This robot is Prebuilt, please allow 1-2 business days for shipment.
- This item requires freight shipping.

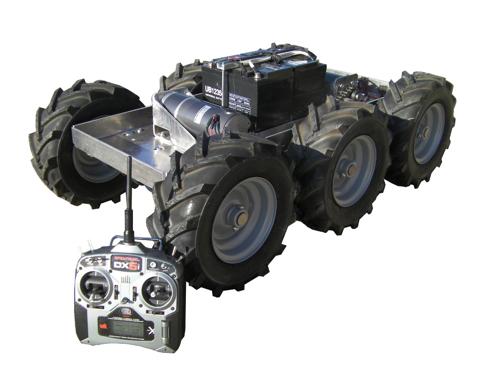

CUSTOM 6WD ATR RC with 90mm motors - SOLD
- Brand: SuperDroid Robots
- Product Code: TP-500-018
- Availability: Discontinued
