Used IG52-04 24VDC 010 RPM Gear Motor - DISCONTINUED

  • Used IG52-04 24VDC 010 RPM Gear Motor - DISCONTINUED
I have been diced

These are used gear motors that have been used for less than an hour; there is a set screw mark on the shaft (as pictured above).

These 24VDC Type 04 52mm diameter gear motors are made with steel gears (not plastic or sintered metal). The Type 04 motors have twice the torque as the Type 02 52mm diameter gearmotors and are more efficient! They are real stout motors. They weigh about 4.6lbs each. We sampled many other manufactures and the gears would strip or the windings would burn up, we had no failures with these.

We recommend controlling the motors with one of our motor speed controllers. See our motor controller support page for more information. We also recommend you use our wiring kit to wire your motors to control the electronic noise generated from any DC motor. See our motor wiring support page for more information.

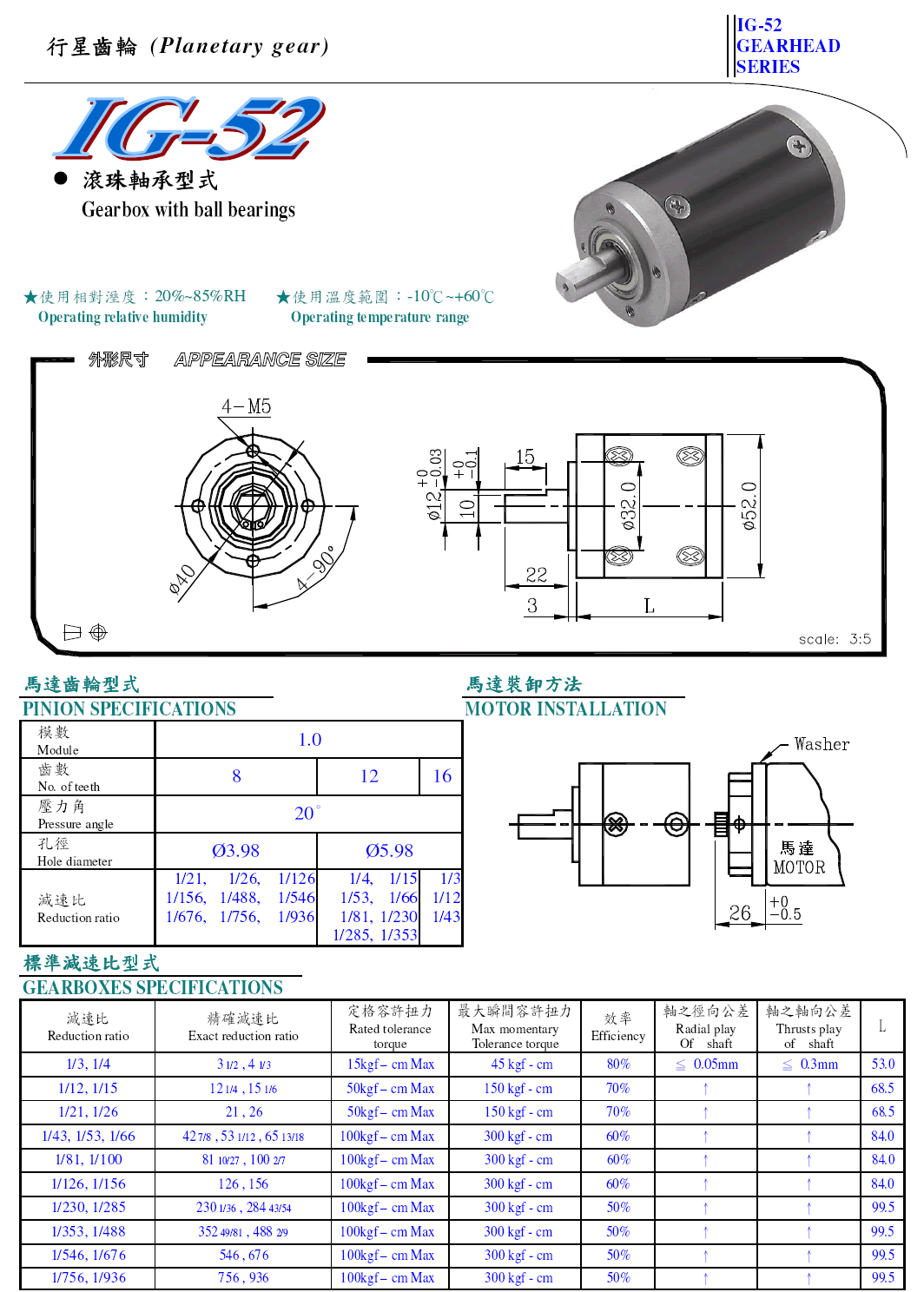

The table below lists its characteristics. The datasheet images below show the current and torque curves and the gear motor's dimensions. These motors have a calculated stall torque of >1000 kgf-cm! They utilize a 1:353 gear reduction. The gear motor is 24VDC.

Reduction Ratio Rated Torque Rated Speed Rated Current No Load Current
kgf-cm rpm mA mA
1:353 100 10.4 <2850mA <700mA

Used IG52-04 24VDC 010 RPM Gear Motor - DISCONTINUED

  • $138.40

This product is unavailable.

Contact us if you have any questions.
