Configurable - 4WD RC Snow Plow Robot Platform - WC DB
The gallery displays different options for this robot.Standard Configuration
This is a complete package that includes everything listed below. The package includes everything needed to make it run! The components and specifications are listed below for the default configuration. Other options are available at the bottom of the page.
- Welded aluminum chassis.
- 42" Snow Plow Blade with adjustable height and angle.
- Four powerful 75 RPM Wheel Chair Motors (one per wheel)
- 13 inch tiller wheels with solid steel axles.
- Qty. 2 12V 55Ah batteries providing 1-2 hours of operation depending on use (additional battery options are listed below).
- Includes battery charger.
- Sabertooth 2x60 Motor Controller.
- FlySky FS-i6 remote control.
- Qty. 2 150 lb. linear actuator with pulley system to raise and lower plow.
- Syren 10A Motor Controller for linear actuator.
- Other Electronics Components:
-
- Qty. 2 24V 40A Circuit Breaker.
- Qty. 1 main power switch.
- Qty. 1 waterproof electronics enclosure.
- This kit comes fully assembled.
- Specifications of this configuration:
- Drive Method: Direct Drive.
- Axle Mount: Direct Mount (DM) - the axles are mounted directly to the motor shaft.
- Speed: ~5 mph (120 RPM motors and 13" wheels).
- Dimensions w/o Plow (LxWxH): 57 x 32 x 23 inches (with plow straight ahead).
- Dimensions w/ Plow (LxWxH): 57 x 39.5 x 23 inches.
- Weight: 240lbs.
- Capacity: Payload of approximately 250lbs.
Documentation and Support
- Click here to view a CAD drawing of this robot.
- A complete manual is provided at the time of purchase.
- DB ATR Support Page.
Delivery
- This item is Built to Order 4-8 Weeks.
- Due to the size of this item, freight shipping is typically required. We will contact you after checkout with freight costs and arrangements.
- Need it faster? Contact us

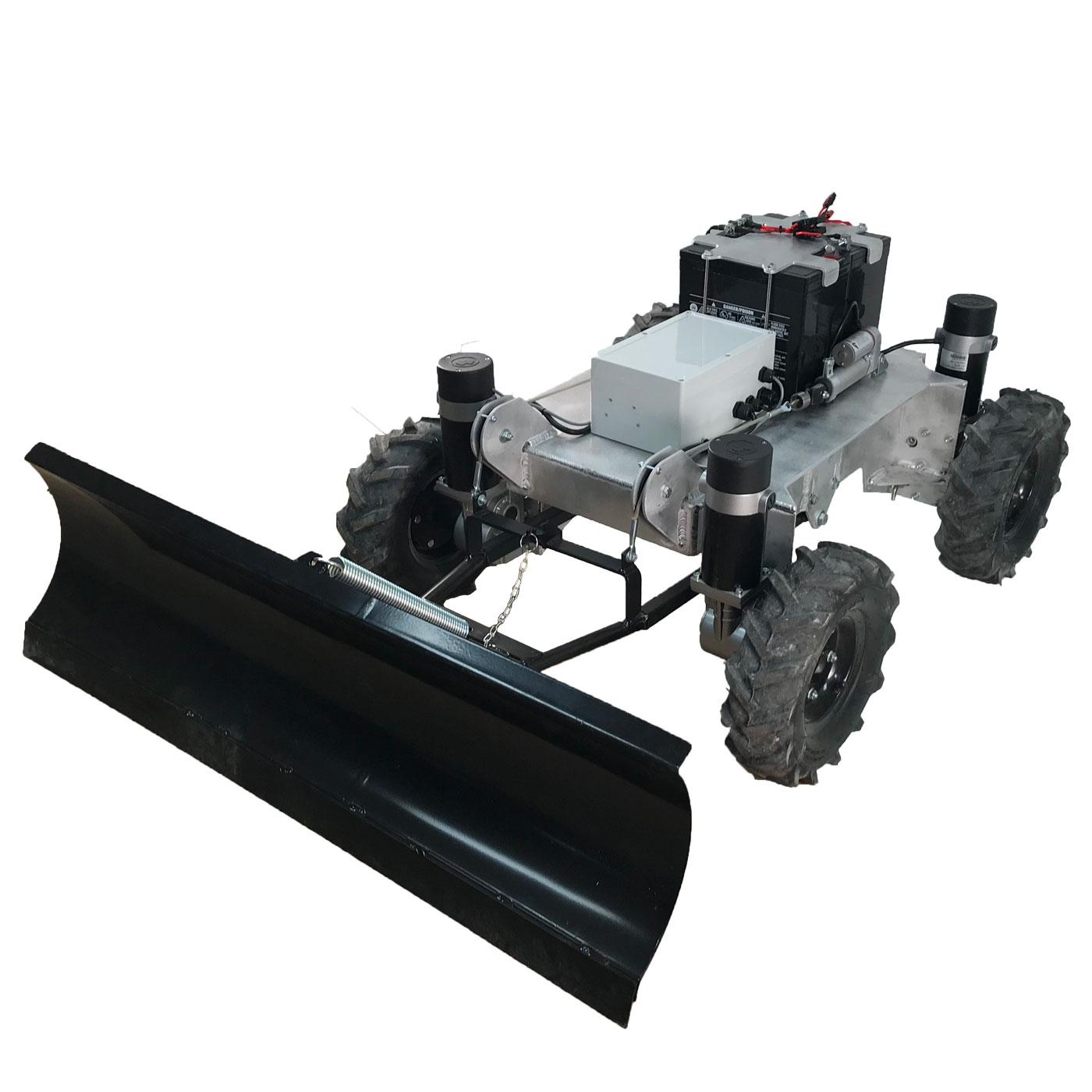

This is our 4WD Remote Controlled Snow Plow robot, a powerful and versatile platform with a snowplow mounted on the front. The plow is raised and lowered using a linear actuator and the angle is manually adjustable. It can drive up steep slopes and climb curbs with ease. The chassis is a rigid gusseted 3/16" thick aluminum frame. The plow can be removed by undoing four bolts on the front of the chassis and another on the linear actuator so you can use the robot for other purposes such as hauling/towing material and equipment.
The drive motors are powerful wheelchair motors, which are directly coupled to the wheels. This setup provides plenty of power, speed, and reliability. The robot uses differential steering (movement is based on two separately driven wheels placed on either side of the robot body). It can thus change its direction by varying the relative rate of rotation of its wheels and "pivot turn" in place. See our ATR page for more details about our All Terrain Robots. If you need this robot customized beyond the provided options below, Contact us.
Configurable - 4WD RC Snow Plow Robot Platform - WC DB
- Product Code: TP-191-004
- Brand: SuperDroid Robots
- Availability: Built to Order 4-8 Weeks
- This item does not qualify for free shipping
$17,850.00
Available Options
( Collapse All )- Aluminum 4WD Robot Chassis - WC DB
- (Qty 4) PCS-250 24VDC 75 RPM Wheel Chair Motor with Electric Brake
- (Qty 2) ATR Wheel and Shaft Set Pair - 13 inch Traction Lug - DISCONTINUED
- (Qty 2) Interstate 12 Volt 55 Ah Sealed Lead Acid Battery (SLA)
- FLYSKY FS-i6X 2.4G 6 Channel Transmitter & Receiver
- Sabertooth Dual 60A motor driver
- SyRen 10A Regenerative Motor Driver
- Manual linked on Item Page
- Complete Assembly
- Electronics Enclosure
