IG42-SB4-EA, Amphibious 4WD WiFi Robot - DISCONTINUED
- Remote Monitoring - Compact, lightweight and fast you can control this robot from anywhere
- Remote Surveillance - The 360 Pan and 90 degree tilt camera with 10X Optical Zoom allows the robot to see everything.
- Entry into difficult areas - This 4WD robot has the ability to traverse many obstacles that often stop other robots, including water.
This robot comes standard with the following features. Contact us if you would like a custom configuration of this robot.
- Chassis: Amphibious ATR Welded Aluminum Chassis for 42mm IG42 Motors
- Maximum Payload: 25 lbs (not in water)
- Motors: IG42 24VDC 78 RPM Gear Motor
- Motor Controllers: Sabertooth Dual 25A Motor Controller
- Dome Camera: PTZ camera under a dome. 360 degree pan, 90 degree tilt, 10X Optical zoom
- Perspective Cameras (Qty. 3): 10 IR Camera
- Video Server.
- Video Processor: Digital Color Quad Processor allowing you to toggle between different camera feeds.
- Batteries: (2) K2 12.8V LiFePO4 Battery Pack 9.6Ahr
- Interface: Programmable WiFi Custom Control Interface Package
- Weight: About 40lbs.
- Dimension: 23.7" wide x 32.4" long x 18.1" high
- Assembly: The entire robot will be assembled, configured, tested, and supported by our professionally trained staff here in NC.
Documentation and Support

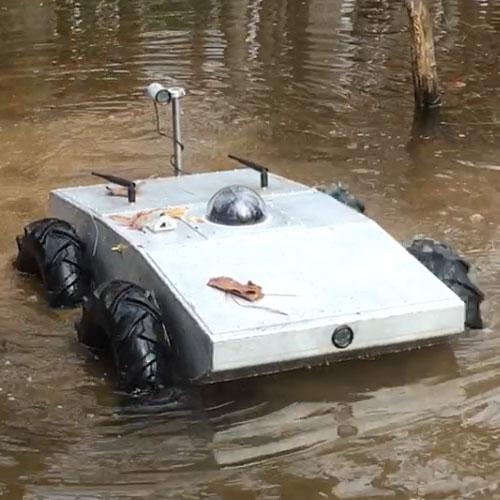

This is SuperDroid Robot's mobile Wi-Fi All-Terrain Amphibious Robot, programmed and fully assembled. The robot is completely waterproof and submersible and can navigate land and water. If the water is too deep to drive on the bottom, the robot floats and uses the wheels for propulsion through the water. It has four cameras two fixed IR cameras on the front and the back of the chassis, a 10X PTZ dome camera, and a spring-mounted IR camera for perspective driving. The robot is controlled with a PC using a Wi-Fi connection.
The Wi-Fi controlled IG42 Amphibious ATR includes the robot, program, gamepad controller, Wi-Fi Bridge, Ethernet converter, and control board. The drive, camera selection, and pan and tilt functions are all controlled as part of the control program, so you can drive and operate the camera with the provided gamepad controller or with your mouse and keyboard. If you set up your router with port forwarding, you can control and monitor your robot from anywhere that has internet access with your program. A VB.NET application is provided.
The robot itself is an extremely rugged well-built robot. The wheels are axle mounted and are supported using sealed ball bearings. This is a rugged frame made of 1/8" thick aluminum and includes our IG42 gear motors. The aluminum is all cut using CNC Plasma table for an exact fit-up and then hand welded.
As configured it has a ground clearance of about 3.1". The standard motors drive this robot up to 200 feet per minute. It includes the Wi-Fi Custom Control Interface Package. Powered by (2) K2 12V 10Ahr LiFePO4 batteries (with charger provided) providing 1-4 hours of use on a single charge (depending on use).
