Smart Charger for 11.1V Li-ion/Polymer Battery, 0.8A

  • Smart Charger for 11.1V Li-ion/Polymer Battery, 0.8A

Features and Specifications

  • Input
    • Voltage: 100 -240VAC
    • AC power plug type: USA
    • Current:0.2VAC
    • Max. input power:12W
    • Rating frequency:50/60Hz
  • Output
    • Vout: 12.6VDC 0.8A
    • Power off: CCCV charging mode, and power off when battery voltage reaches 4.2V
    • Connector Type: 4' 11" long 5.5 x 2.1 x 12mm male barrel connector
      • Inside barrel = positive (+)
      • Outside barrel = negative (-)
      • Included one Connector Adaptor: from 5.5mm x 2.1mm female Barrel plug to Clips
  • Dimension (LxWxH): 88mm(3.5") x 52mm(2.0") x 30mm(1.2")
  • Weight: 4.9 Oz (139grams)
  • Battery: 11.1V Li-Ion/Polymer Battery with capacity >=800mAh
  • Protection: Output shorted and overload protection
  • LED Indicator:
    • Red - Charging
    • Green - Fully charged
  • Efficiency: >70 %
  • Operate Temperature: -10oC(14o F) ~ +40oC(104o F)
  • Humidity: <+90
  • Charge time = (Ah rate of the pack x 1.5) / 0.8A charge current
    • 1000 mAh = 1 Ah

Documentation and Support

Warning

  • Review our Battery Terms here.
  • Only charge Li-Ion battery pack with capacity > 800 mAh. Don't use the charger for lower capacity Li-Ion battery pack.
  • Only charge Li-Ion battery pack with voltage 11.1V (3 cell pack). Don't use the charger for Lower voltage battery pack, which may cause battery explosion.
  • We are not responsible for any damage caused by user and misuse.

The charger is a smart battery charger designed to charge 11.1V Li-Ion/Polymer battery with capacity >= 800mAh. It uses delta-V technology to monitor and control the charging process.


Smart Charger for 11.1V Li-ion/Polymer Battery, 0.8A

  • Product Code: TE-140-111
  • Availability: This product or this version of the product is not being sold anymore.

This product is unavailable.

Contact us if you have any questions.

Related Products

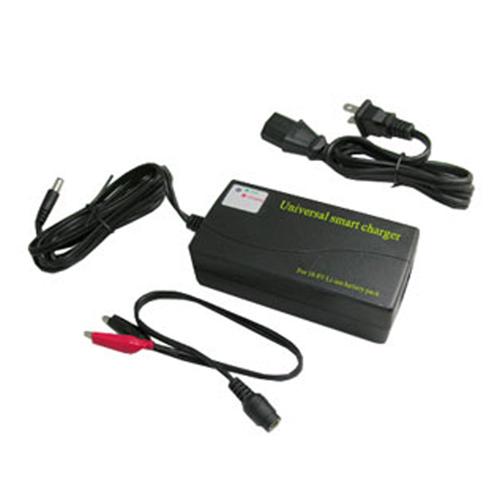

Smart Charger for 11.1V Li-ion/Polymer Battery, 1.8A
