Power Distribution and Regulator Board

Features and Specifications

  • Circuits: 4
  • Dimensions: 3.5" x 2"
  • 12V Outputs: 6
  • 5V Outputs: 6

The fuse block comes unassembled, and without fuses with the default item options on the bottom of this page.

The power distribution board features a 5V 5A regulator, and a 12V 2.2A regulator to supply your next project with power safely, and efficiently. The board can handle an input voltage of up to 36V and has 4 screw terminal outputs with automotive blade fuse holders to protect your components. The 5V, and 12V regulators each have 6 outputs that fit a JST-PA 2mm header.

Power Distribution and Regulator Board

  • $61.72


Available Options

( Collapse All )
None Selected
$0.00
(Qty 3) Molex 2-Pin JST-PA Secure Lock Connector Set - 5 Pack
$18.21
None Selected
$0.00
(Qty 6) 40A ATO / ATC Blade Fuse
$4.02
(Qty 6) 30A ATO / ATC Blade Fuse
$4.02
(Qty 6) 20A ATO / ATC Blade Fuse
$3.54
(Qty 6) 15A ATO / ATC Blade Fuse
$3.54
(Qty 6) 10A ATO / ATC Blade Fuse
$4.02
(Qty 6) 5A ATO / ATC Blade Fuse
$3.66
(Qty 6) 3A ATO / ATC Blade Fuse
$3.54
Unassembled
$0.00
Assembled
$20.00

Related Products

10A ATO / ATC Blade Fuse
10A ATO / ATC Blade Fuse

ATC and ATO blade fuses are standard sized fuses and are the most common type of fuse for automotive..

Product Code: TE-247-010

$0.67

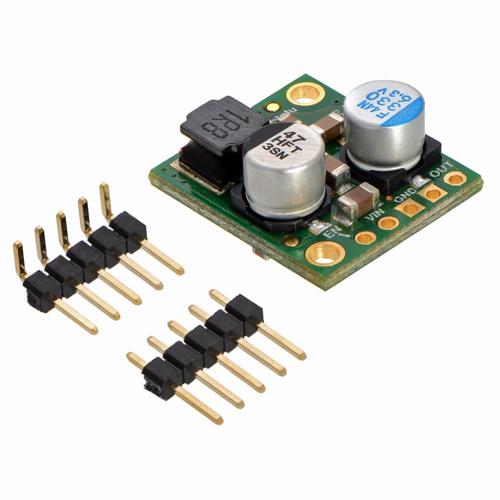

Pololu 5V, 5A Step-Down Voltage Regulator D24V50F5
