High Current Drivers

These are a must for driving any circuit over 20mA. The GPIO outputs from an Arduino, Raspberry Pi, or Beagle Bone do not have the capacity to drive much more than an LED. These boards allow you to easily drive higher current devices. It will drive up to 50V and 2 watts of power (1 watt per channel, but the channels can be paralleled for over 1 watt). The circuit can handle about 500mA continuously. The circuit also has inductive load transient suppression which occurs when driving such things as coils on relays.

All our high current drivers have 7 channels. All but the basic assembled board and one relay board have status LEDs which will light with a TTL (+5VDC) logic input. The boards that have relays are rated at 10A@120VAC. An external power source is plugged into the board that drives the loads. If you use the relays, then the supply needs to be either 5VDC or 12VDC. The 5VDC coils will draw about 60mA each. The 12VDC coils will draw about 37mA each.

If you want screw terminals as pictured, you can select that addition, else you can solder your wires right into the holes on the PCB.

Product Compare (0)
10A Relay Controller
10A Relay Controller

10A relay carrier with control circuity to open and close the relay using a microcontroller. Availab..

Product Code: TE-265-010

Discontinued

$9.90

30A Relay Controller
30A Relay Controller

30A relay carrier with control circuity to open and close the relay using a microcontroller. Availab..

Product Code: TE-265-030

Discontinued

$17.78

4 Relay, 7 Channel High Current TTL Driver Module
4 Relay, 7 Channel High Current TTL Driver Module

This item replaced TE-010-405 and TE-010-412. Select your relay option at the bottom of this page. 5..

Product Code: TE-249-040

Discontinued

$36.82

7 Channel High Current TTL Driver - SMD
7 Channel High Current TTL Driver - SMD

This is a must for driving any circuits that require more current than a microcontroller itself can ..

Product Code: TE-010-800

Discontinued

$11.42

7 Channel Relay Module
7 Channel Relay Module

There are 5V, 12V, or 24V relay options on the bottom of this page. The default relays shipped with ..

Product Code: TE-249-070

Discontinued

$38.30

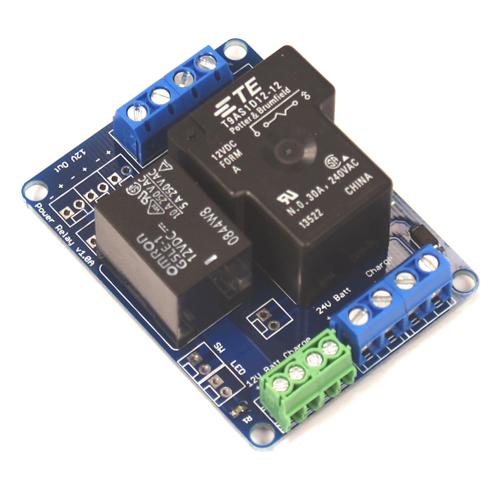

Basic Robot Power Distribution Module
Basic Robot Power Distribution Module

This our basic robot power distribution board. The module features screw terminal connectors for you..

Product Code: TE-248-110

Discontinued

$27.22

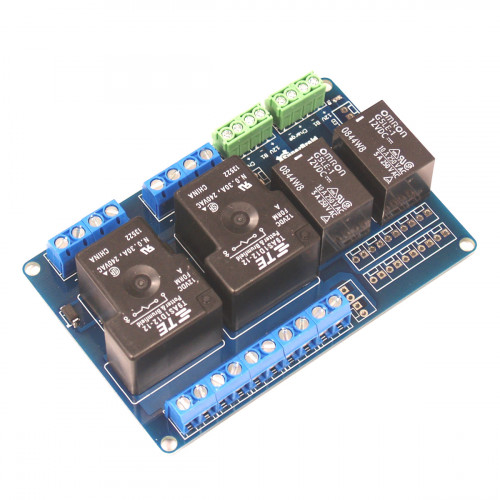

Deluxe Robot Power Distribution Module
Deluxe Robot Power Distribution Module

This is the deluxe version of our robot power distribution modules. The module features support for ..

Product Code: TE-248-220

Discontinued

$49.64

DPDT and SPDT Relay with TTL Driver
DPDT and SPDT Relay with TTL Driver

This is a must for driving any circuits over 20mA. TTL logic outputs from the Arduino, or your micro..

Product Code: TE-010-502

Discontinued

$35.58

Standard Robot Power Distribution Module
Standard Robot Power Distribution Module

This is an upgrade for the basic robot power distribution board. The module features additional powe..

Product Code: TE-248-120

Discontinued

$37.82

ULN2003APG High Current Driver - ON SALE
ULN2003APG High Current Driver - ON SALE

The ULN2003APG High Current Driver has 7 NPN Darlington arrays in a 16-SOIC package. This is perfect..

Product Code: TE-235-203

Discontinued

$1.00 $2.78

Showing 0 to 0 of 0 (0 Pages)
