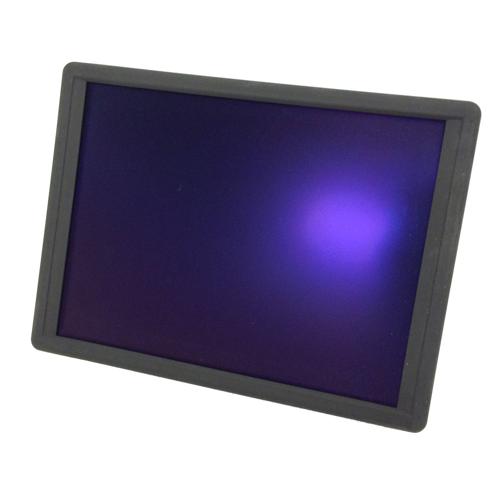

10.4 inch TFT LCD Vehicle Monitor - ON SALE
Specifications
- Size: 10.4 Inches
- asdfAspect: 16:9
- asdColors: 256k
- Native Resolution: 1024 x 768px
- VGA modes: VESA standard 640x480 to 1920x1440px
- Contrast 700:1
- Inputs: VGA, 3 x Composite Video Optional.
- Audio: 2x1W (stereo)
- Touch Panel: Resistive 4 wires. Endurance >2M touch. Optional 5W
- Power Supply: 6-36VDC automotive car/truck suitable
- Power Consumption: 8W
- Dimensions: 247.5 x 184.3 x 30mm
- Weight: 1.5Kg
- Enclosure: Aluminum chasis/rear. PVC-ABS front
- Operation temperature: -30 Degrees Celsius to 70 Degrees Celsius
- Storage temperature:-40 Degrees Celsius to 85 Degrees Celsius
- Vibrations: 1G 2-500Hz
- Shock: 20G 11ms
- Drop: 10cm max
The XF series provides the best interactive HMI solution for any embedded application. The XF series is specially designed to meet harsh environment such as sustaining extreme shock and vibration. By introducing some key features, such as using "all in one" lockable cable, and simple OSD interface for easy and convenience usage, including a dimmer shortcut key and autodimmer features.
10.4 inch TFT LCD Vehicle Monitor - ON SALE
- Product Code: U-100-000
- Availability: Discontinued
