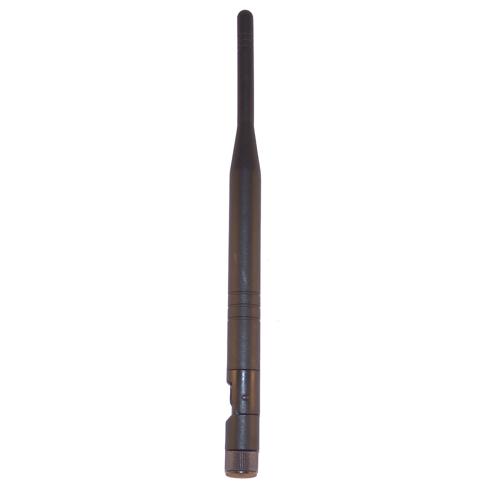

2.4 GHz and 5.8 GHz Dual Band RP-SMA 3dBi Antenna
Features and Specifications
- TriBand operation
- Flexible "Rubber Duck" antenna with RP-SMA Connector
- Better performance than most stock AP antennas
- Tilt and swivel design
- Optional Magnetic Mount Available
- Electrical Specifications:
- Frequency Ranges:
- 2400-2500 MHz
- 4900-5350 MHz
- 5725-5850 MHz
- Gain: 3 dBi
- Horizontal Beam Width: 360°
- Impedance: 50 Ohm
- Max. Power: 50W
- VSWR: < 2:1
- Frequency Ranges:
- Mechanical Specifications:
- Weight: .96 oz. (27 g)
- Length: 7.79" (198 mm)
- Max. Diameter: 0.51" (13.1 mm)
- Finish: Matte Black
- Connector: Reverse Polarity SMA Plug
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Polarization: Vertical
- Flame Rating: UL 94HB
- RoHS Compliant: Yes
Applications
- IEEE 802.11a, 802.11b, 802.11g and 802.11n (Pre-N, Draft-N, MIMO) access points and routers
- 2.4 GHz ISM, 5.3 GHz band, 5.8 GHz UNII/ISM band applications
- WiFi & WiMAX applications
- Bluetooth® applications & public wireless hotspots
- Homeland Security & Public Safety Services: Fire, Police, Security
Documentation and Support
The HyperGain Model HG2458RD is a high performance TriBand rubber-duck antenna designed to operate from 2.4 GHz to 2.5 GHz, 4.9 GHz to 5.3 GHz and 5.7 GHz to 5.8 GHz. The Multi-Band design of this antenna eliminates the need to purchase different antennas for each frequency. The TriBand design of this antenna helps reduce interference and noise since it will reject out-of-band signals between the three bands of this antenna. This omnidirectional "rubber-duck" antenna provides broad coverage and 3 dBi gain.
Measuring 7.79 " long, this flexible antenna features a tilt-and-swivel reverse-polarity SMA connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with reverse-polarity SMA connectors including D-Link®, Linksys® WET11 and others.
Application Note: This antenna is not for use with U.S.Robotics® RP-SMA equipped devices.
2.4 GHz and 5.8 GHz Dual Band RP-SMA 3dBi Antenna
- Product Code: TE-206-002
- Availability: 4 In stock
$5.27
