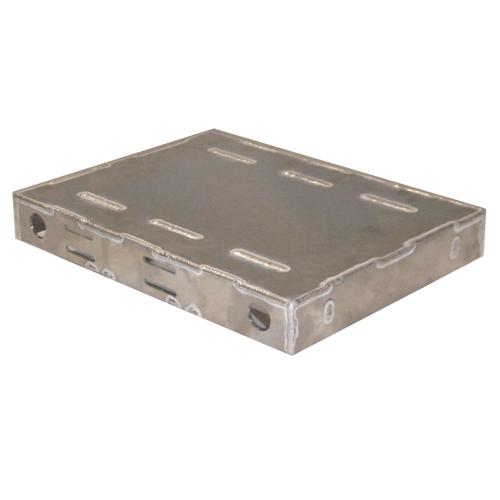

Welded Aluminum Heavy Duty 4WD Robot Chassis - IG52 DB

Features and Specifications

  • Dimensions: 14.25" x 18.25"
  • Weight: ~6 lbs (just the chassis)

Delivery

  • This item is Discontinued.
  • Need it faster? Contact us

This is our Heavy Duty ATR Chassis for 52mm motors. It is an extremely rugged well built chassis. It is made of 1/8" thick aircraft grade aluminum. The design uses all CNC cut parts with mortise and tenon design for precise alignment and mating of the parts. It has the ability to drive around with very heavy loads. Look at our ATR building page and follow the various links to learn more about the robots size and capacity. The wheels are axle mounted and supported using two sealed ball bearings.

Each of the four axles are driven by a large and powerful IG52 Gear motor via a roller chain to yield a very smooth and slip free mode of operation. This robot is designed for loads greater upto 150lbs. For loads greater than 50lbs you need to go with lower gear ratio motors. The biggest issue with weight is pivot turns on carpet and grass takes a great deal of torque to skid steer. See our ATR page for more details.

If you want to implement speed control or keep track of the wheels movement/distance traveled, you can also select gear motors with encoders.

There are slots in the side panels that allow easy assembly of the motor and chains and adjustment of the chain tension. The motors and transmission allow this robot to climb walls.


Welded Aluminum Heavy Duty 4WD Robot Chassis - IG52 DB

This product is unavailable.

Contact us if you have any questions.
