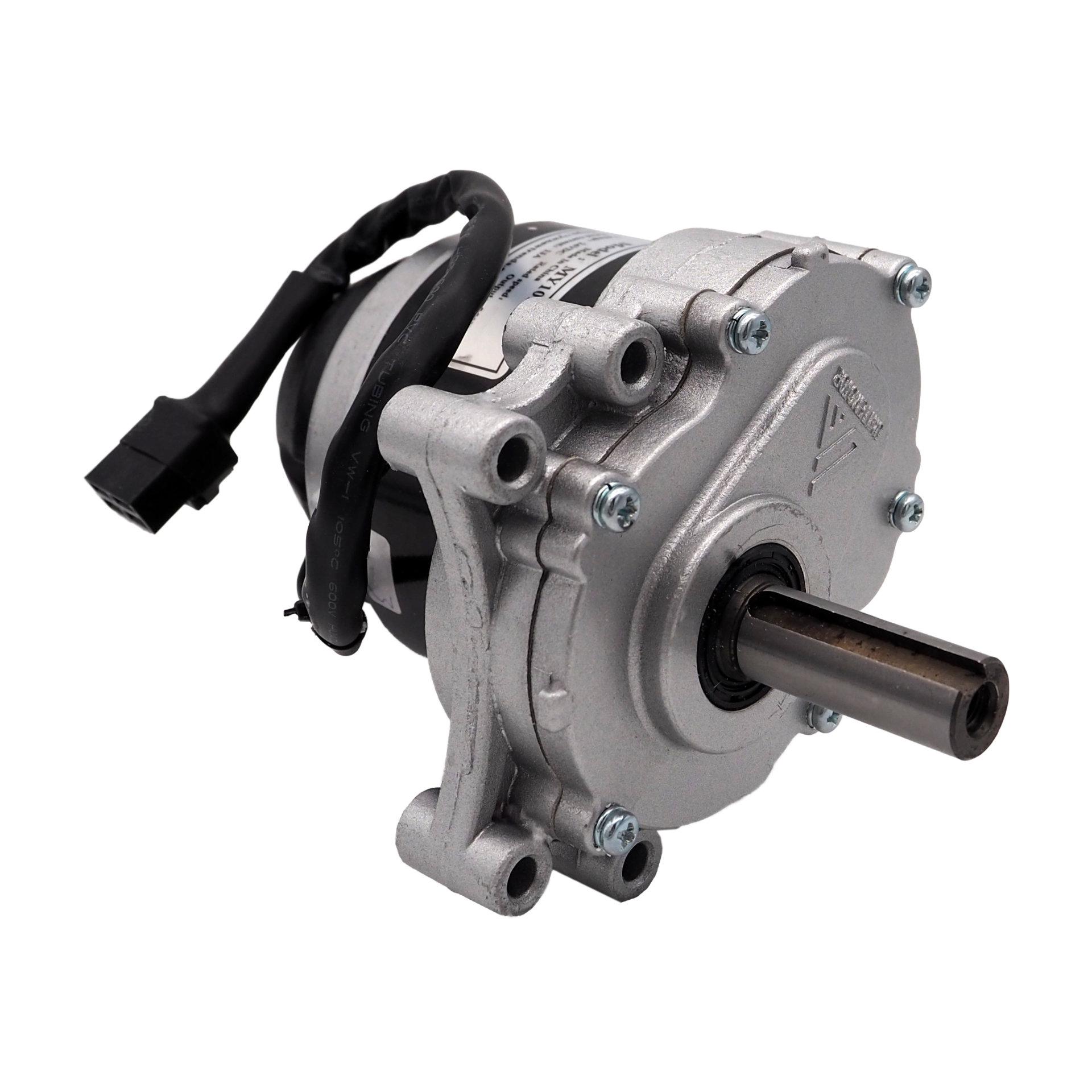

PCS-250 24VDC 75 RPM Wheel Chair Motor with Encoder
Specifications
- Rated Power: 250W
- Output Speed: 75RPM
- Rated Voltage: 24V
- Motor Length: 80mm
- Motor Diameter: 102mm
- Shaft Size: 17mm with keyway
- Weight: 7lbs 3oz
Documents
- Motor Datasheet
- STEP File (Please note that this model is not 100% accurate but it works for our purposes).
- Wiring Diagram
Shipping
Due to the weight of these items, they do not qualify for free domestic shipping.
Video

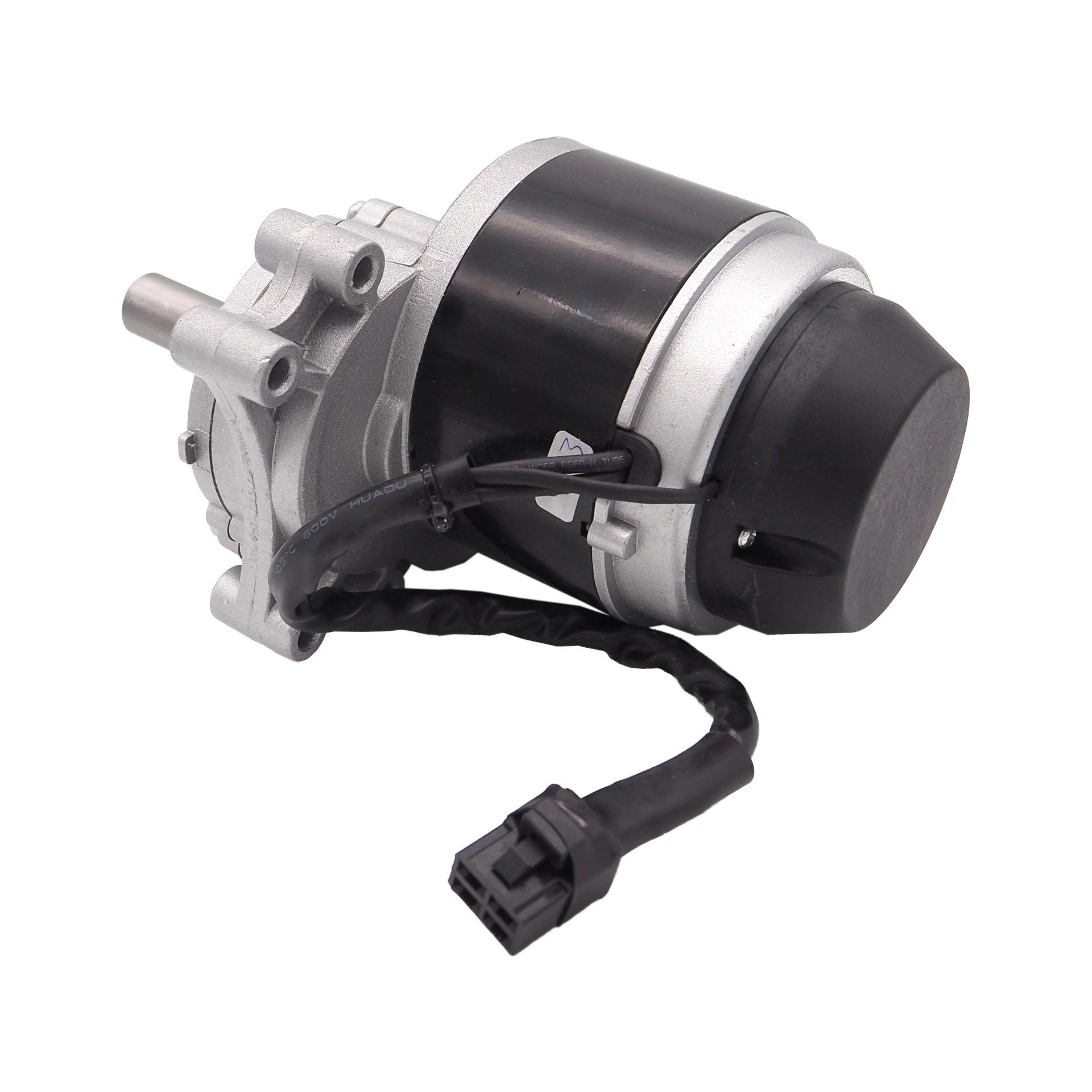

This is a wheelchair motor and with spur gearbox and optical encoder. If you want this motor without the encoder, follow this link. They make great motors for heavy-duty robots, providing higher payload capacities, power, and performance. The encoder feedback makes this motor an excellent choice for an autonomous robot. Unlike many wheelchair motors, these do not have a left and right hand version and are sold individually. We have tested a lot of motor and gearbox combinations and these work very well for our purposes.
We use US Digital Encoders on these motors when the option is selected below.
PCS-250 24VDC 75 RPM Wheel Chair Motor with Encoder
- Product Code: TD-371-075
- Availability: Discontinued
This product is unavailable.
Contact us if you have any questions.Available Options
( Collapse All )- E2 Optical Kit and Encoder - 8mm
- PCS-250 24VDC 75 RPM Wheel Chair Motor with Electric Brake
- Remove Brake and Mount Encoder
