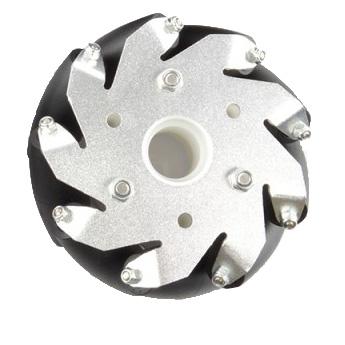

4 inch Nexus Mecanum Wheels - Plastic Sleeve Bearing - Set of 4
Features and Specifications
- Number of wheels: 4 (2 left, 2 right)
- Diameter of each wheel: 100mm
- Width of each wheel: 50m
- Roller Bearing: Plastic Sleeve Bearing
- Body material: Aluminium alloy
- Roller material: Rubber
- Net weight: 400g X 4
- Extra Hardware: (12) 60mm bolts
Available Options
We also sell hubs to mount these wheels to a drive shaft. You can select if you'd like to purchase one of these hubs in the options on the right side of the page.
Documentation

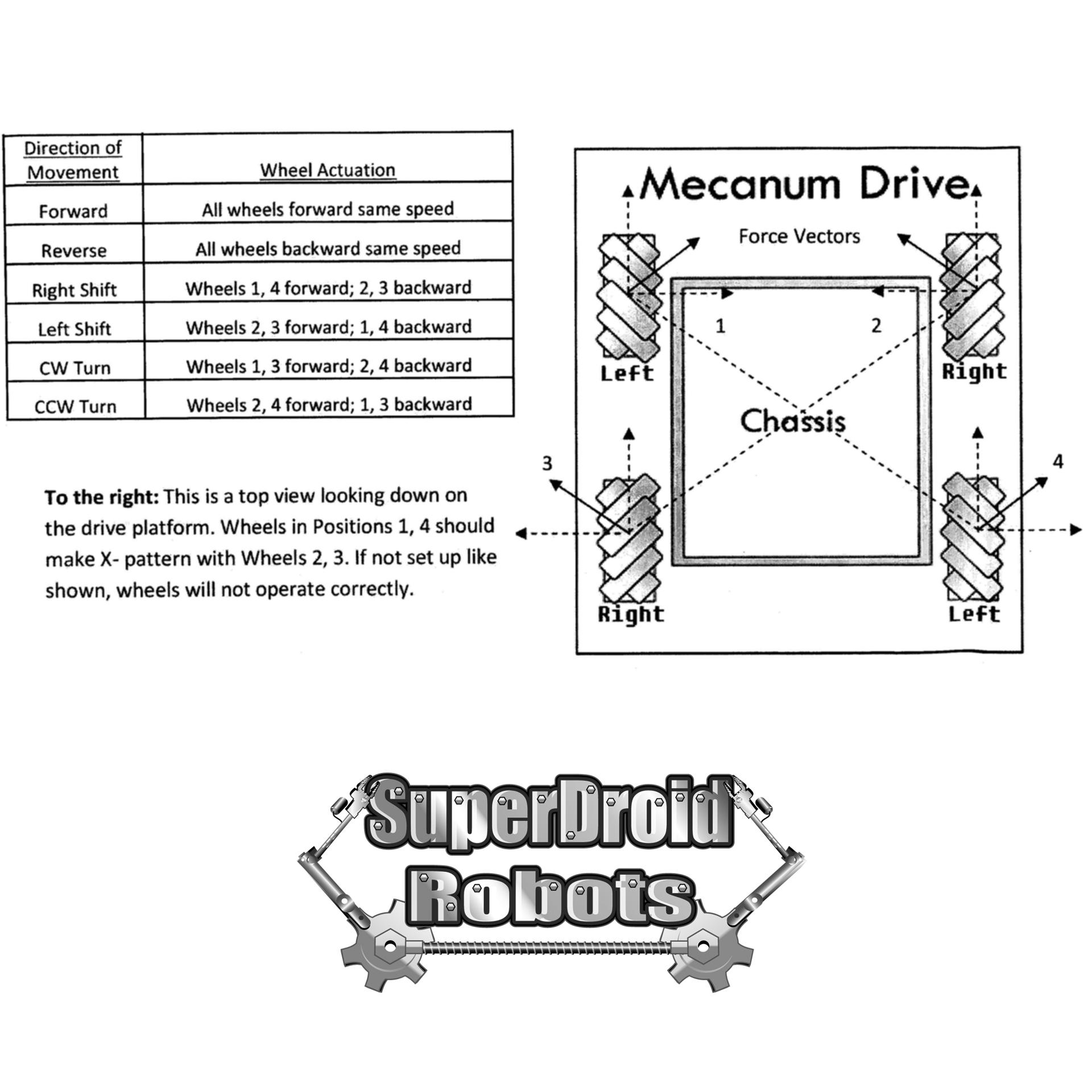

The 4 inch (100mm) aluminum Mecanum wheel is comprised of a series of rollers, mounted so that their axis of rotation is 45 to the axis of the main wheel. As the wheels rotate in sync, the vehicle moves forward or in reverse normally, but by spinning pairs of wheels in opposite directions, the rollers enable sideways movement. Put it all together and you can move forward, backward, laterally, diagonally, or spin in a circle. Also included are twelve extra bolts (60 mm long) for bolting on the 6mm Nexus aluminum wheel hub or the 8mm Nexus aluminum wheel hub.
Each roller is supported by plastic sleeve bearing. These wheels will not support as much weight as our other 4" Mecanum Wheels with Ball Bearings.
4 inch Nexus Mecanum Wheels - Plastic Sleeve Bearing - Set of 4
- Product Code: TD-169-100
- Brand: Nexus
- MPN: 14162
- Availability: Discontinued
