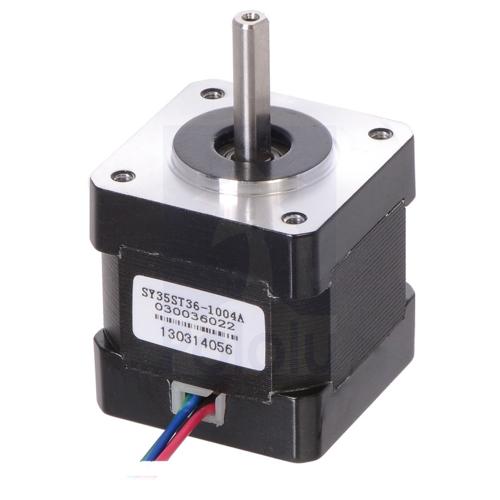

Stepper Motor Unipolar/Bipolar 200 Steps per Rev 57×56mm 7.4V 1 A per Phase
Applications
Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:
- Printers
- CNC machines
- 3D printer/prototyping machines
- Laser cutters
- Pick and place machines
- Linear actuators
- Hard drives
Features and Specifications
- Size: 56.4 mm square × 56 mm, not including the shaft (NEMA 23)
- Weight: 0.7 kg (25 oz)
- Shaft diameter: 1/4″ (6.35 mm) “D”
- Steps per revolution: 200
- Current rating: 1 A per coil
- Voltage rating: 7.4 V
- Resistance: 7.4 Ohm per coil
- Holding torque: 9 kg-cm (125 oz-in)
- Inductance: 10 mH per coil
- Number of Leads: 6
- Lead length: 12 in
Documentation and Support
This NEMA 23-size hybrid stepping motor can be used as a unipolar or bipolar stepper motor and has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 7.4 V, allowing for a holding torque of 9 kg-cm (125 oz-in).
This high-torque hybrid stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 7.4 V, allowing for a holding torque of 9 kg-cm (125 oz-in). The motor has six color-coded wires terminated with bare leads that allow it to be controlled by both unipolar and bipolar stepper motor drivers. When used with a unipolar stepper motor driver, all six leads are used. When used with a bipolar stepper motor driver, the center-tap yellow and white wires can be left disconnected (the red-blue pair gives access to one coil and the black-green pair gives access to the other coil). We recommend using it as a bipolar stepper motor.
Stepper Motor Unipolar/Bipolar 200 Steps per Rev 57×56mm 7.4V 1 A per Phase
- Product Code: TD-119-000
- Availability: 22 In stock
$52.14
