Configurable - Electric Lawn Mower Chassis Upfit Robot Package

The gallery displays different options for this robot.

Standard Configuration

  • The robot weighs about 180lbs with motors, batteries, and lawnmower.
  • Steel Frame Robot Chassis for a 20" deck.
  • All the electrical connectors, wires, etc. and hardware needed to get you started.
  • 13" pneumatic drive wheels, 6" pneumatic caster wheels.
  • PCS-250 24VDC 120 RPM Wheel Chair Motor. New design as of March 2021.
  • 2x60 Motor controller (Qty 1)
  • 12V 35Ahr SLA batteries (Qty 2).
  • Battery charger.
  • Unpainted. (you can select for us to paint it in the options below)

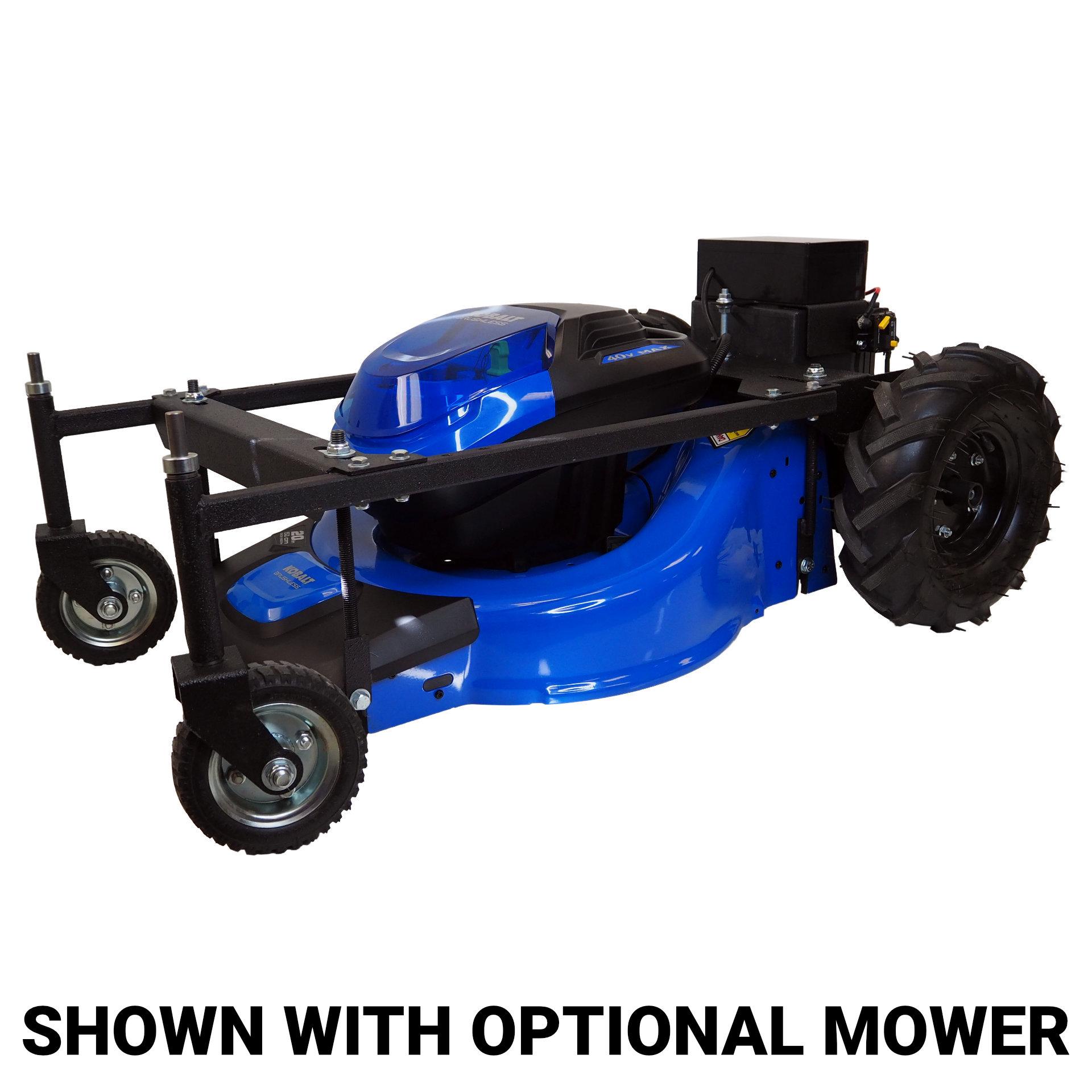

  • Lawnmower NOT included. (you can select for us to include the lawnmower in the options below by selecting for us to assemble the robot and mower together. The mower will be included in that assembly price)
  • Unassembled, Manual included. Or you can select the full assembly and we will assemble and test it for you.
  • Specifications of this configuration:
    • Drive Method: Direct Drive.
    • Axle Mount: Direct Mount (DM) - the axles are mounted directly to the motor shaft.
    • Speed: ~5 mph (120 RPM motors and 13" wheels).
    • Dimensions (LxWxH): 41 x 26 x 19 inches.
    • Weight: Approximately 140lbs.
    • Capacity: Payload of approximately 100lbs.

Available Options

(Selected Below)

The standard items and options are listed below. They are listed as links and can be clicked to view further details. We offer different motors, batteries, etc. so you can configure the robot to your exact needs. The weight of the robot, its capacity, speed, etc. depends on the robot's configuration. The item details of the options listed below will specify weights, sizes, etc.

  • Motors
  • RC Controllers
  • Custom Paint
  • Lawnmower
  • Professional Assembly


  • This item is Built to Order 2-4 Weeks.
  • Assembly will add approximately 1 week.
  • Due to the size of this item, freight shipping is typically required. We will contact you after checkout with freight costs and arrangements.
  • Need it faster? Contact us


This is a configurable robot kit with selectable options at the bottom of the page. The options are pre-selected to reflect our recommended configuration but can be changed to suit your needs. If you're interested in a gas mower kit, click here.

This mower is not recommended on slopes steeper than 20°. While it has the power to go up steeper inclines the caster wheels may cause the mower to swing off it's intended course. See our 4WD slope mower for mowing slopes steeper than 20°.

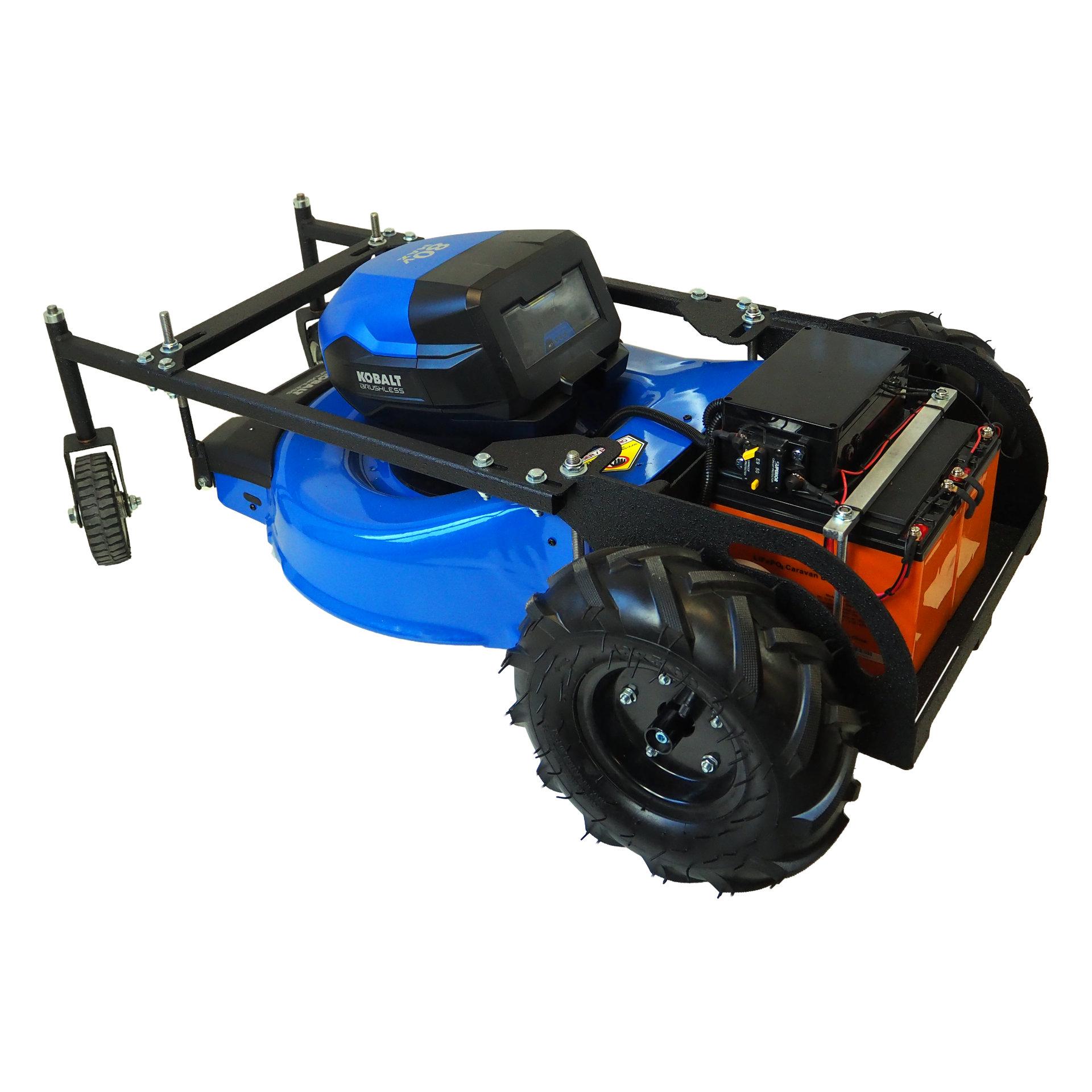

This is something every homeowner needs! A Kit that easily converts a 20 inch electric lawnmower into a robot that can be driven with remote control. By default, the kit comes unassembled and the mower is not included so it requires some work to get it up and running. If you'd prefer to get the full system select the option to assemble the kit with mower we'll do the work for an extra cost. We can modify this kit to work with other lawnmower decks if needed. Please contact us if you have a different mower you'd like to use or other features you'd like to add and we can work with you to accommodate your requests. It has enough runtime to cut up to a half an acre before recharging. The advantage of the electric mower is being able to remotely turn the mower blades on and off. This feature will be included if you get the mower assembled, but is not included in kit form.

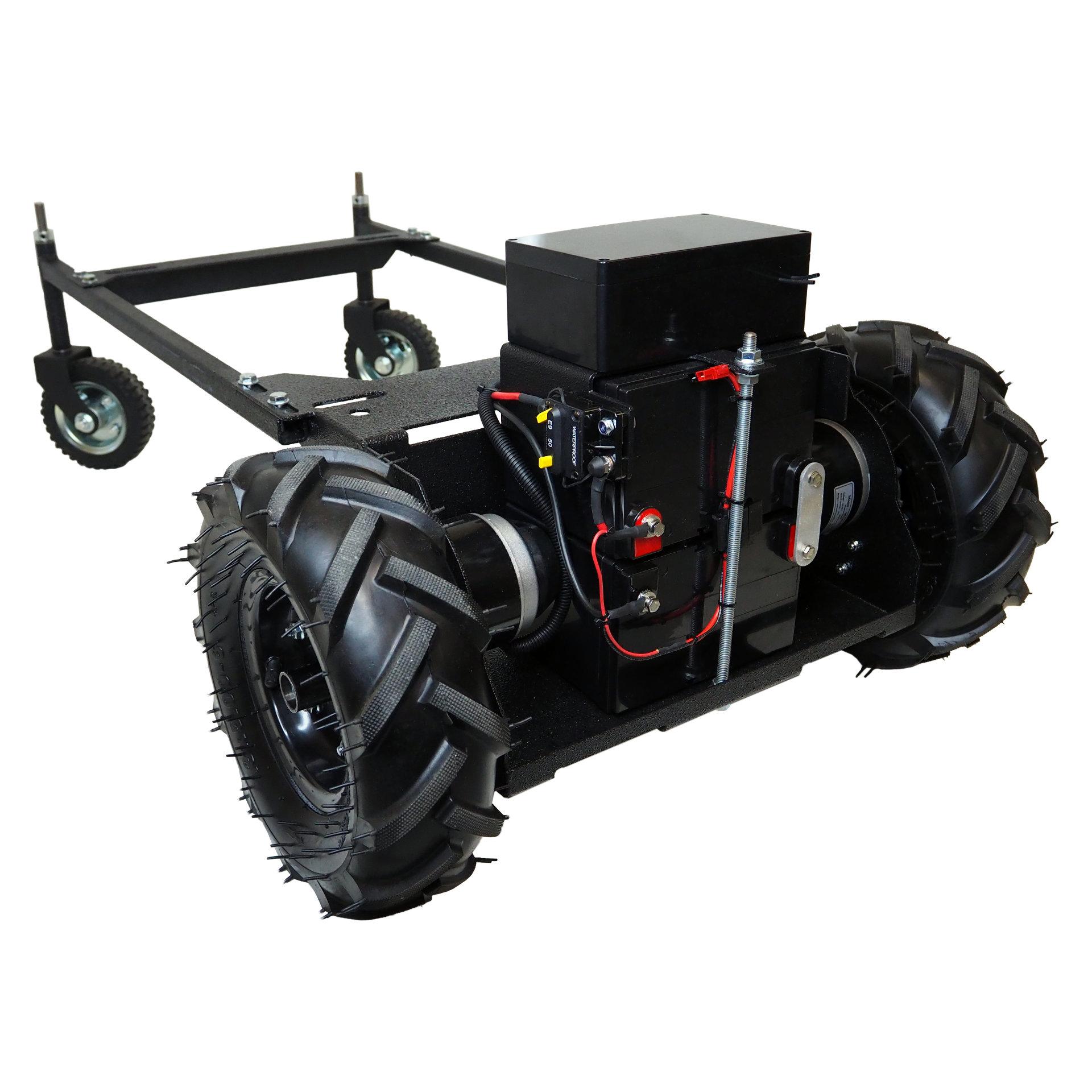

The frame of this robot is made from steel tubing and 10 gauge plate. It is welded together in a jig we set up so the lawnmower inserts into the frame using the existing wheel mounts, which also lets you set the height of the deck. The robot is driven by the provided 13-inch tires in the back driven by heavy-duty motors. The 6-inch casters in the front allow easy maneuverability.

Configurable - Electric Lawn Mower Chassis Upfit Robot Package

  • Product Code: TP-261-100
  • Brand: SuperDroid Robots
  • Availability: Built to Order 2-4 Weeks
  • This item does not qualify for free shipping
  • $2,500.00

Available Options

( Collapse All )
No Motors
No Battery
No Motor Controller
No RC Controller
No Battery Charger
Battery Charging system
Black Powdercoat
Full Assembly without mower
Full Assembly with Electric mower attached
