 4WD Custom Length Assembled Robot with 10 inch tires
Item Details
4WD Custom Length Assembled Robot with 10 inch tires
Item Name:
4WD Custom Length Assembled Robot with 10 inch tires
Item #:
TP-500-025
Your Price:
$1,185.00  $995.00
In Stock!
Quantity:

Product Image Gallery:

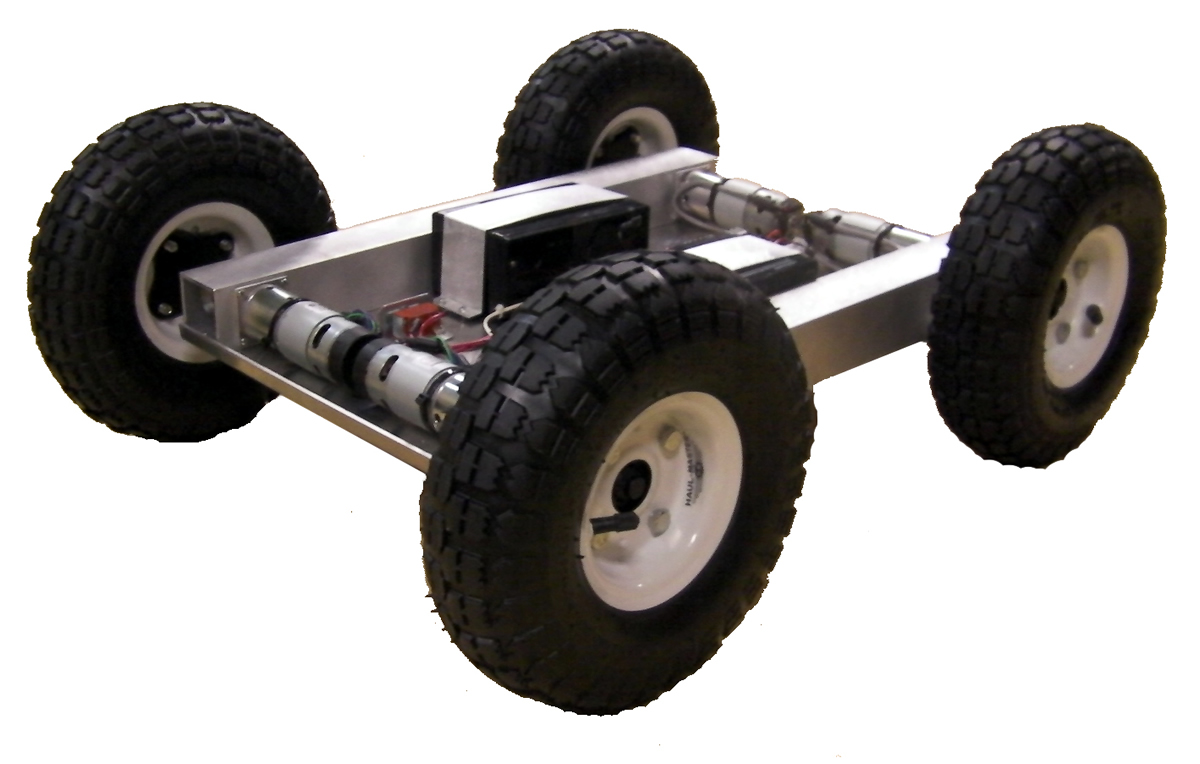

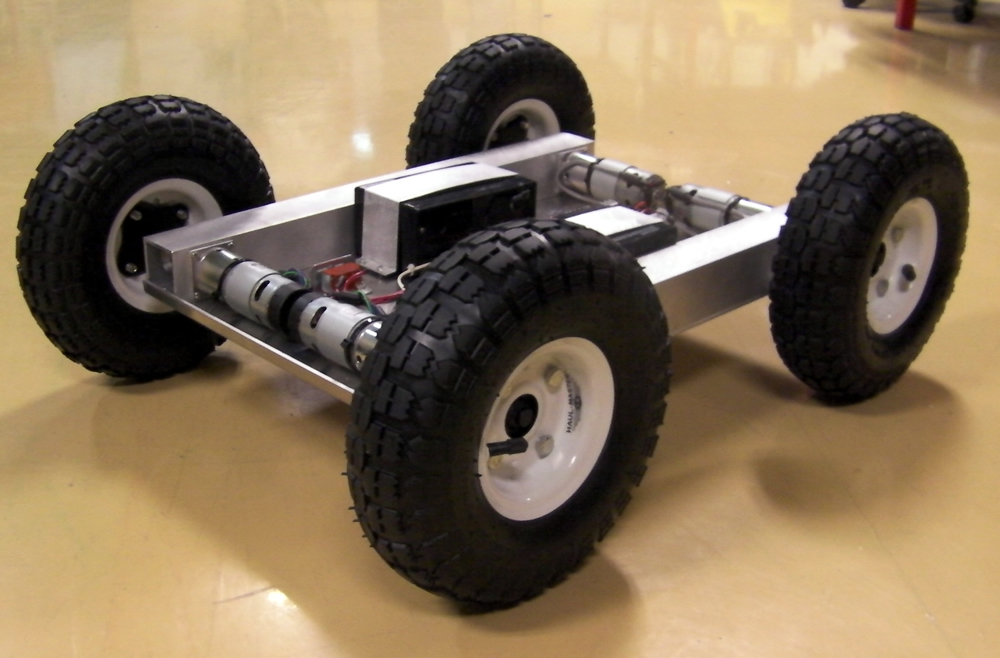

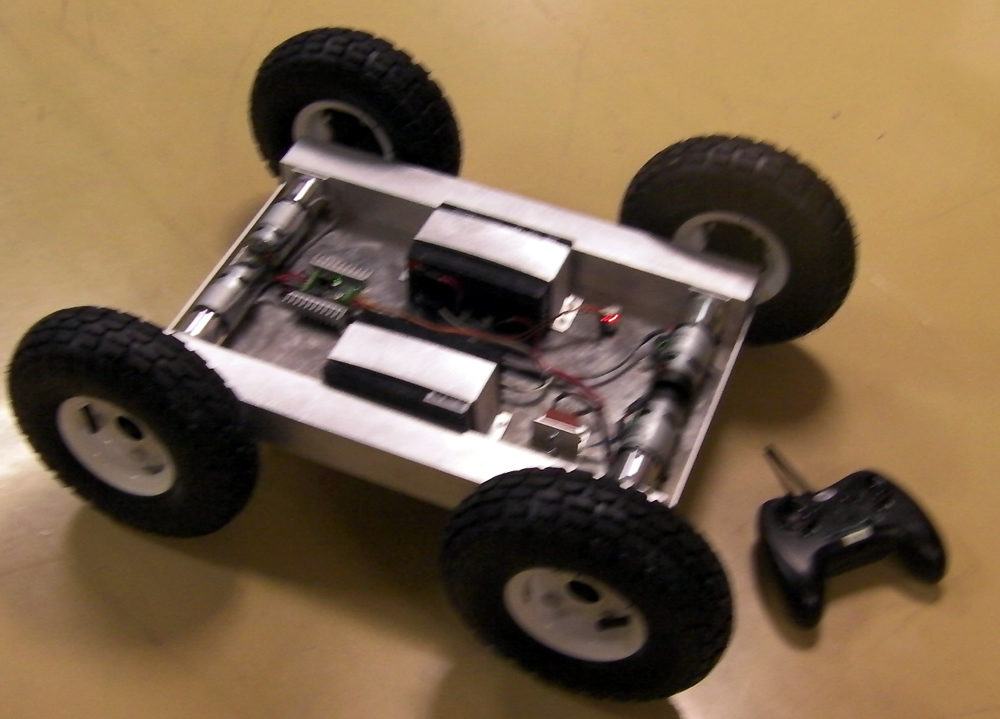

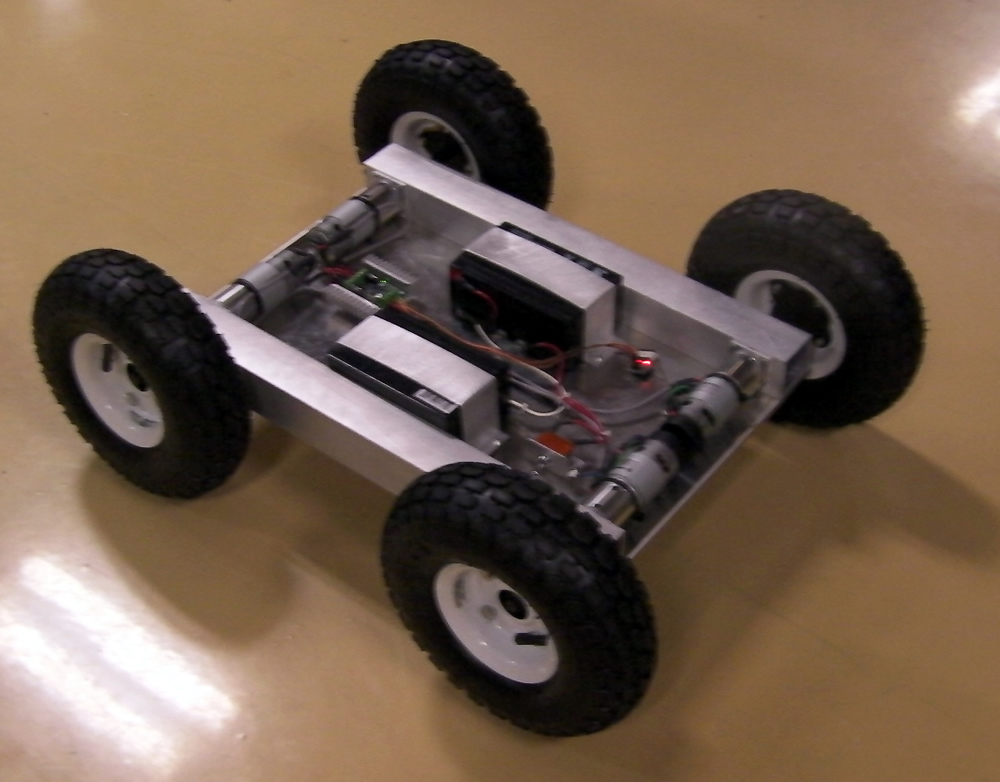

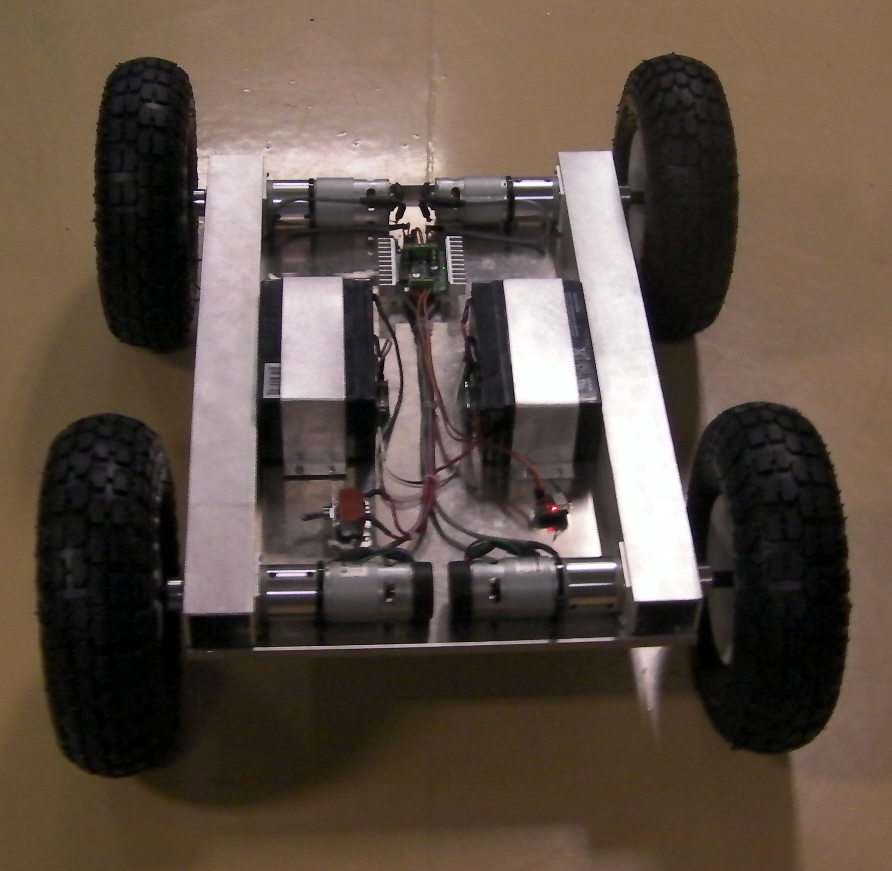

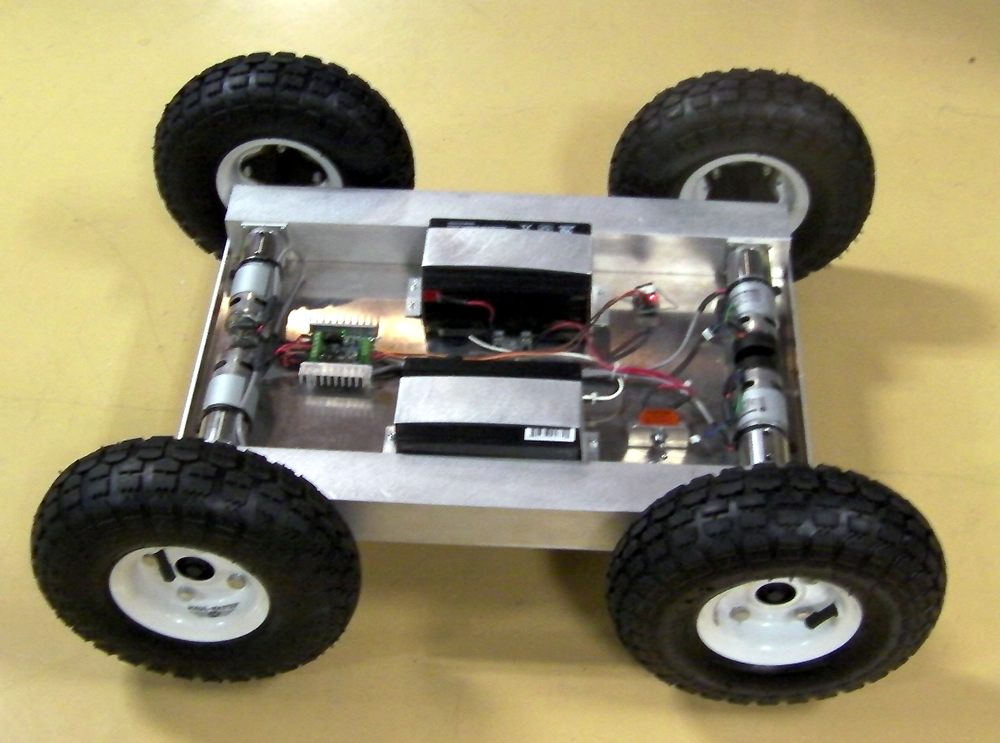

4WD Custom Length Assembled Robot with 10 inch tires

Description:

This is a prebuilt robot that uses custom length sides and 10 inch tires. Ready to go, fully assembled and ready to run. The robot is configured as listed below. If you desire a custom configuration please follow this link and select the options at the bottom of the page. If you require further customization, please fill out our custom robot request form.

Included:

This robot is built and ready to go! Please allow 1-2 days for packaging prior to shipment. We have included a RC controller with it, but it could be replaced with a microcontroller or a larger channel radio for pan and tilt camera system, etc. The robot is also equipped with encoders on the front two motors if you want to add distance or speed control.

Please contact us if you need this robot customized. The measures speed of this robot is 350fpm. The robot is about 22" wide and 28" long (edge of wheels to edge of wheels). The robot has a 4" ground clearance. The total weight of the assembled robot with batteries, wheels, etc is 38lbs. The chassis dimensions are 14.75" wide by 21" long. The list below shows the measured total (all 4 motors combined) current draw for different scenarios:

Robot Specifications:

  • Drive straight concrete: 2.75A
  • Drive straight grass: 3A
  • Pivot Turn smooth concrete 10A
  • Pivot Turn rough concrete 16A
  • Pivot Turn asphalt 16A
  • Pivot Turn grass 16-17A
  • Pivot Turn carpet 14A
  • Right Turn or Left Turn Asphalt 8A
  • Uphill (loading dock ramp) 5A

Delivery:

  • This robot is pre-built. Please allow 1-2 days for shipment.

Video:

The video below shows how well this robot handles most terrains and obstacles.


 This robot uses custom length sides and 10 inch tires. We have included everything to make it ready to run including batteries, controllers, chargers, etc.
