 4WD WiFi Controlled Mobile Robot with PTZ Dome Camera - IG42
Item Details
4WD WiFi Controlled Mobile Robot with PTZ Dome Camera - IG42
Item Name:
4WD WiFi Controlled Mobile Robot with PTZ Dome Camera - IG42
Item #:
TP-600-156
Manufacturer:
SuperDroid Robots
Adjusted Price:
Availability:
Built to Order: 2-5 Weeks
Quantity:

Product Image Gallery:
4WD WiFi Controlled Mobile Robot with PTZ Dome Camera - IG42

The image gallery displays possible configurations of this robot. See description and options below to configure your robot.

If assembly is chosen as an option below, this item will not qualify for free shipping.

Description:

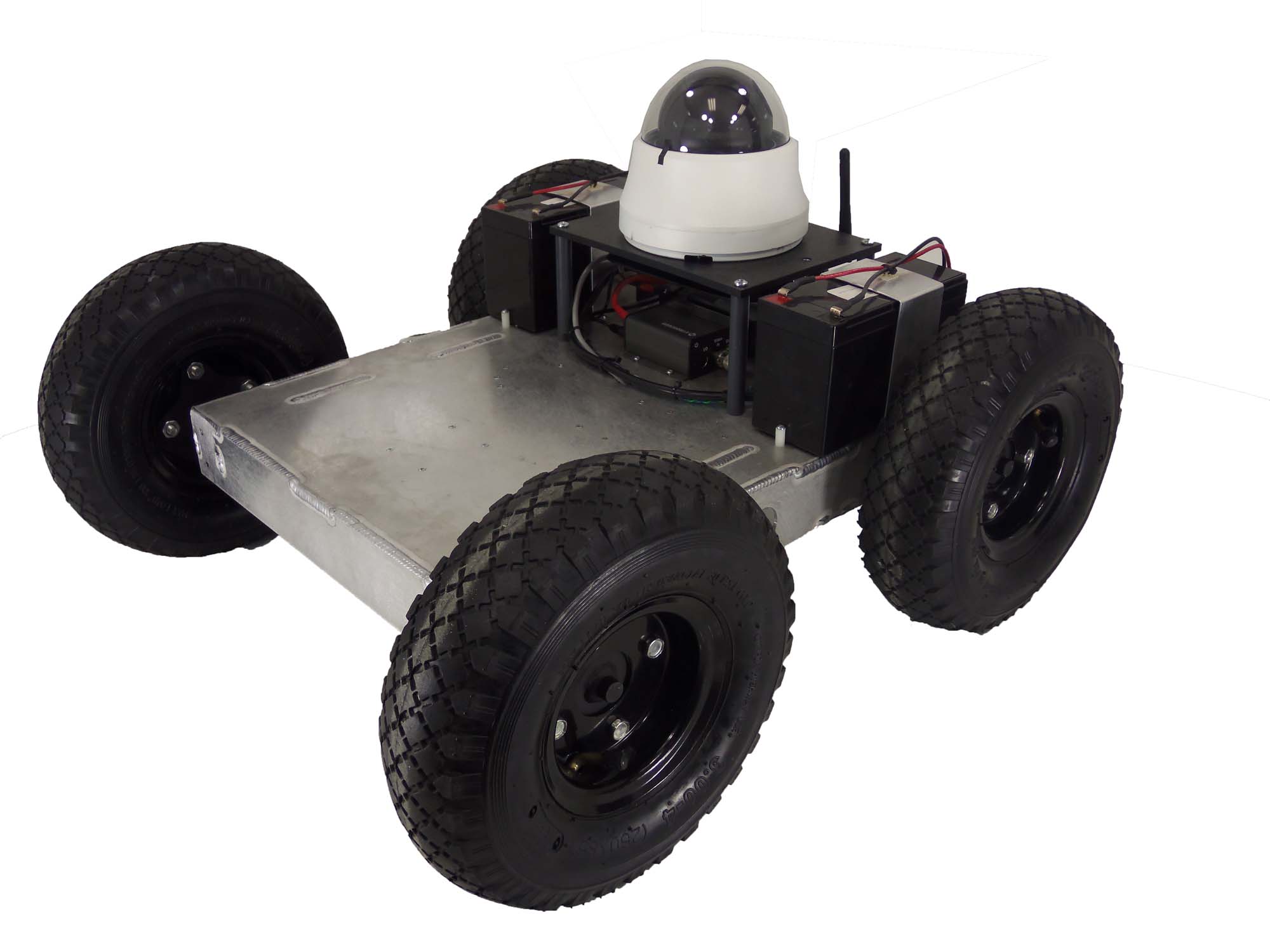

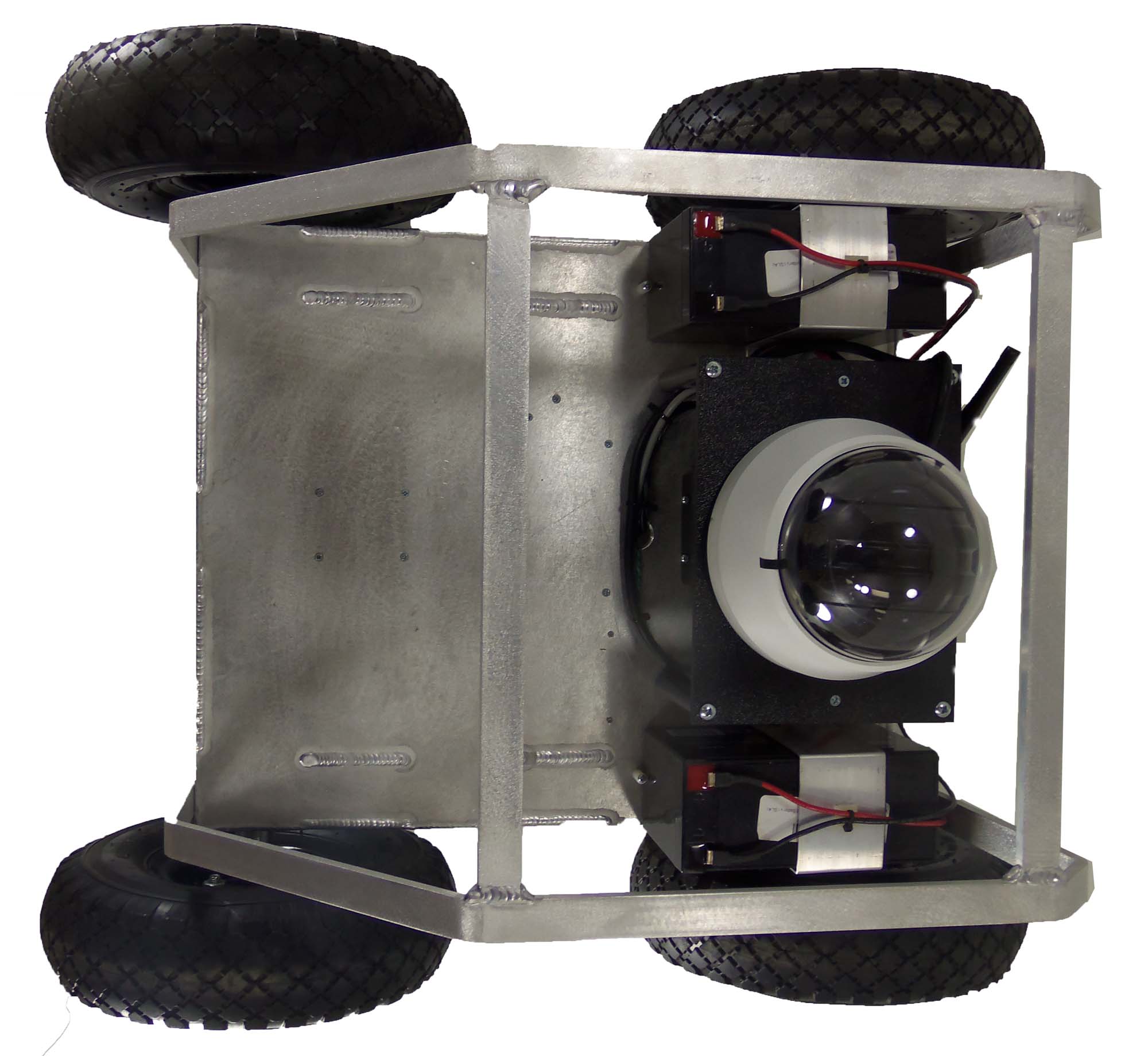

This is SuperDroid Robot's Wi-Fi All Terrain Robot, programmed and fully assembled. The robot is 4WD and is controlled from a PC over a Wi-Fi connection. Equipped with an Pan/Tilt/Zoom IP camera in a protective dome.

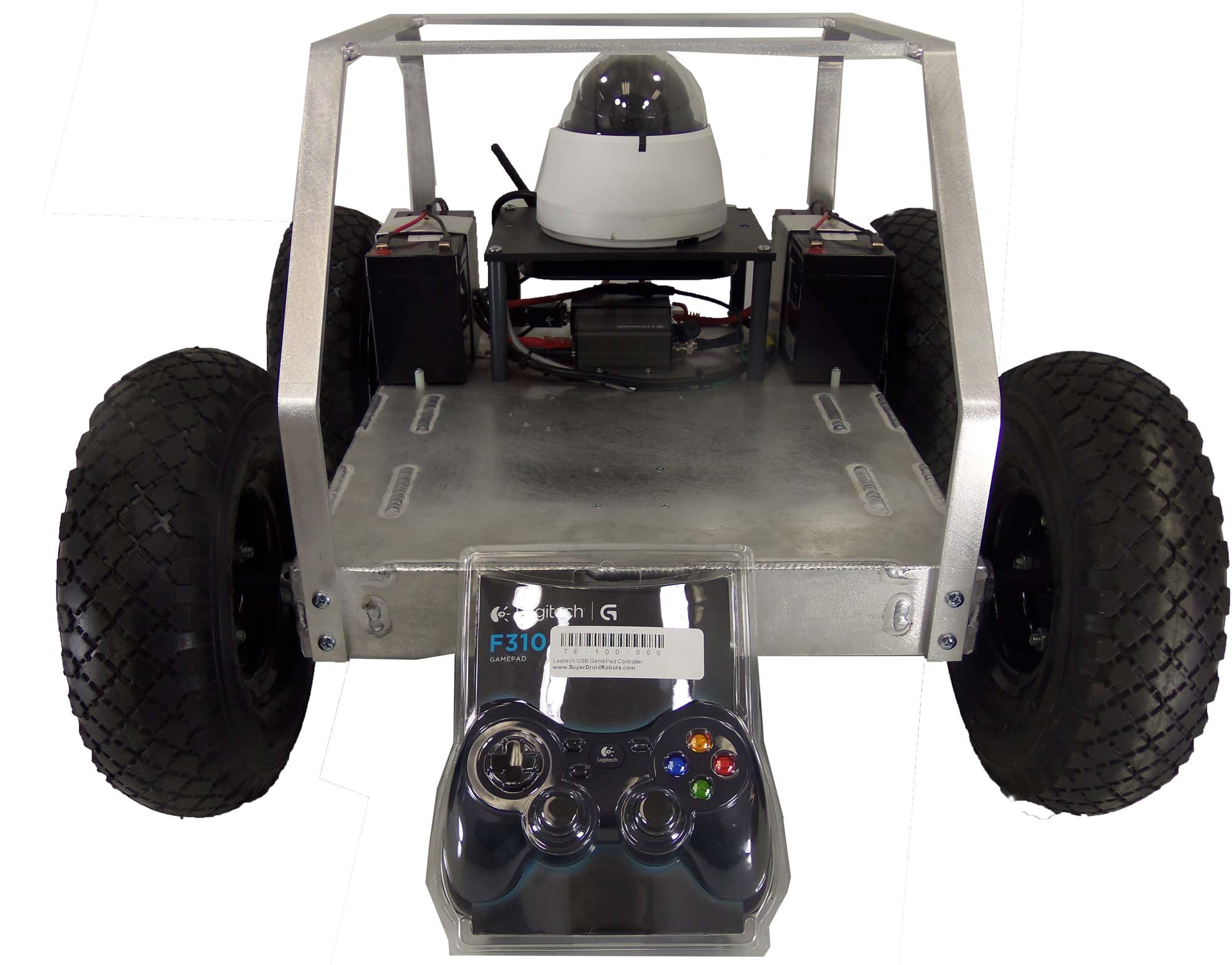

The Wi-Fi controlled IG42 ATR includes the complete robot, program, gamepad controller so you can drive the robot right out of the box.

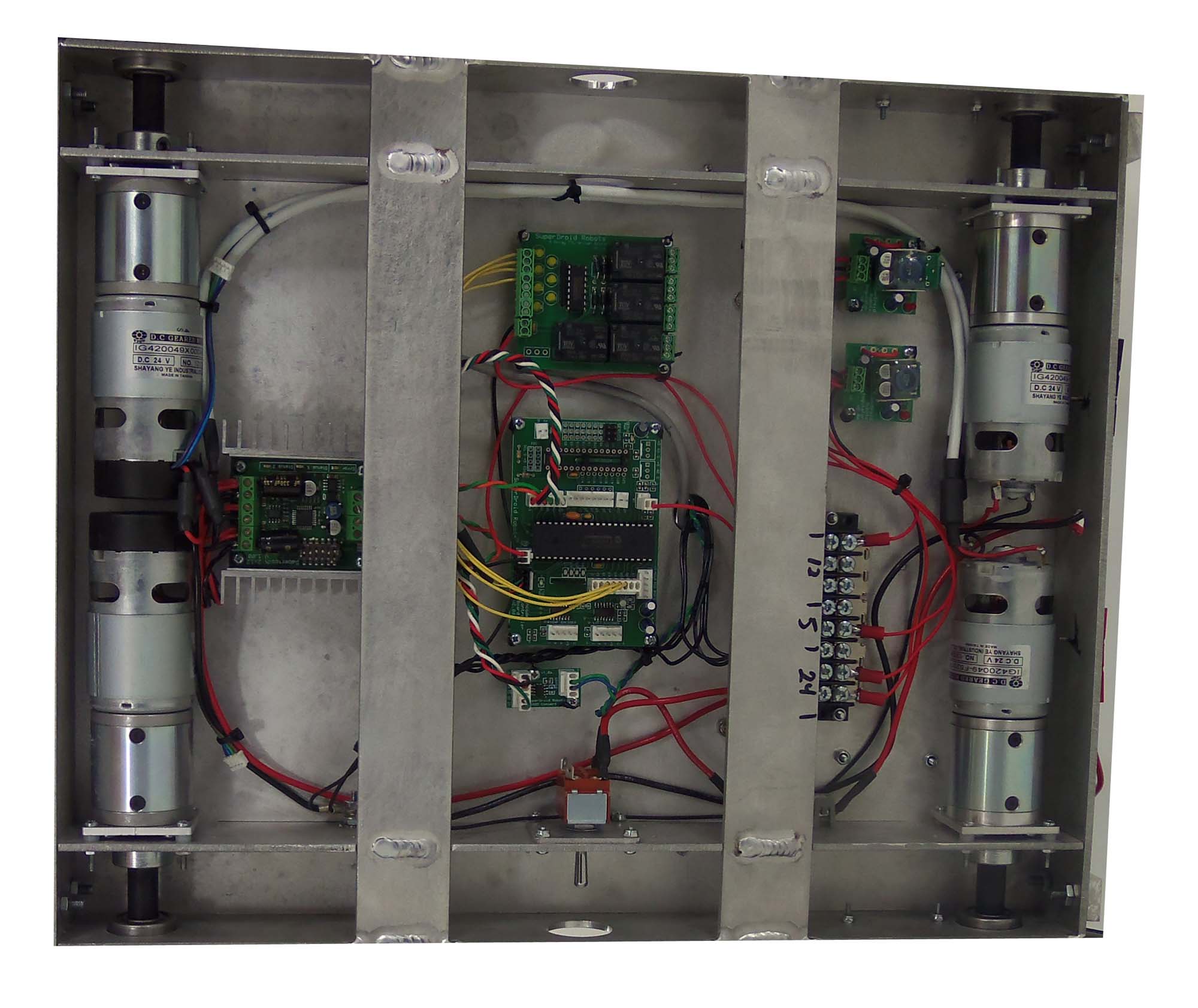

The robot itself is an extremely rugged well-built. This isn’t your ordinary WiFi robot. The wheels are axle mounted and are supported using sealed ball bearings. The motors are powerful, and it will move quickly and easily on most terrains. The rugged frame is made of 1/8" thick aluminum and hand welded.

Applications:

  • Remote Monitoring - Compact, lightweight and fast you can control this robot from anywhere. The 10X optical zoom camera with 360 degree pan and tilt allow a complete view of the robot's surroundings.
  • Flexibility - Thanks to open aluminum chassis, it's quick and easy to attach or remove items. This makes the robot versatile for any task

Standard Configuration:

This robot comes with the recommended and most popular set up. By changing, adding or removing features at the bottom of this page you can configure the robot to suit your needs and budget. We also offer this robot as a programmable style robot so you can program it yourself and add/change features. See here for a programmable configuration.

Available Options:

(Selected Below)
  • Router/Bridge Option: A router is a lot easier to connect your computer to, etc. However, if you plan on using this on an existing network you will need a bridge.
  • Encoder Option: The motors can be upgraded to have encoders. The control board and software will be upgraded to read the encoder data so you can monitor how far the robot has travelled using the included software.
  • Wheel Options: You can select different style wheels if desired.
  • Battery Options: We offer many battery options. The more amp hours, the longer the run time will be.
  • Audio: Select the audio option. 1-Way audio will be from the robot to your PC. 2-Way will allow two way conversations between the robot and your PC.

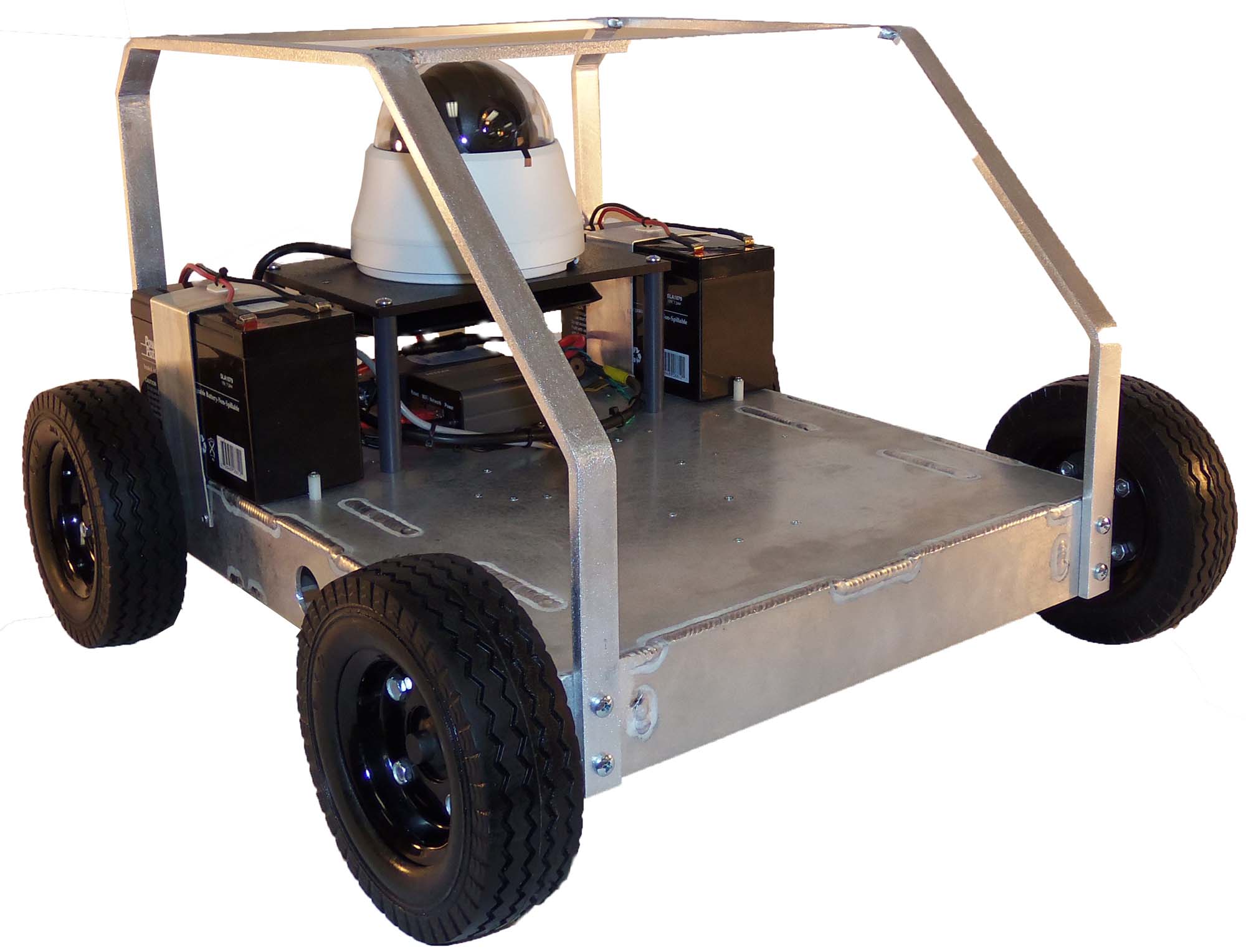

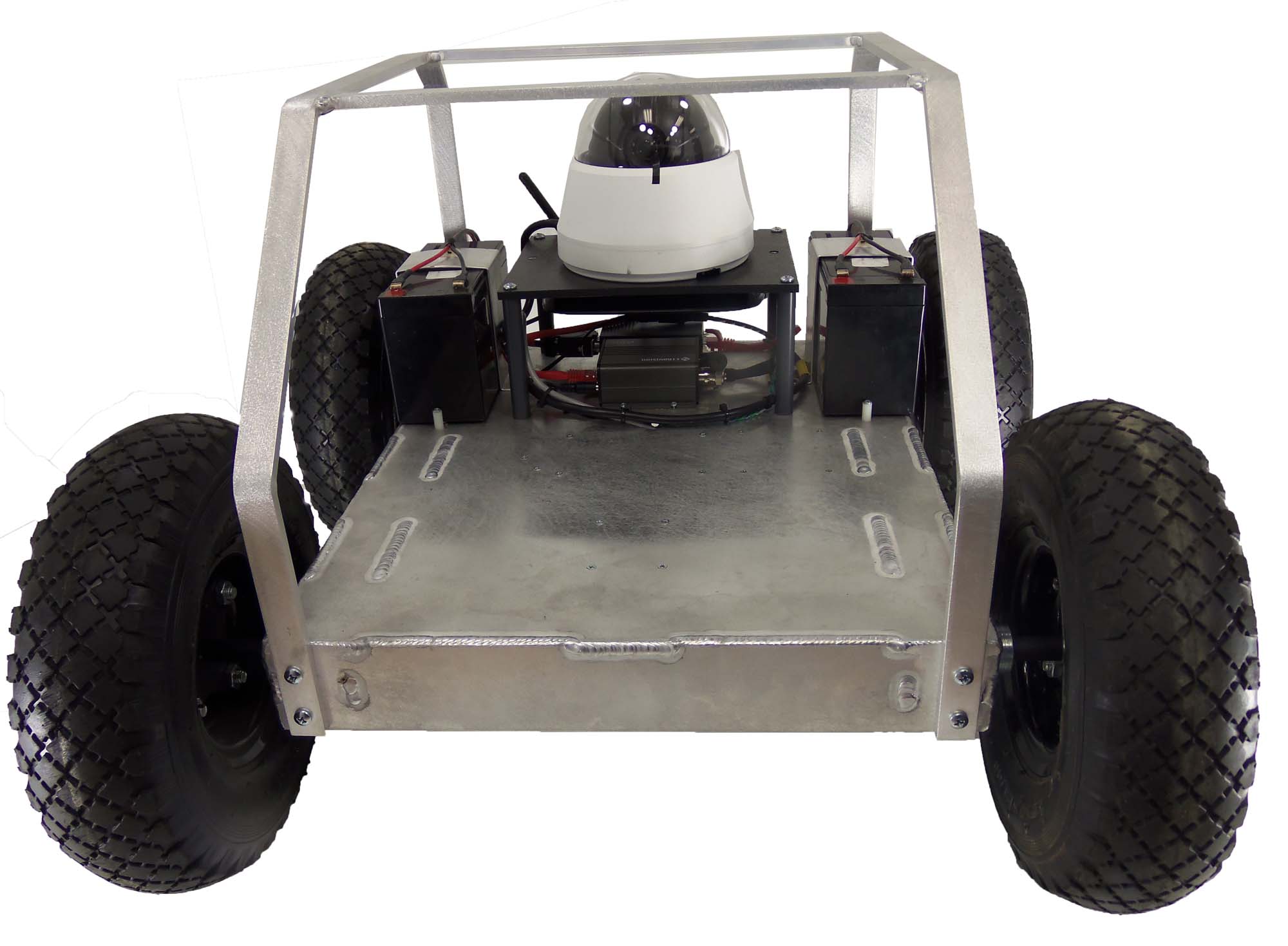

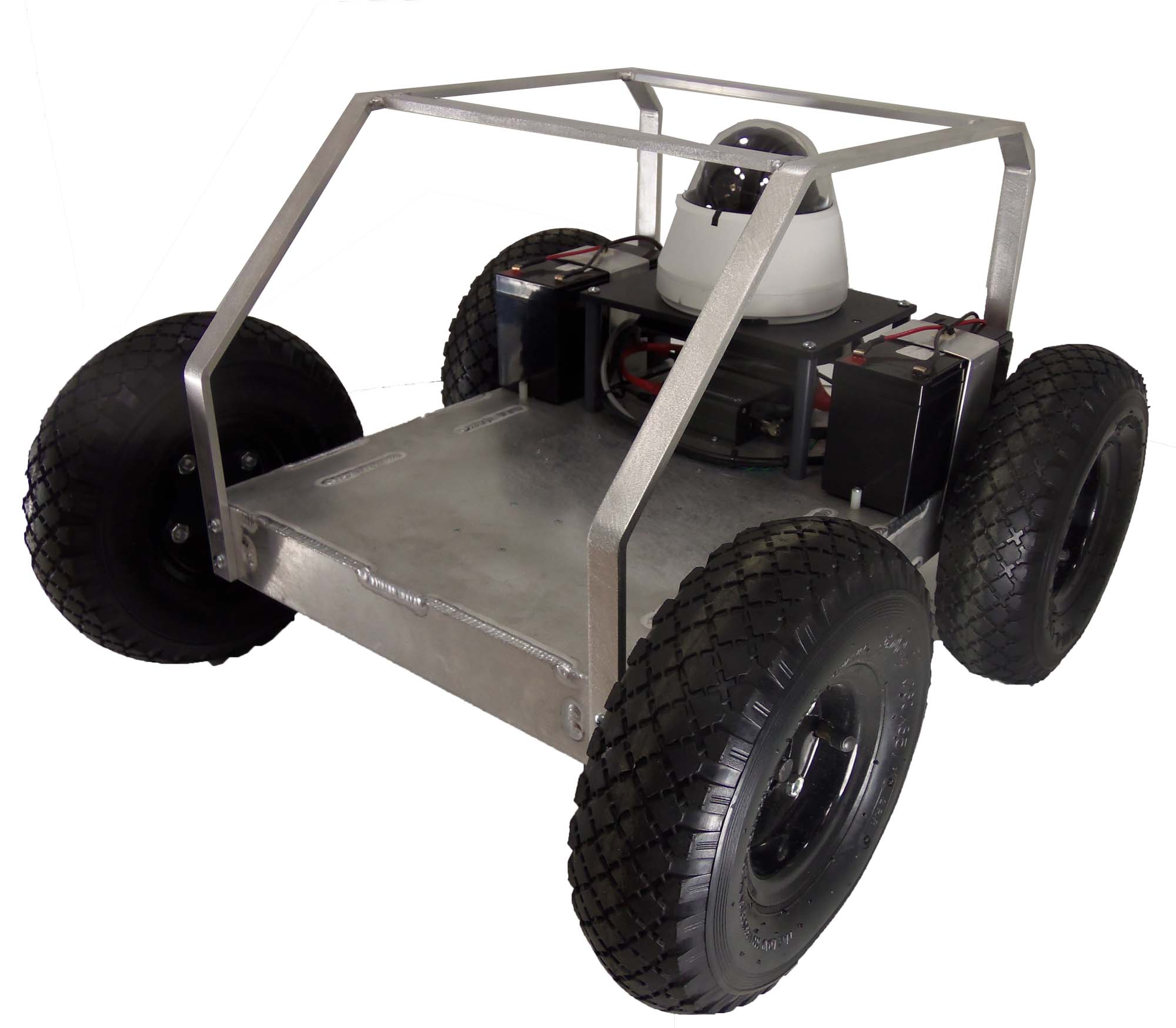

  • Roll Cage: The Roll Cage upgrade will include a roll cage and top cover mounted to the robot. The roll cage will protect the camera in the event of a roll over. An additional option of lights can be attached to the Roll Cage for better lighting in darker environments.
  • Bumpers: A front bumper can be added to protect the robot from head-on collisions. An additional bumper can be added on the back of the robot as well.
  • Skid Plate: A bottom skid plate can be added to protect the electronics on the bottom of the robot. This options should be selected if you plan on using the robot outdoors.
  • Sandblast and Paint the Robot Chassis: This upgrade will include sandblasting and painting the robot chassis. The chassis is wire brushed aluminum as a standard item, which will not rust. If you select this option we will sandblast the chassis and aluminum parts and paint them.

Contact us if you would like a custom configuration of this robot.

Documentation and Support:

Delivery:

We currently have a prebuilt version of this robot for sale! See here for it's prebuilt configuration.

  • This robot is built to order based on the options selected below. Please allow 2-5 weeks for shipment.
  • Actual delivery may vary based on workload, contact us for a more accurate delivery time.
  • Note that if Assembly is selected, this order does not qualify for free shipping.
  • Contact us if you need expedited delivery.

Video:

Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

These are standard items that are required. They are checked and grayed out indicating that they are not optional and cannot be unchecked

PTZ Dome Camera with 10X Optical Zoom

Select if you want a router or bridge. Router is easier to connect to, etc. but if you are putting the robot on an existing network the bridge is a better choice.

This option upgrades the motors and controllers so encoder data can be displayed. See above for details.

Standard motors and no encoder interface
Add front encoders and include endcoder interface (Add $395.00)

Select the desired wheels and shafts. This robot will fit 6" and 10" tires. It can also be equipped with 4" Omni Wheels.

If you want audio, select the options below. We will add a amplifier and microphone for one way audio. For 2 way audio we will also add a amp and speaker.

No Audio
One Way Audio from Robot to Computer (Add $139.00)
Two way Audio (Add $289.00)

Select the batteries you wish to use for your robot. See above for details.

No Batteries

Select this option if you want us to include appropriate charging system with you selected robot batteries

No Charger
Battery Charging system (Add $49.90)

Select this option if you wish us to add a roll cage to the robot.

No Roll Cage
ATR Roll Cage with Lights (Add $275.00)

Select this option for front and/or rear bumpers. One bumper the front bumper, while two bumpers is a front and back, unless otherwise notified.

No bumpers

Select this option if you want a bottom skid guard included to protect the bottom electronics, etc. This is recommended if using the robot outdoors.

No Bottom Skid Guard

Choose this option if you wish for us to sandblast and paint the robot chassis.

Standard Aluminum Finish
Sandblast and Paint ATR Chassis (Add $253.13)
Item Price
Adjusted Price
$3,795.40




 This is our IG42 motor WiFi robot kit programmed and fully assembled. The robot is 4WD and is controlled from a PC using a WiFi connection. The robot has an IP dome camera with a Pan/Tilt/Zoom system.
