RoboteQ MDC2460 - 2x60A 60V Motor Controller with Encoder Input

  • RoboteQ MDC2460 - 2x60A 60V Motor Controller with Encoder Input

Available Options

  • DB15 connector needed to interface with motor controller.
  • Molex connector needed to interface with encoders.

Features and Specifications

  • Power:
    • Motor Type: Brushed DC
    • Max Voltage: 60
    • Number of Channels: 2
    • Direction: Forward/Reverse
    • Max Amps per Channel: 60
    • Continuous Amps per Channel: 50
    • ON Resistance (mOhm): 6
    • Power Connections: Fast on
  • Commands & Feedback:
    • Analog:Yes
    • RS232: Yes
    • USB: Yes
    • CANbus: Yes
    • RC Pulse: Yes
    • MicroBasic Scripting: Yes
    • Control Loop (ms): 1
  • I/O:
    • Max Analog Inputs: 4
    • Max Digital Inputs: 6
    • Digital Outputs: 2
    • Max Pulse Inputs: 5
    • Encoder: Yes
  • Mechanical:
    • Cooling: Conduction plate
    • Dimensions: 140mm x 140mm x 25mm
    • Weight: 250g

Roboteq's MDC2xxx controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving one or two DC motors. Designed for maximal ease-of-use, it is delivered with all necessary hardware and is ready to use in minutes.

The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop or Close Loop (Speed or Position) modes. The MDC2230/MDC2260 features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions. The controller's two motor channels can either be operated independently or mixed to set the direction and rotation of a vehicle by coordinating the motion of each motor. Numerous safety features are incorporated into the controller to ensure reliable and safe operation.

The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.


RoboteQ MDC2460 - 2x60A 60V Motor Controller with Encoder Input

  • Product Code: TE-240-060
  • Brand: RoboteQ
  • MPN: MDC2460
  • Availability: Discontinued

This product is unavailable.

Contact us if you have any questions.

Available Options

( Collapse All )
No additional connector
$0.00
None Selected
$0.00
None
$0.00

Related Products

RoboteQ SDC2160 - 2x20A 60V Motor Controller with Encoder Input
RoboteQ SDC2160 - 2x20A 60V Motor Controller with Encoder Input

Roboteq's SDC21xx controller is designed to convert commands received from an RC radio, Analog Joyst..

Product Code: TE-144-060

$412.88

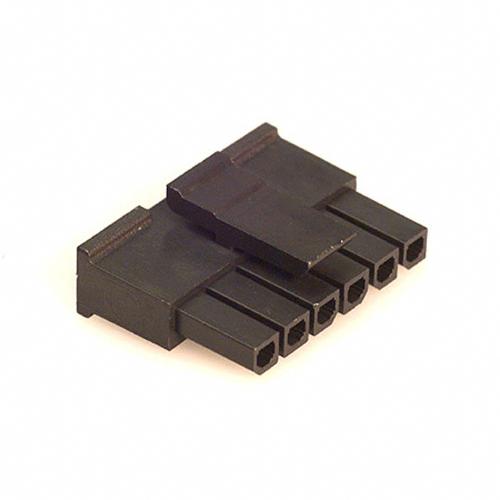

6-pin Molex Microfit 3.0
