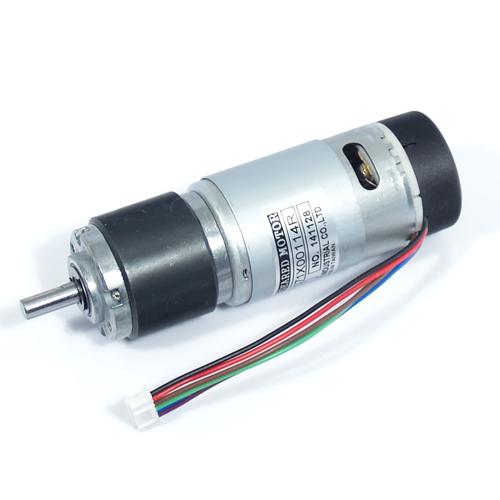

IG32 24VDC 074 RPM Gear Motor with Encoder
Features and Specifications
These specifications are listed with the "rated" values (these are the values where the motor runs at peak efficiency). The motors can deliver considerably more than their rated values, refer to datasheet in image gallery for more information.
- 24VDC
- Reduction Ratio: 1:71
- Rated Torque: 3.1 kgf-cm
- Rated Speed: 74 RPM
- No Load Current: < 85mA
- Dual Channel/Quadrature Encoder mounted to tail shaft of motor. See datasheet in image gallery. (Each channel requires a 1k pull up resitor to Vcc as shown on datasheet.) This pull up board can be used in-line, providing the required pull-ups to Vcc for channel A and channel B.
Documentation and Support
Recommendations
We recommend controlling the motors with one of our motor speed controllers. See our motor controller support page for more information. We also recommend you use our wiring kit to wire your motors. The hookup kit will help suppress the electronic noise generated from any DC motor. See our motor wiring support page for more information.
- Brushed permanent magnet DC motor
- Variable speed and reversible
- Planetary Gear Box
- Final drive stages are steel gears (not plastic or sintered metal)
- Tested extensively on our All-Terrain-Robots
IG32 24VDC 074 RPM Gear Motor with Encoder
- Product Code: TD-054-074
- Brand: Shayang Ye Industrial Co., Ltd.
- MPN: IG320071-SY5804
- Availability: Discontinued
