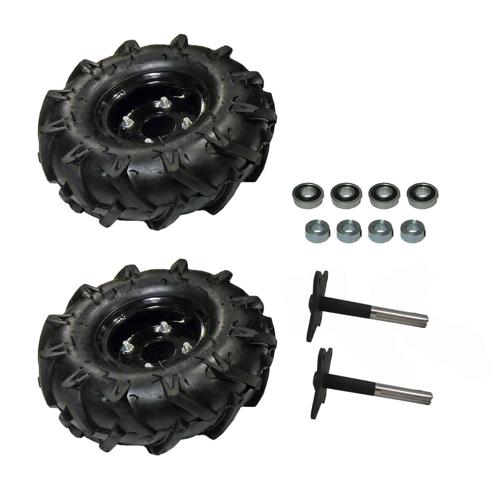

ATR Heavy Duty IG52 DB Wheel and Shaft Set Pair - 10 inch Traction Lug
Features and Specifications
- (2) 10" Traction Lug Tires
- (2) ATR shafts
- (2) Steel Machine Key 3/16" x 3/16", 3/4" long
- (4) 5/8" Lock collars
- (4) 5/8 inch bearings
- (8) Bolts/nuts
- The tire does not have a load rating. It is a pneumatic wheel. We have put 125lbs on a 4WD robot using these wheels with no issue.
- Total Weight (2 wheels, shafts, collars, etc., as pictured): 2.5lbs per set.
Inflate tires before use! Underinflated tires can spin on the rim rupturing the tube inside.
Recommendations
This set is intended for our:
These will NOT work for our:
Delivery
These items are built to order. Please allow 1-2 days for shipment.
Sold as a pair, the custom machined shafts are 5/8" diameter steel with steel hubs welded onto them to mate with the wheel's bolt pattern. Two sets will make up the parts to a 4WD robot.
ATR Heavy Duty IG52 DB Wheel and Shaft Set Pair - 10 inch Traction Lug
- Product Code: TD-275-000
- Availability: This product or this version of the product is not being sold anymore.
- This item does not qualify for free shipping
$151.27
Available Options
( Collapse All )- (Qty 2) Robot Drive Wheel - Traction Lug 10 x 3.50-4 Tiller Tire

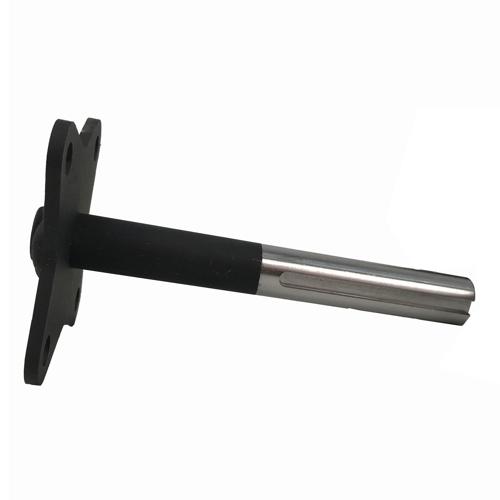

- (Qty 2) ATR Keyed Shaft IG52 DB Heavy Duty for 10 inch Tire
- (Qty 4) Shaft Collar with set screw - 0.625 inch ID
- (Qty 4) Steel Ball Bearing Flanged Double Sealed for 5/8" Shaft Dia, 1 3/8" OD
- (Qty 8) Nuts and Bolts for mounting wheels
