This page contains multiple items. Scroll down to see them all!�

OOPic-C

OOPic-C Starter Package

OOPic-C Carrier board

OOPic-C-LL

�

SuperDroid Robots sells a complete line of the OOPics (Object Oriented Peripheral Interface Controller or Object Oriented Programmable Integrated Circuit) including the OOPic-R, OOPic II plus, and the OOPic-C.� The OOPic product line of microcontrollers is specifically designed for robotics, but can be used for much more!

�

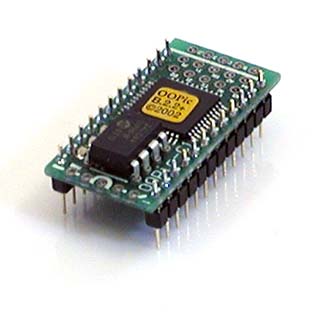

Description:

�


Click on images for larger views

�

This is the new OOPic C module.� This small sized OOPic is aimed at the popular 24-pin sockets used by several microcontrollers expanding the OOPic's audience to individuals who already have hardware based on this 24-Pin system. The module comes packaged in a sturdy case. The OOPic-C board includes an RS232 serial port, 16 I/O pin configured within the 24-pin.� Additional I/O lines are available at one end of the board, each has a solderable test point labeled with the I/O function.� The OOPic-C board comes equipped with one socketed EEPROM, three indicator LED's, and the OOPic2+ firmware.�

�

The OOPic-C is programmed with a serial cable and carrier board (sold with the starter package) and the free software that is downloaded from the OOPic site.� For more about the OOPic see our microprocessor page.

�

For additional information on the OOPic-C visit the OOPic website:

OOPic-C Board Specifications

OOPic-C Schematic

OOPic-C Description

� �

Includes:

Qty	Item
1	�OOPIC-C WITH B.2.2+ FIRMWARE

�

Shipping Weight:

lb(s) oz(s)

In Stock:

Quantity:

��

Cost:

(US Dollars)

Purchase:

See Terms and Conditions of Sale for shipping options/costs and other important information.

�

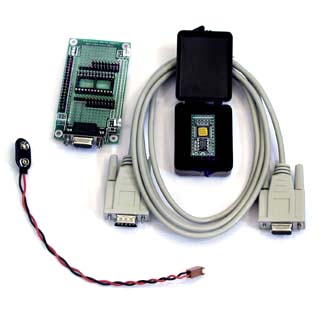

Description:

This is the new OOPic C starter package which includes the OOPic C module, OOPic C Carrier Board, a 9V Battery Clip, and a serial extension cable.� This small sized OOPic is aimed at the popular 24-pin sockets used by several microcontrollers expanding the OOPic's audience to individuals who already have hardware based on this 24-Pin system. The module comes packaged in a sturdy case. The OOPic-C board includes an RS232 serial port, 16 I/O pin configured within the 24-pin.� Additional I/O lines are available at one end of the board, each has a solderable test point labeled with the I/O function.� The OOPic-C board comes equipped with one socketed EEPROM, three indicator LED's, and the OOPic2+ firmware.

�

The OOPic-C is programmed with a serial cable and carrier board and the free software that is downloaded from the OOPic site.� For more about the OOPic see our microprocessor page.

�

For additional information on the OOPic-C visit the OOPic website:

OOPic-C Board Specifications

OOPic-C Schematic

OOPic-C Description

� �

Includes:

Qty	Item
1	�OOPIC-C WITH B.2.2+ FIRMWARE
1	�OOPIC-C CARRIER BOARD
1	�SERIAL CABLE
1	�9V BATTERY CABLE

�

Shipping Weight:

lb(s) oz(s)

In Stock:

Quantity:

��

Cost:

(US Dollars)

Purchase:

See Terms and Conditions of Sale for shipping options/costs and other important information.

�

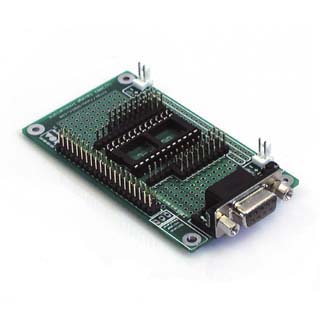

Description:

This is the carrier board for the 24 pin OOPic C Module.� It offers the common OOPic bus and a convenient serial connection.

� �

Includes:

Qty	Item
1	�OOPIC-C CARRIER BOARD

�

Shipping Weight:

lb(s) oz(s)

In Stock:

Quantity:

��

Cost:

(US Dollars)

Purchase:

See Terms and Conditions of Sale for shipping options/costs and other important information.

�

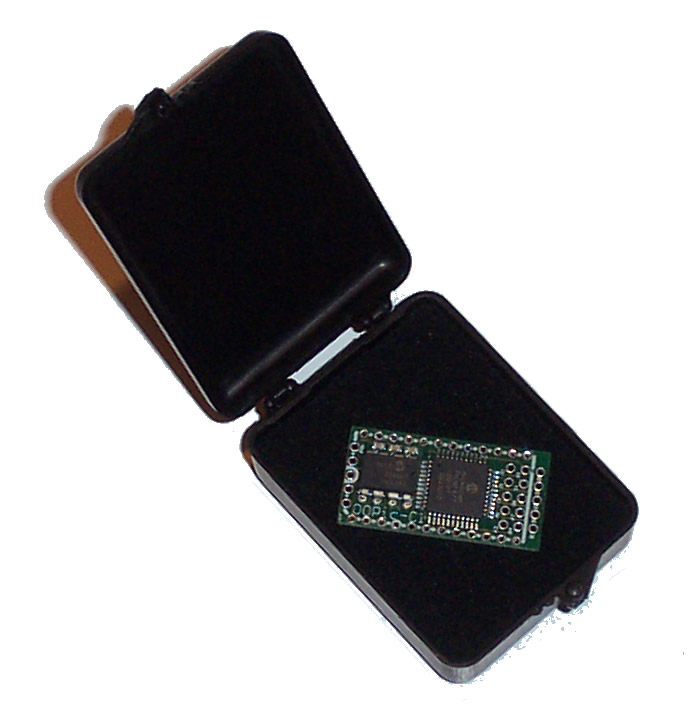

Description:

This is the same as the new OOPic C module, except it has no leads (the LL stands for LeadLess).� Without the leads your wires can be soldered directly to the OOPic.� Great where weight or size is an issue!
