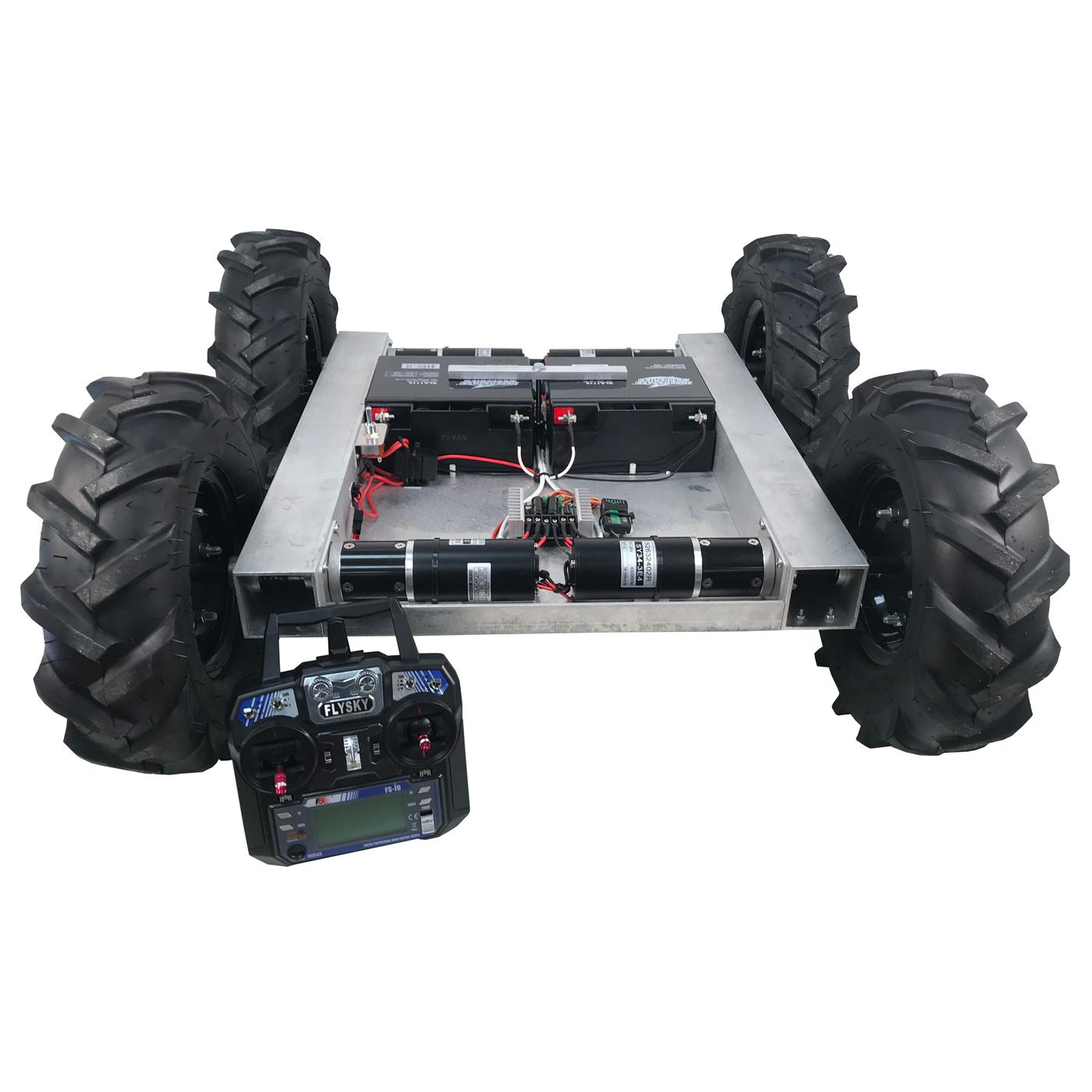

CUSTOM 4WD IG52 - SB Custom Length Assembled Robot with 13 inch Tires - SOLD
- (Qty 2) Custom Length IG52 ATR Side (modified and bolted to chassis)
- (Qty 2) ATR Wheel and Shaft Set Pair IG52- 13 inch pneumatic
- (Qty 1) 1/8" Thick Custom Aluminum Base
- (Qty 4) IG52 24VDC 136 RPM Gear Motors
- (Qty 1) Sabertooth Dual 25A Motor Driver
- (Qty 1) FLYSKY FS-i6 and Receiver 2.4GHz
- (Qty 1) Automatic 24V 4A Three Stage Battery Charger
- (Qty 2) 12 Volt 18Ah Sealed Lead Acid Battery (run in series for 24V)
- (Qty 4) Electric Motor Hookup Kits
- (Qty 1) Electric Power Hookup Kit
- (Qty 1) Hardware and Electrical
- (Qty 1) Assembly and Testing
- Specifications of this prebuilt configuration:
- Axle Mount: Single Bearing (SB) - the axles are mounted to the motors and one sealed ball bearing.
- Speed: 5 mph
- Dimensions (LxWxH): 32" x 29" x 13"
- Weight: 78lbs.
- Capacity: Payload of approximately 25 lbs.
Documentation and Support
- This robot is pre-built, please allow 1-2 business days to prep the robot for shipment.
- Due to the size and weight of this robot it will have to ship freight.
- Contact us if you need expedited delivery.
This a prebuilt robot assembled from the Custom Length 4WD ATR Kit - IG52-SB4-T. The robot is being sold in the configuration listed below. The prebuilt robot is fully assembled, tested and is ready to run. For a customized configuration please follow the preceding link and select the options you desire on the bottom of the item page. If further customization is required, please fill out our Custom Robot Request Form.
This is a prebuilt robot that uses custom length sides and 13-inch tires. We have included everything to make it ready to run including batteries, controllers, chargers, etc.
