PCS-250 24VDC 120 RPM Wheel Chair Motor with Electric Brake - DISCONTINUED
Specifications
- Rated Power: 250W
- Output Speed: 120RPM
- Rated Voltage: 24V
- Motor Length: 80mm
- Motor Diameter: 102mm
- Shaft Size: 17mm with keyway
- Weight: 6lbs 13oz
Documents
- Motor Datasheet
- STEP File (Please note that this model is not 100% accurate but it works for our purposes).
- Wiring Diagram
Shipping
Due to the weight of these items, they do not qualify for free domestic shipping.
Video

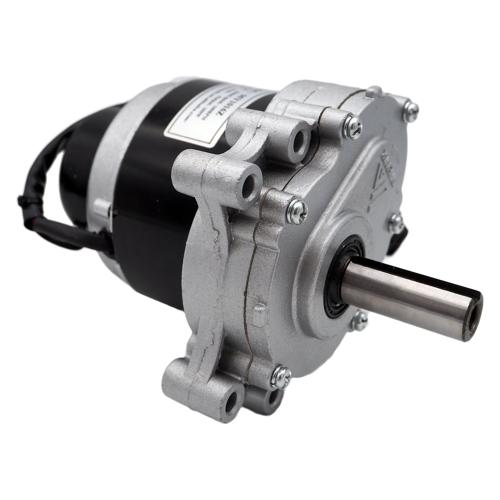

This is a wheelchair motor and with spur gearbox. They make great motors for heavy-duty robots, providing higher payload capacities, power, and performance. Unlike many wheelchair motors, these do not have a left and right hand version and are sold individually. We have tested a lot of motor and gearbox combinations and these work very well for our purposes.
PCS-250 24VDC 120 RPM Wheel Chair Motor with Electric Brake - DISCONTINUED
- Product Code: TD-316-120
- Availability: Discontinued
