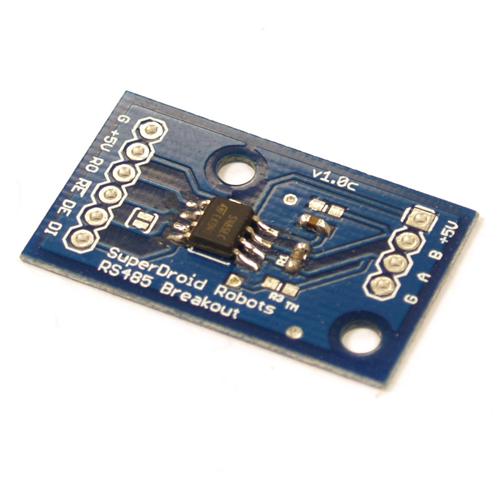

RS485 Breakout Board

Features and Specifications

  • Half Duplex Configuration
  • Low current draw: 300 uA
  • Opperates from a 5V Supply
  • ESD Protection +/- 8 kV
  • Four Pin 0.100" friction lock header for RS485
  • Six Pin 0.100" friction lock header for TTL
  • Dimensions: 1.25" x 0.7"

Documentation and Support

This is a breakout board for the ST485E tranceiver IC. The ST485 can convert a TTL signal from a microcontroller, such as an Arduino, to RS485. The advantage to using RS485 is that it allows you to transmit data much farther than a TTL serial signal and in a noisy environment.


RS485 Breakout Board

  • Product Code: TE-181-000
  • Brand: SuperDroid Robots
  • Availability: This product or this version of the product is not being sold anymore.
  • $8.00
  • $5.60



Related Products

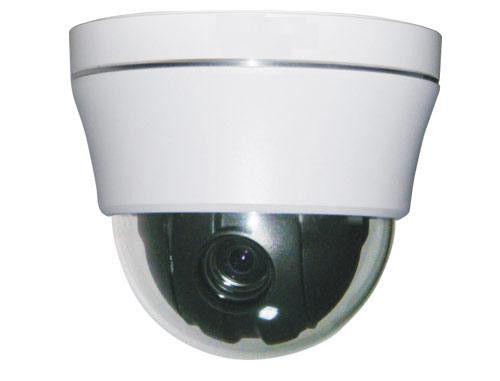

Mini High Speed Dome Camera with 10X optical zoom
Mini High Speed Dome Camera with 10X optical zoom

This is a 4 inch mini high speed PTZ dome camera with a 10x optical zoom...

Product Code: WC-072-000

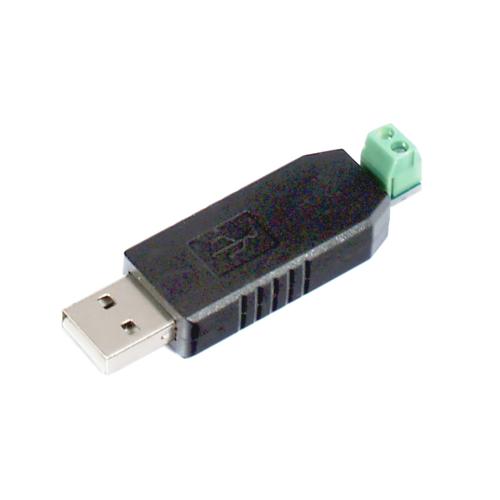

USB to RS485 Converter
USB to RS485 Converter

Our USB to TTL converter provides two way serial communications signal conversion between the TTL (T..

Product Code: MCU-036-100

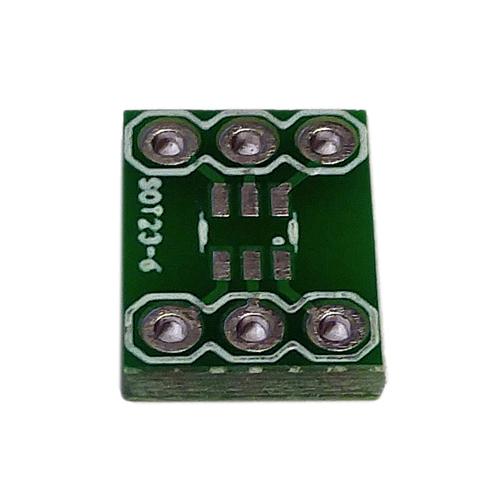

SOT23 DIP Breakout Board - ON SALE
