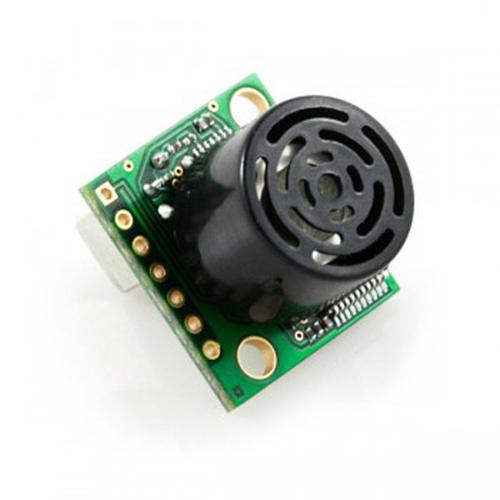

XL-MaxSonar EZ/AE 1300 High Power Output Ultrasonic Range Finder
Specifications
- 3.3V-5V
- Controlled beam angle
- 1 cm resolution
- RoHS compliant
- Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
- Virtually no dead zone, objects closer than 25 cm range as 25 cm
- Operates from 3.3-5.5V
- Operational Temperature from 0˚C to +65˚C (32˚F to +149˚F)
- 200,000+ Hours Mean Time Between Failure
- Maximum range of 765 cm (300 inches)
Documenation and Support
The XL MaxSonar EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.The high-output acoustic power, combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis and real-time noise rejection algorithms, results in virtually noise-free distance readings.
XL-MaxSonar EZ/AE 1300 High Power Output Ultrasonic Range Finder
- Product Code: TS-074-1300
- Brand: MaxBotix
- MPN: MB1300
- Availability: Discontinued
