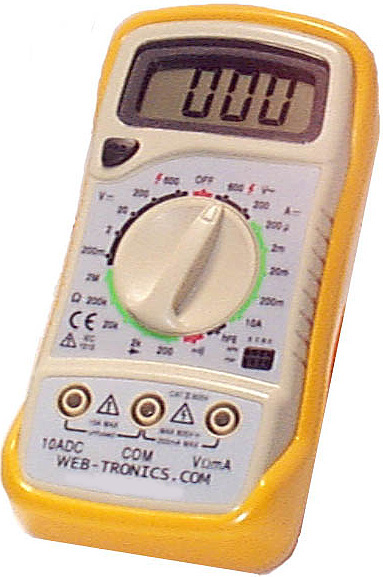

GENERAL
Tests: DC Voltage/ DC Current/AC Voltage/Diode & Continuity
(audible)/Resistance & Transistor hFE
Display: 3.5 digits, 7 segment, 15mm high LCD
Data Hold: Freezes the last reading if this button is pushed. Pushing
the button again will release data hold
"10A" Jack for Red test lead.
"COM" Jack for black test lead
"V, ohms, mA" for red test lead when testing voltage, resistance &
current (except 10A) measurements
Maximum Voltage Between Terminals & earth ground: CAT II, 600V
Fuse Protection:200mA/250V
Power: 9V battery (NEDA 1604 or 6F22)
Display: LCD, 1999 counts, updates 2-3/sec.
Measuring Method: Dual-slope integration A/D converter
Over range Indication: Only figure "1" will appear on the display
Polarity Indication:"-" displayed for negative polarity
Operating Environment: 0 to 40 deg C (storage, 10-50 deg C)
Dimensions: 138mm tall, 69 mm wide, 31mm deep (5.5" x 2.5" x 1.25")
Weight: Approx 170g
Ships with test leads & Rubber Protective Holster
DC VOLTAGE
|
Range
|
Resolution
|
Accuracy
|
|
200mV
|
100μV
|
�0.5% of rdg � 2 digits
|
|
2V
|
1mV
|
�0.5% of rdg � 2 digits
|
|
20V
|
10mV
|
�0.5% of rdg � 2 digits
|
|
200V
|
100mV
|
�0.5% of rdg � 2 digits
|
|
600V
|
1V
|
�0.8% of rdg � 2 digits
|
Overload Protection: 250V rms. For 200mV range and 600V dc or rms. ac for
other ranges
DC Current
|
Range
|
Resolution
|
Accuracy
|
|
200μA
|
0.1μA
|
�1% of rdg � 2 digits
|
|
2mA
|
1μA
|
�0.5% of rdg � 2 digits
|
|
20mA
|
10μA
|
�0.5% of rdg � 2 digits
|
|
200mA
|
100μA
|
�1.5% of rdg � 2 digits
|
|
10A
|
10mA
|
�3% of rdg � 2 digits
|
Overload Protection: F 200mA/250V fuse (10A range unfused)
AC Voltage
|
Range
|
Resolution
|
Accuracy
|
|
200V
|
100mV
|
�1.2% of rdg � 10 digits
|
|
600V
|
1V
|
�1.2% of rdg � 2 digits
|
Overload Protection: 600V dc or rms. as for all ranges. Frequency range:
40Hz to 400Hz. Response: average responding, calibrated in rms. of a sine
wave.
Diode & Continuity
|
Range
|
Description
|
|
speaker pic
|
If continuity exists (about less than 1.5kΩ), built in buzzer will
sound.
|
|
pic here
|
Show the approx forward voltage drop of the diode
|
Overload Protection 250Vdc or rms. ac.
Resistance
|
Range
|
Resolution
|
Accuracy
|
|
200Ω
|
.01Ω
|
�0.8% of rdg � 3 digits
|
|
2kΩ
|
1Ω
|
�0.8% of rdg � 2 digits
|
|
20kΩ
|
10Ω
|
�0.8% of rdg � 2 digits
|
|
200kΩ
|
100Ω
|
�0.8% of rdg � 2 digits
|
|
20MΩ
|
1kΩ
|
�1.0% of rdg � 2 digits
|
Maximum Open Circuit Voltage: 3.2V Overload Protection:250V dc or rms. as
for all changes.
Transistor hFE Test
|
Range
|
Test Range
|
Test Current
|
Test Voltage
|
|
NPN & PNP
|
0-1000
|
Ib=10μA
|
Vce=3V
|
|
