Trekker Fire Fighting Fan System

�

Description:

�

Click on images for larger views

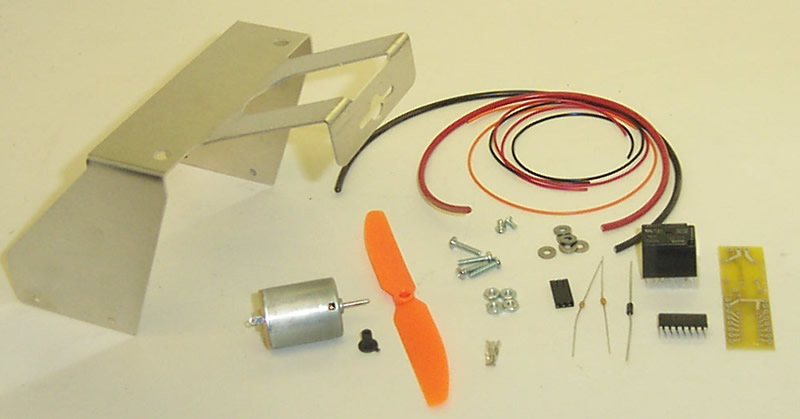

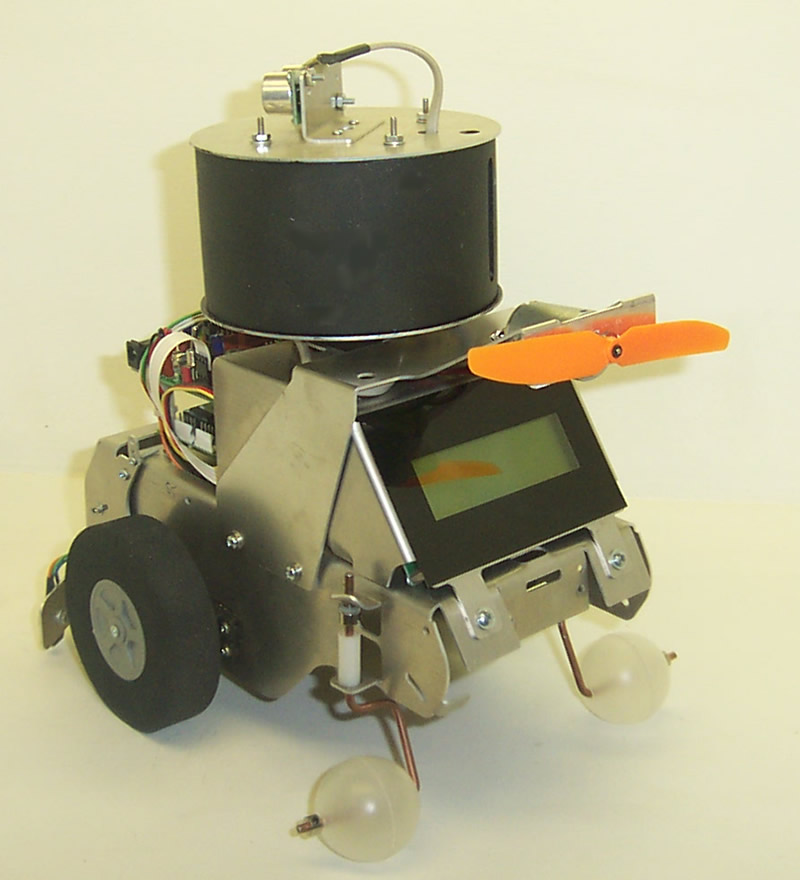

Parts for Fan System	Fan System installed on a Trekker

�

This system enables the Trekker to blow out a flame in fire fighting contests, such as the one at Trinity College.� It will consist of a Bracket, an electric motor with a fan blade, wire, connector to attach to a servo plug on the OOPic II Expansion Board, and a single relay high current driver to switch the fan on from an OOPic TTL output.� It is recommended that you get the 7.2 NiCad battery pack to go with this.�

�

Includes:

Qty	Item
1	�CAPACITOR, 0.1UF
1	�MOTOR, 7.2V DC, 280
1	�PROPELLER, 5", PUSH ON
1	�ALUMINUM, BRACKET - FAN HOLDER
1	�PROPELLER INSERTS/FASTENER
3	�CRIMP TERMINALS, FEMALE
1	�FAN SYS WIRE SET FOR CONTROL AND POWER
1	�RECEPTACLE, 3POS
1	�7 Channel High Current TTL Driver with 1 Power 5V Relay

�

Shipping Weight:

lb(s) oz(s)

Additions:

Assembled - Add $32.00

In Stock:

Quantity:

Cost:

Purchase:

Assembly listed above is for this component only.� Assembly of components to other components is not part of the assembly price.� For assembly of components to other components see Trekker packages.

See Terms and Conditions of Sale for shipping options/costs and other important information.

�
