HRUSB-MaxSonar-EZ1 Sensor Line

The HRUSB‑MaxSonar‑EZ1 is a great choice for use where sensitivity is needed along with side object rejection. The HRUSB‑MaxSonar‑EZ1 is a good, low-cost starting place for a customer not sure of which HRUSB‑MaxSonar‑EZ sensor to use.

Component Overview

USB interface
Resolution of 1 mm
Multi-sensor operation
~250mS between range readings
Maximum Range of 5000 mm (196 inches)
42kHz Ultrasonic sensor measures distance to objects
RoHS compliant
Virtually no sensor dead zone, objects closer than 30 cm range as 30 cm
Small, light weight module
Designed for easy integration into your project or product
Great starting point for users unsure of which sensor to use

Product Documentation

MB1413 Datasheet........................... HRUSB-MaxSonar-EZ1 Datasheet
Terminal Software............................ Terminal.zip
HRUSB-MaxSonar-EZ Configuration..... Terminal Configuration
High Resolution Pictures.....................High Resolution Pictures.zip
Ultrasonic Sensor Selection Guide........ Ultrasonic Sensor Selection Guide

Related Items

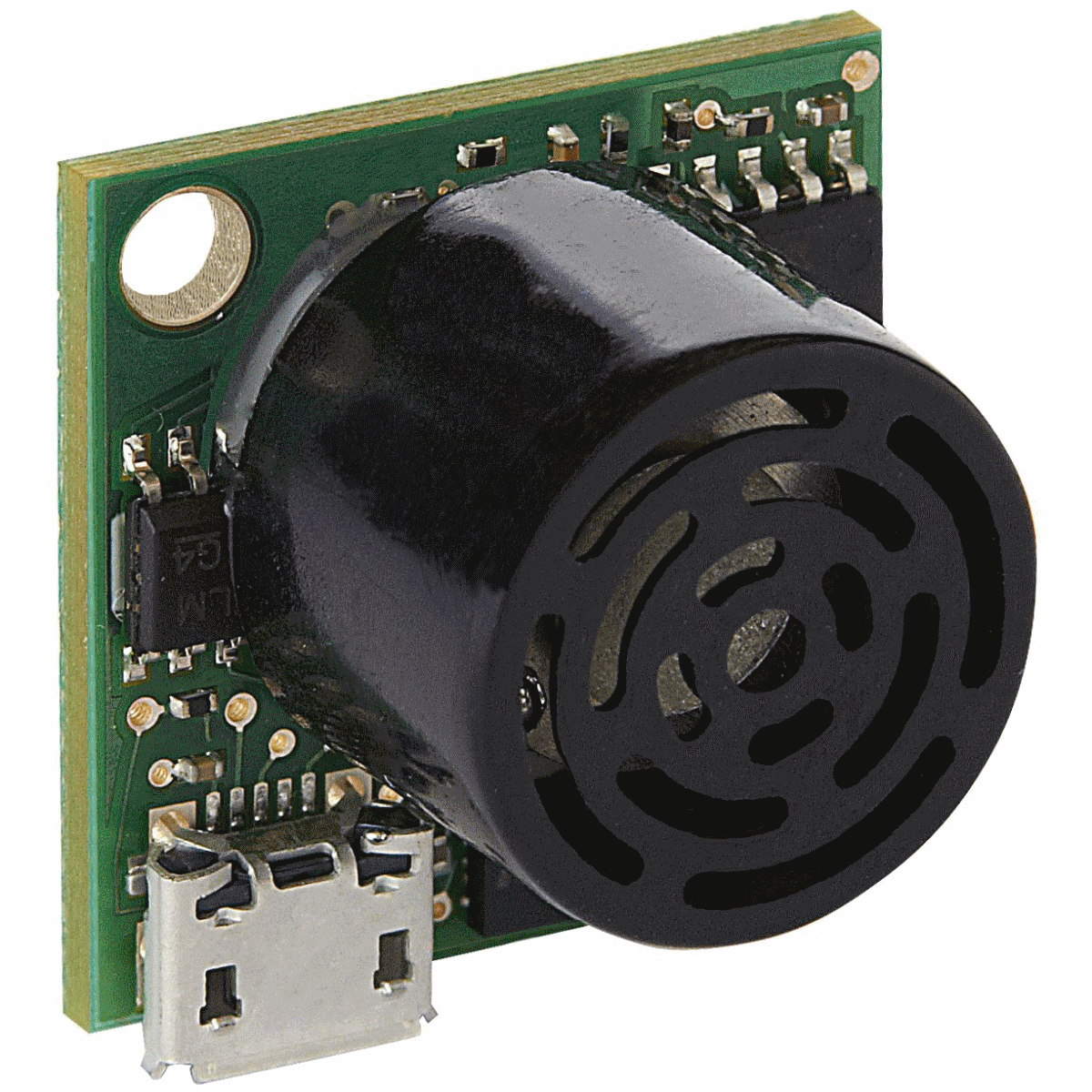

HRUSB-MaxSonar-EZ0 Sensor Line
