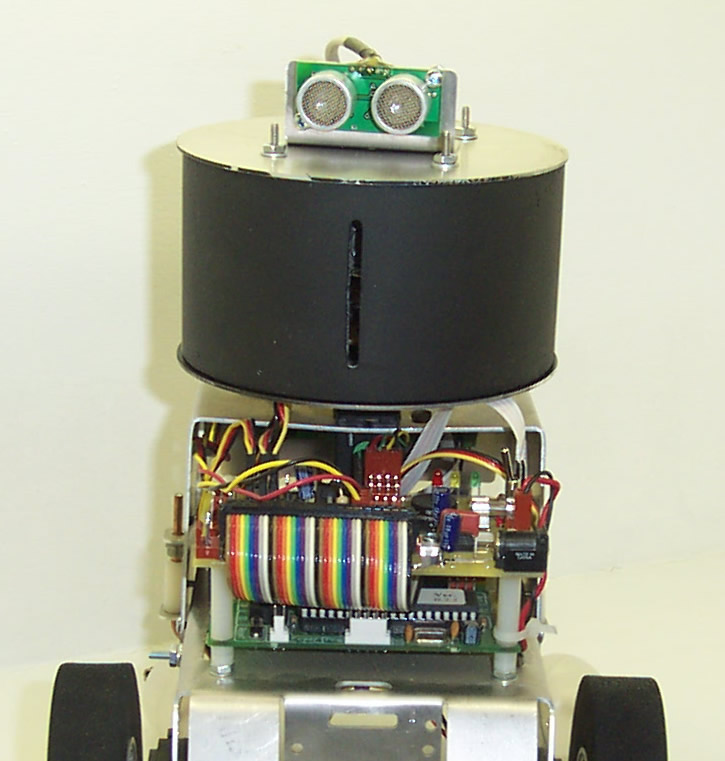

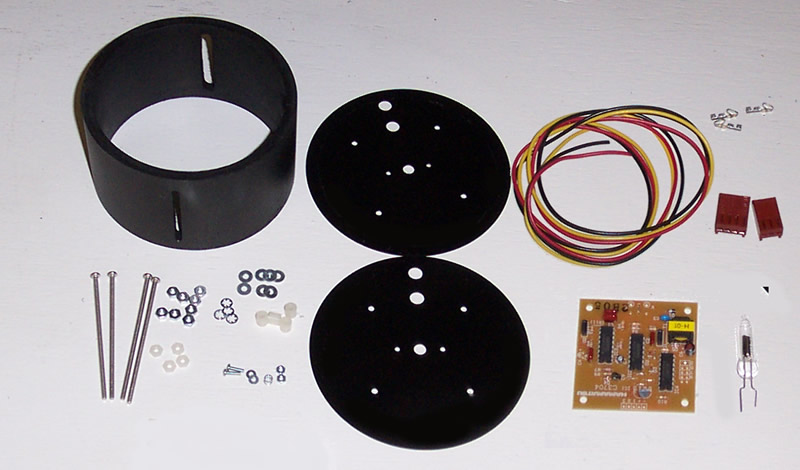

Deluxe UVTRON bracket and sensor installed on a trekker with an ultrasonic sensor mounted on a Single Scanner Servo Arm Bracket	Loose parts of the Trekker Deluxe UVTRON package

�

This package consists of the deluxe fire seeker bracket and mask with the UVTron sensor kit.� It also includes the necessary receptacles and wire to attach the sensor to the OOPic II Expansion Board.� v1.x expansion boards and OOPic-R Expansion Board, utilizing one of the ultrasonic plugs (4-pin receptacle).� v2.x OOPic II expansion boards have a specific plug connection for the UVTron (3-Pin receptacle).�

The sensor will mount to a standard servo arm and is used to pan looking for flame.� With this sensor package the sensor can locate the flame.� A single or double servo sensor bracket can me mounted to the top of the UVTron bracket housing so an IR and/or Ultrasonic range sensor can be used in parallel with the fire seeking.�� If using the scanner for a Trekker and�you already have a Trekker sweeping sensor, this kit will interface with it.� The deluxe scanner can only be used with a single top scanner bracket due to its size.

Installation instructions are included in the Trekker manual and on our UVTron support page.� Example code is included on the Trekker download page and our general download page.


�

Assembled with 4-pin receptacle (Add $18.50)
