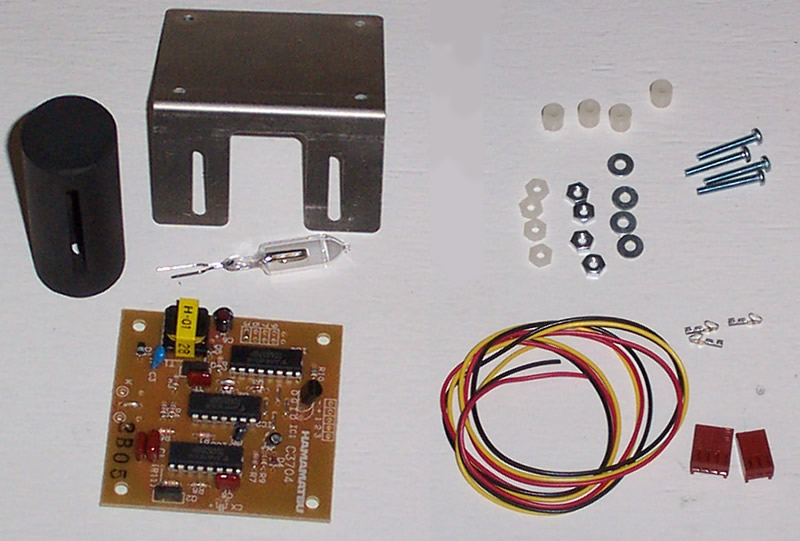

Standard UVTRON bracket and sensor installed on a Trekker with an ultrasonic sensor mounted on a Single Scanner Servo Arm Bracket	Loose parts of the Trekker Deluxe UVTRON package

�

This package consists of the Standard UVTRON bracket, standard mask and the UVTron sensor kit.�� It also includes the necessary receptacles and wire to attach the sensor to the OOPic II Expansion Board.� v1.x expansion boards and OOPic-R Expansion Board, utilizing one of the ultrasonic plugs (4-pin receptacle).� v2.x OOPic II expansion boards have a specific plug connection for the UVTron (3-Pin receptacle).�

The sensor will mount to either a single servo sensor bracket or a dual bracket.� With this sensor package the sensor can locate the flame.� The single or double servo sensor bracket can also be used to mount an IR and/or Ultrasonic range sensor.�� If using the scanner for a Trekker and�you already have a Trekker sweeping sensor, this kit will interface with it.�

Installation instructions are included in the Trekker manual and on our UVTron support page.� Example code is included on the Trekker download page and our general download page.


�

Assembled with 4-pin receptacle (Add $14.50)
